Multiplex Communication System (CAN) (TMC Made): Notes

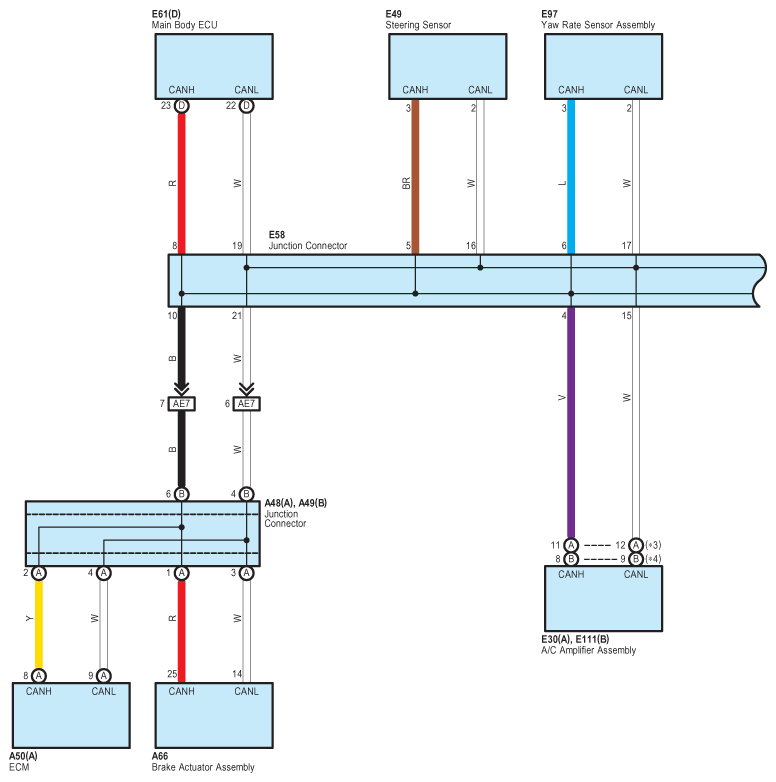

Fig 1: Multiplex Communication System CAN System Wiring Diagram (TMC Made; 1 Of 2)
G09106445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

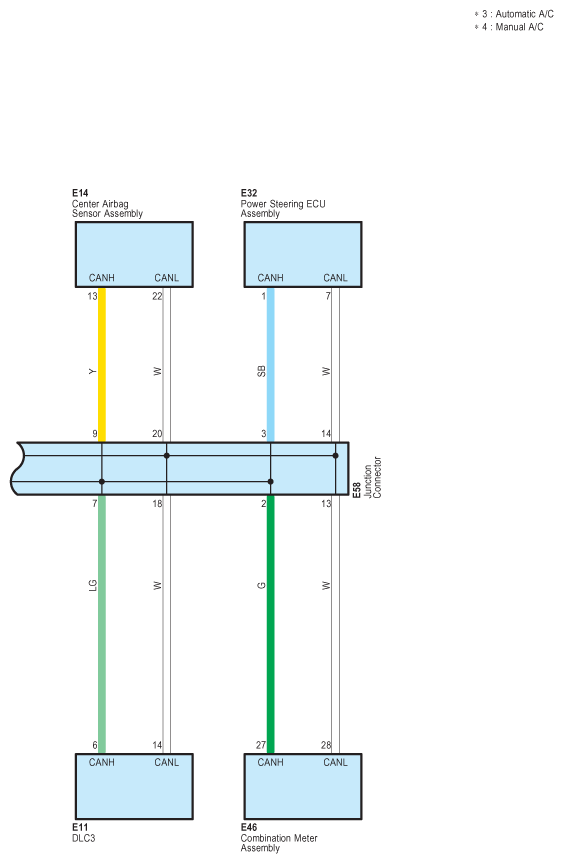

Fig 2: Multiplex Communication System CAN System Wiring Diagram (TMC Made; 2 Of 2)
G09106446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
