Key Reminder (w/o Smart Key System) (Except TMC Made): Notes

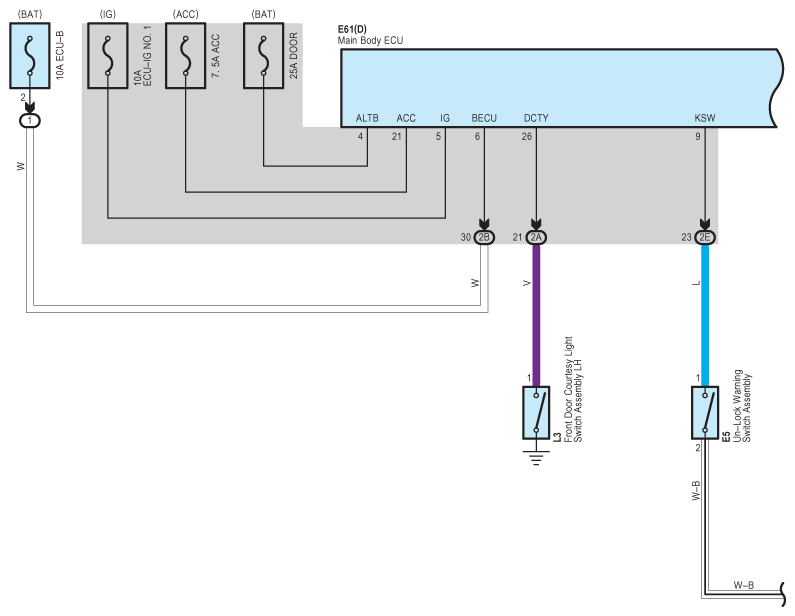

Fig 1: Key Reminder W/O Smart Key System (Except TMC Made; 1 Of 2)
G09106613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

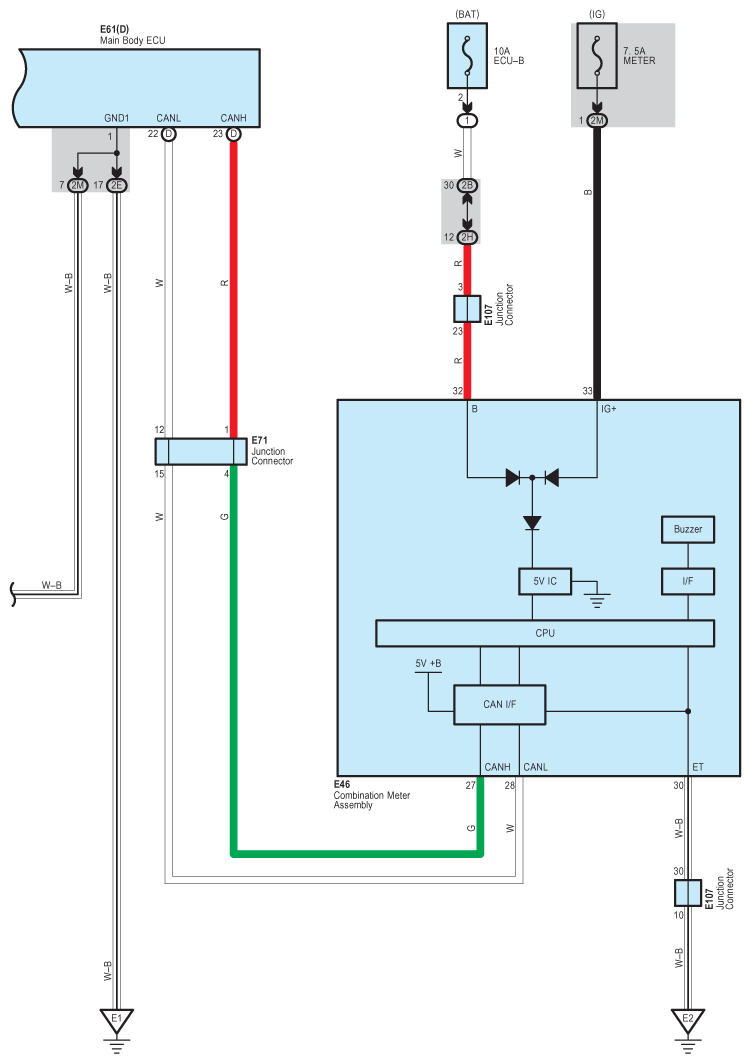

Fig 2: Key Reminder W/O Smart Key System (Except TMC Made; 2 Of 2)
G09106614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
