Horn (TMC Made): Notes

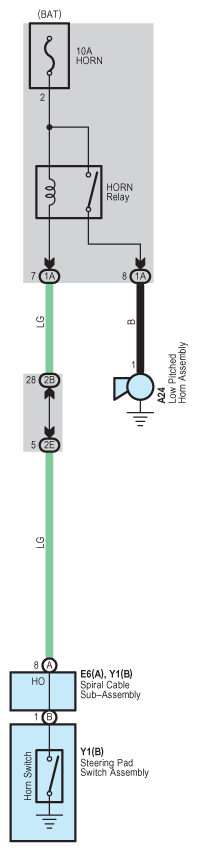

Fig 1: Horn System Wiring Diagram (TMC Made)

G09106518

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
