EPS (TMC Made): Notes

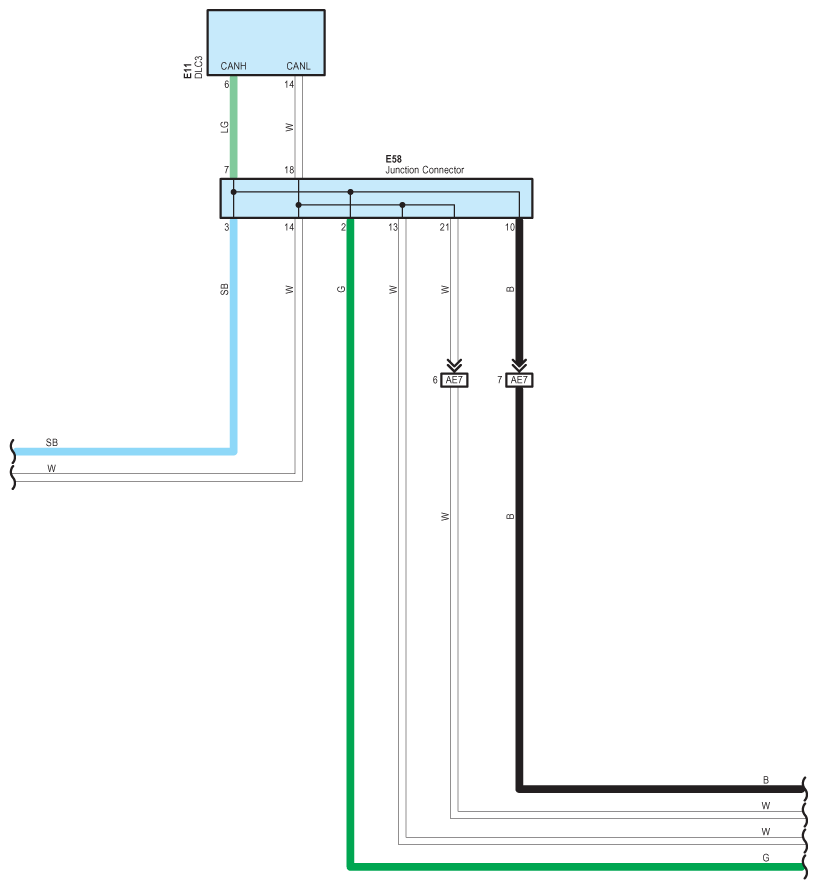

Fig 1: EPS System Wiring Diagram (TMC Made; 1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

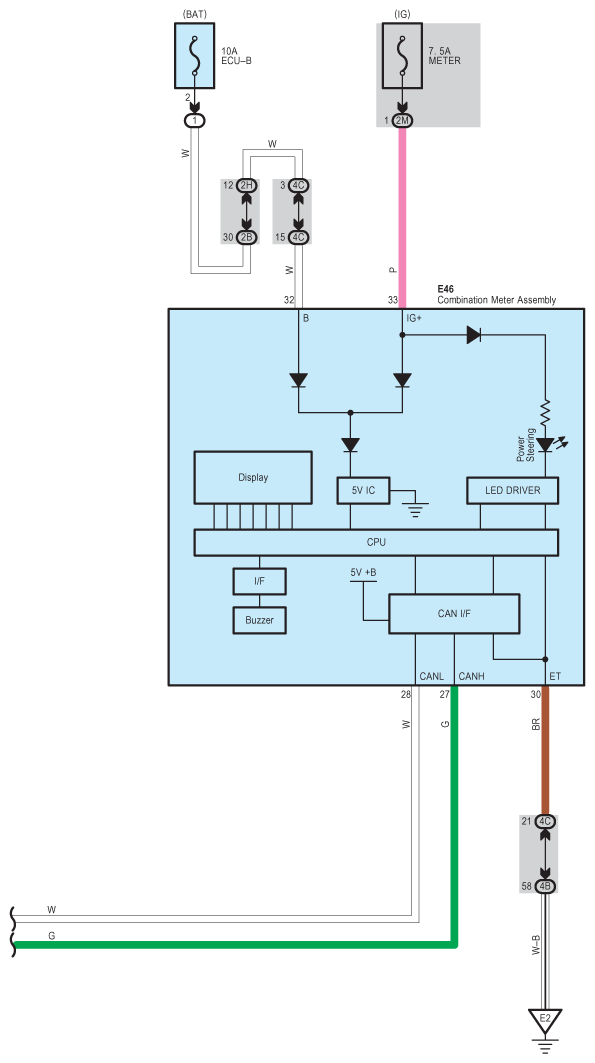

Fig 2: EPS System Wiring Diagram (TMC Made; 2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

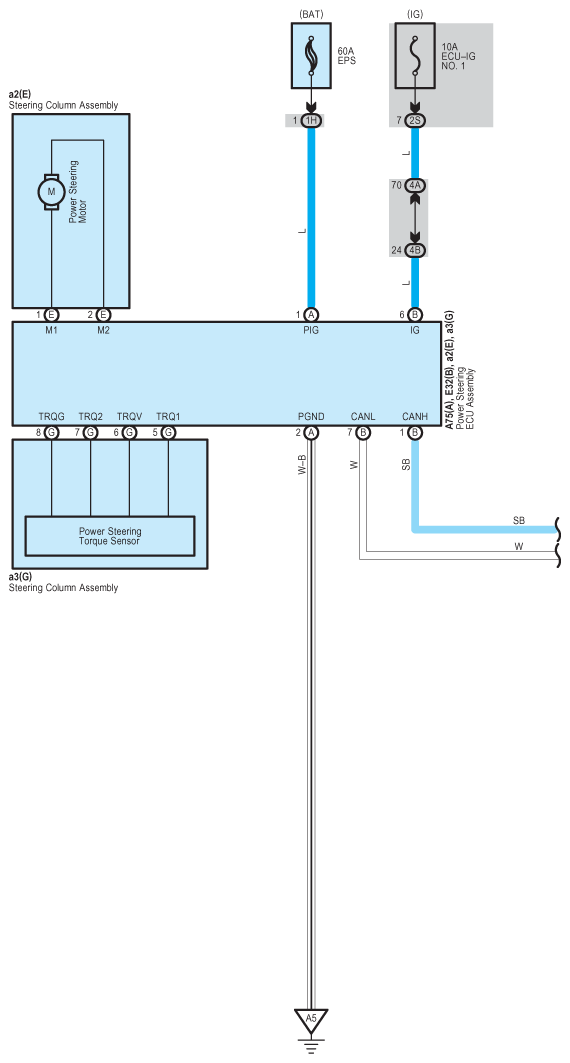

Fig 3: EPS System Wiring Diagram (TMC Made; 3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

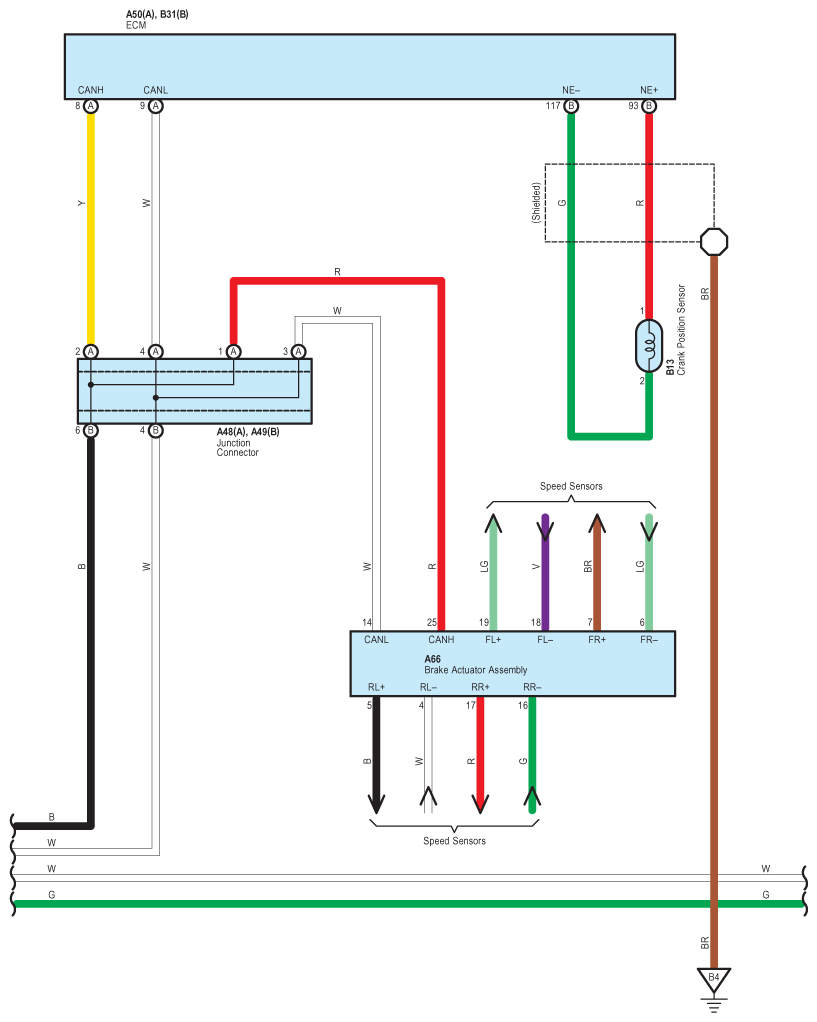

Fig 4: EPS System Wiring Diagram (TMC Made; 4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
