Remote Control Mirror (w/o Seat Position Memory): Notes

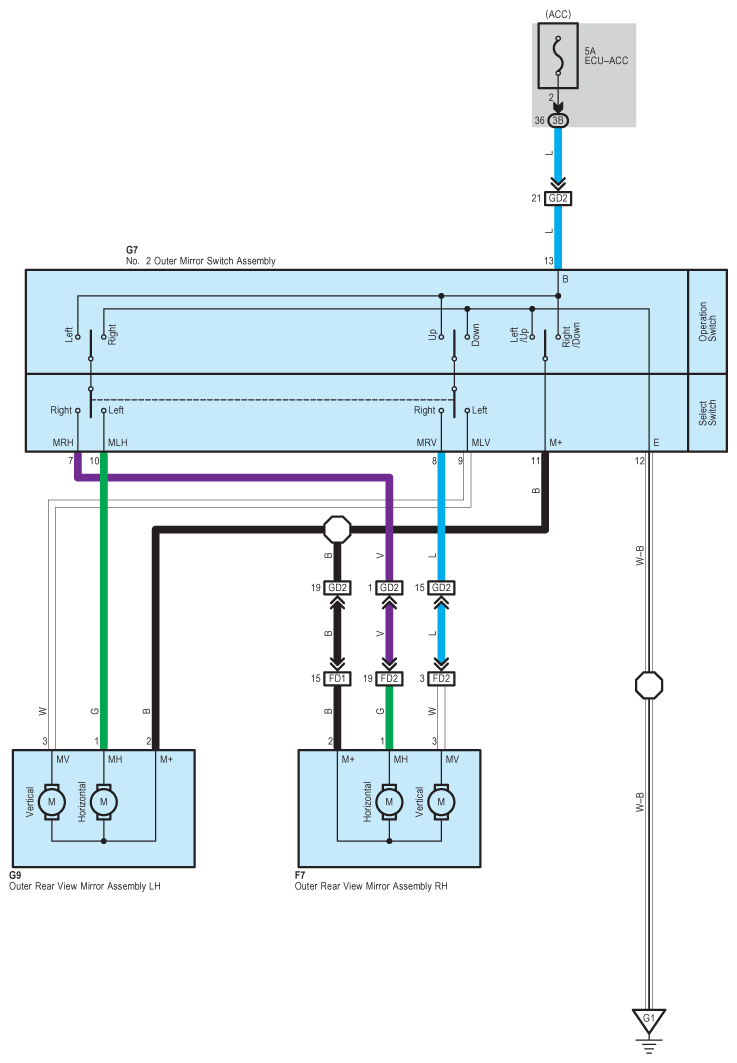

Fig 1: Remote Control Mirror (W/O Seat Position Memory) System Wiring Diagram

G09095530

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
