Rear Sunshade: Notes

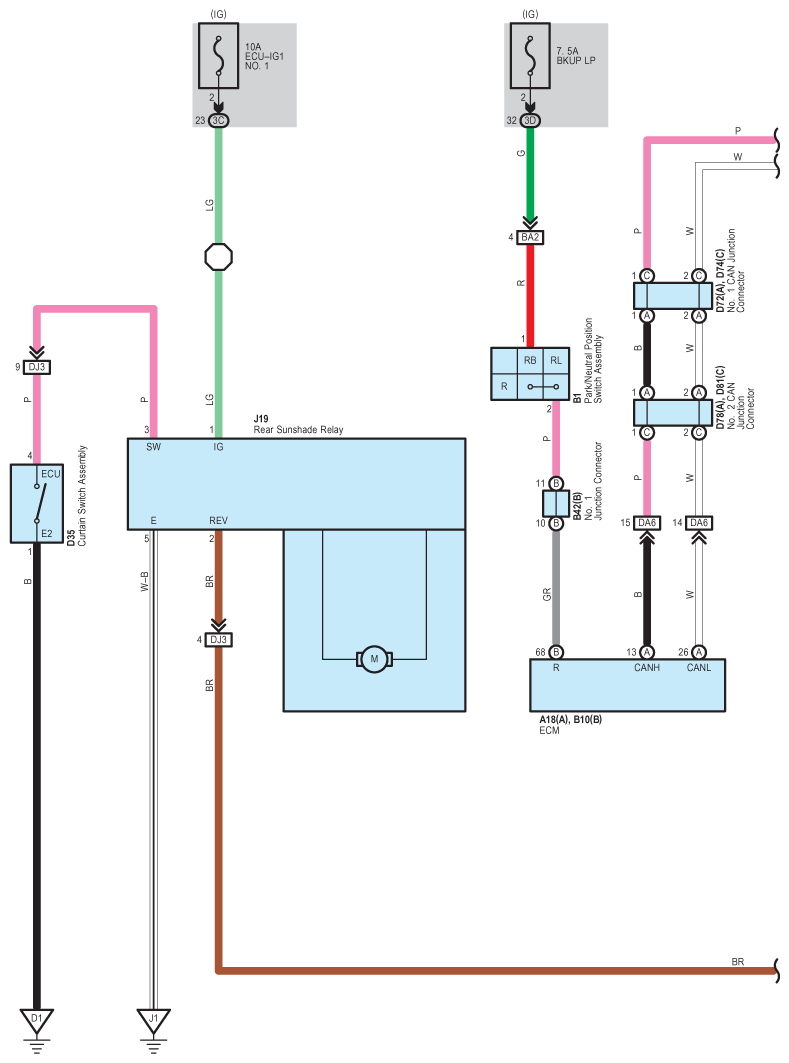

Fig 1: Rear Sunshade System Wiring Diagram (1 Of 2)
G09095536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

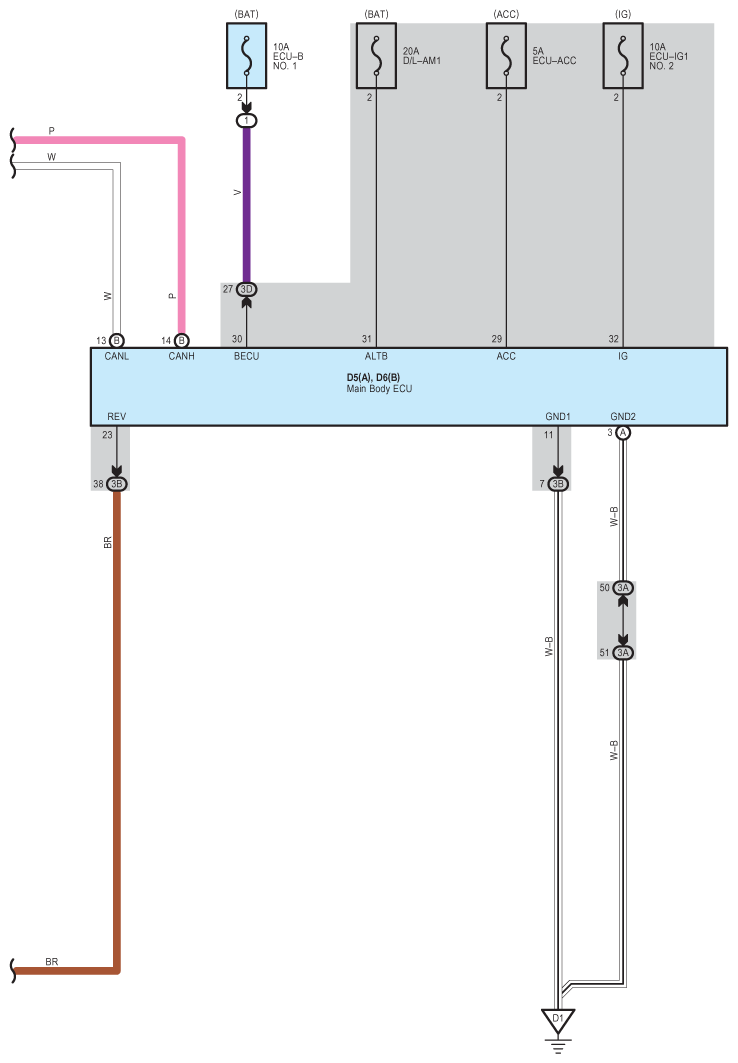

Fig 2: Rear Sunshade System Wiring Diagram (2 Of 2)
G09095537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
