Ignition Coil And Spark Plug: Components: Illustration

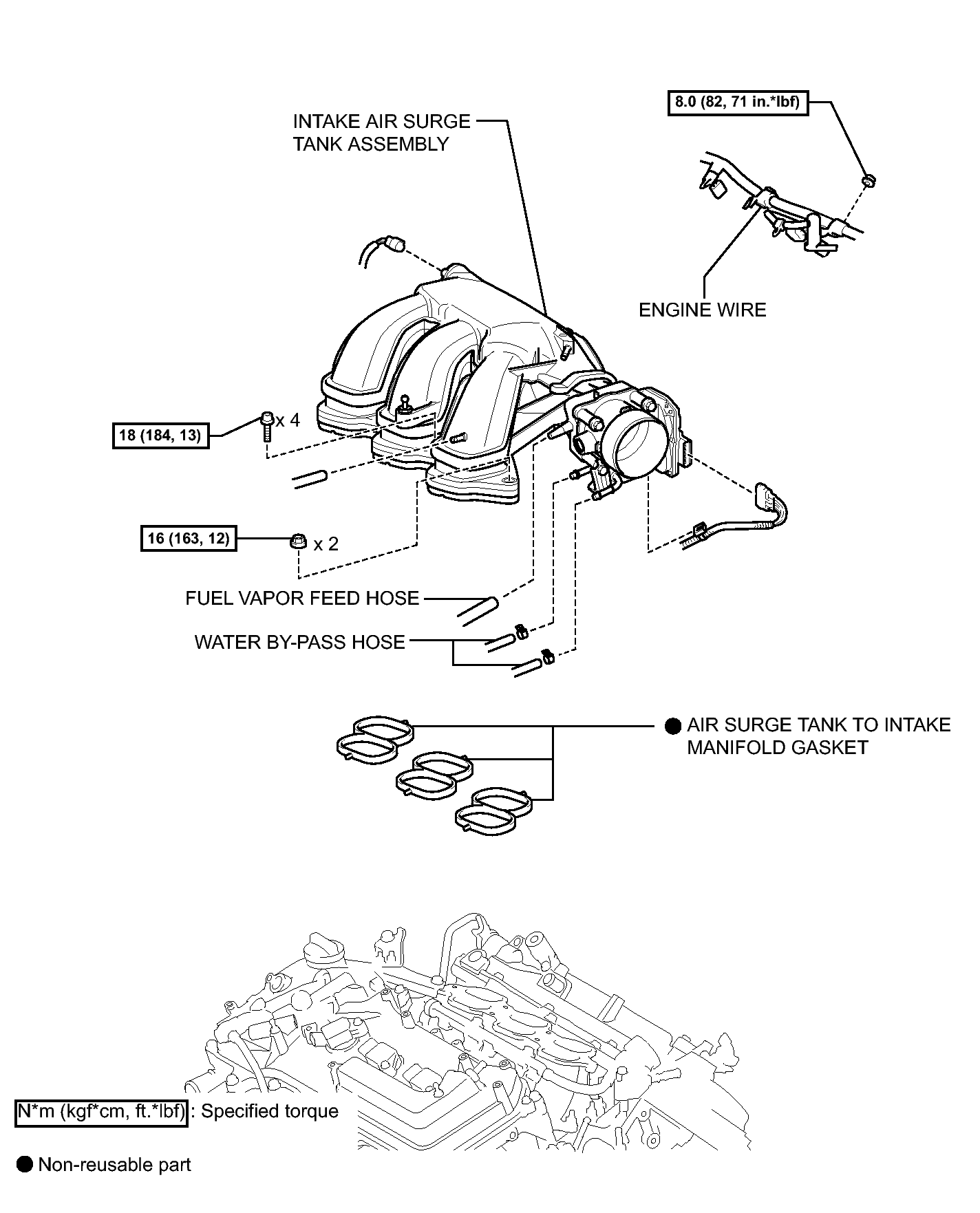

Fig 1: Identifying Ignition Coil & Spark Plug Replacement Components With Torque Specifications (1 Of 2)
GTY317582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

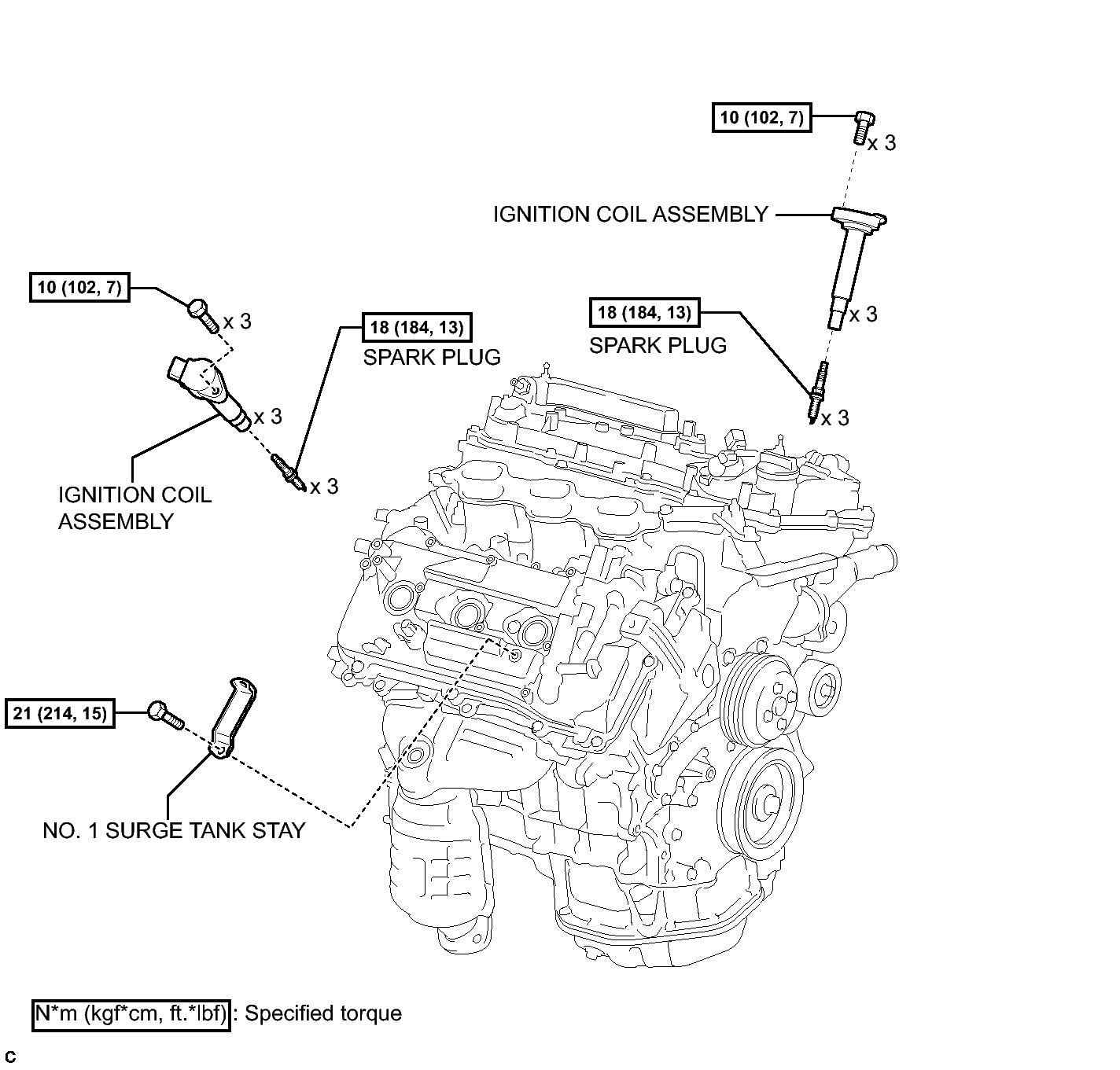

Fig 1: Identifying Ignition Coil & Spark Plug Replacement Components With Torque Specifications (2 Of 2)
GTY319169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
