Throttle Body: Components: Illustration

Fig 1: Throttle Body Replacement Components (1 Of 2)
GTY378122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

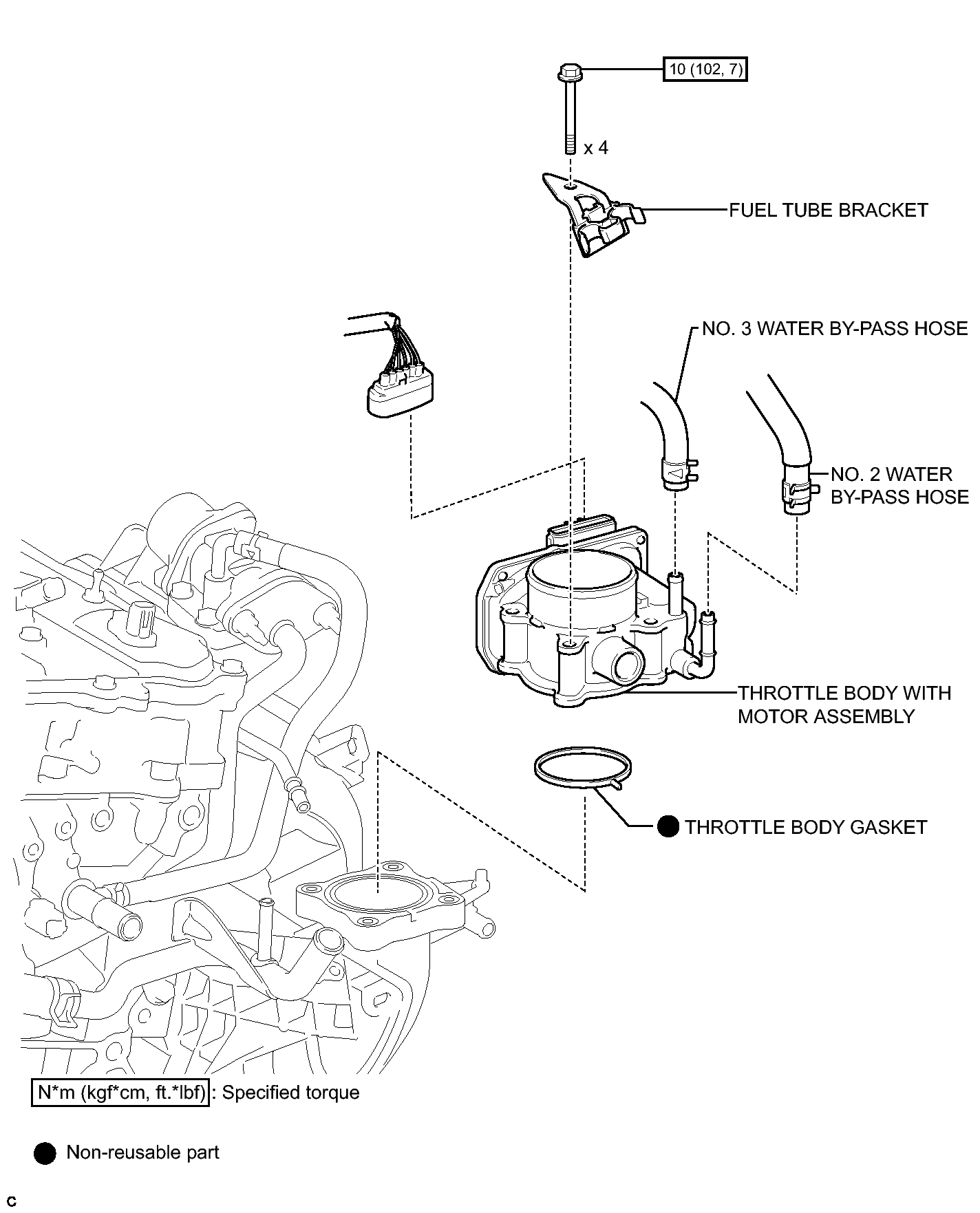

Fig 1: Throttle Body Replacement Components With Torque Specifications (2 Of 2)
GTY377176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
