Engine Coolant Temperature Sensor: Components: Illustration

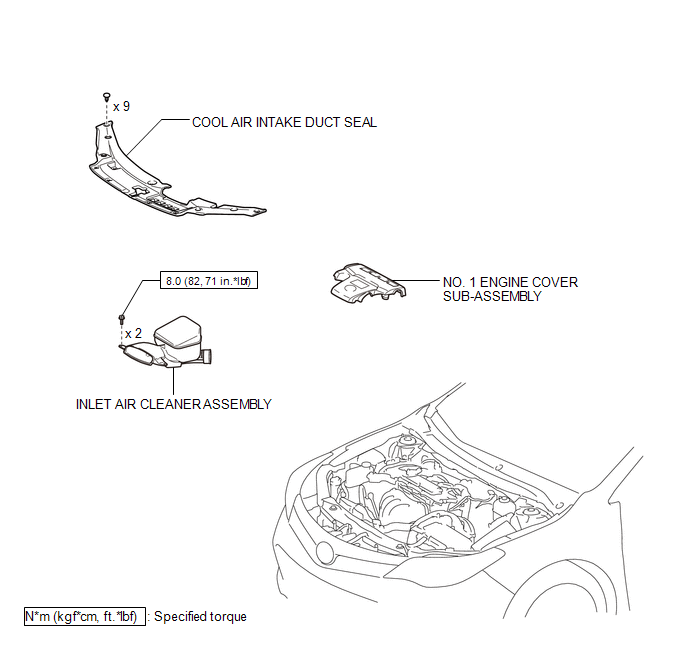

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY383536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

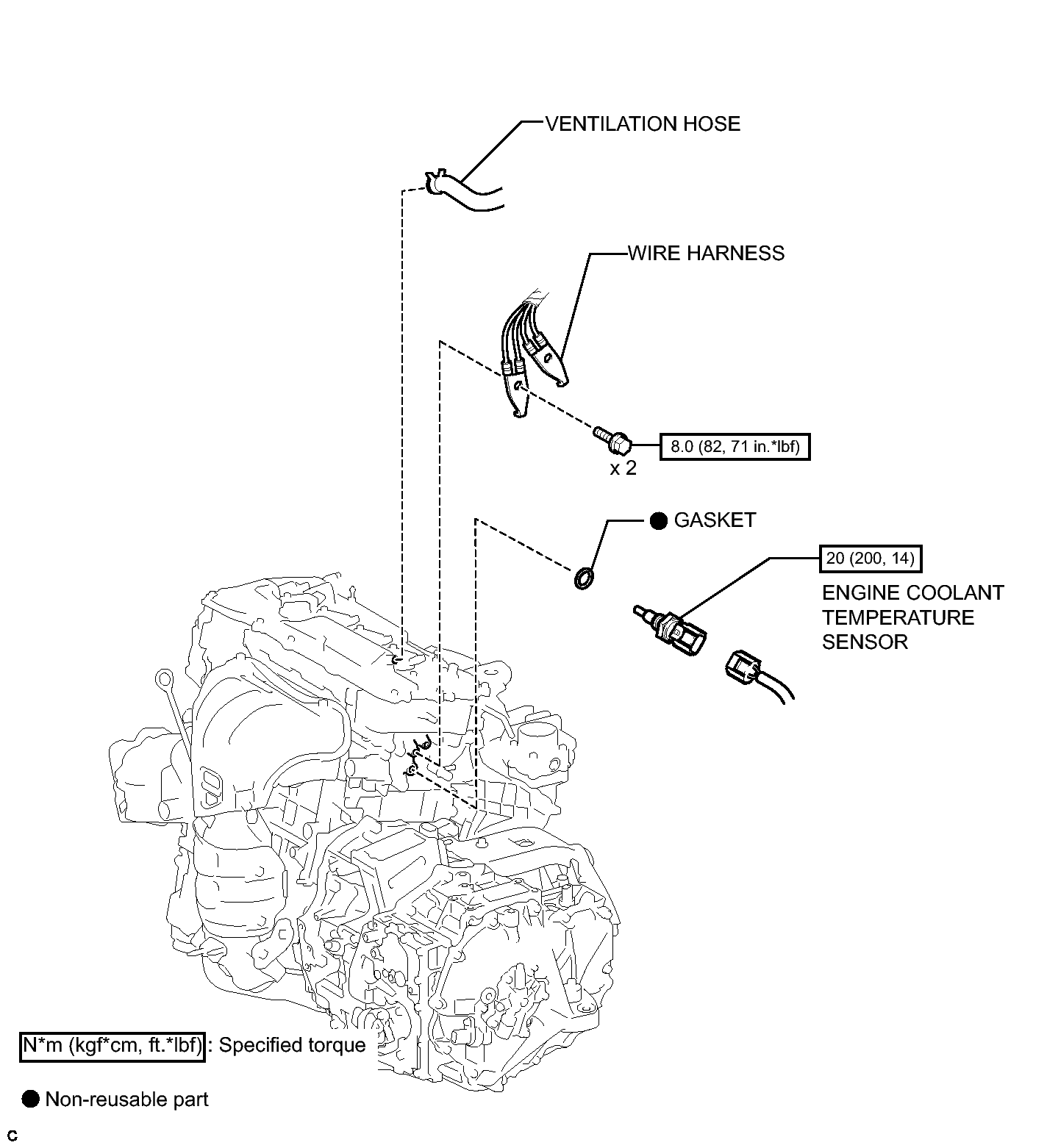

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY363784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
