Engine Control System (Service Information) (Hybrid): ECM: Components: Illustration

Fig 1: Identifying ECM Replacement Components (1 Of 2)
GTY383696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

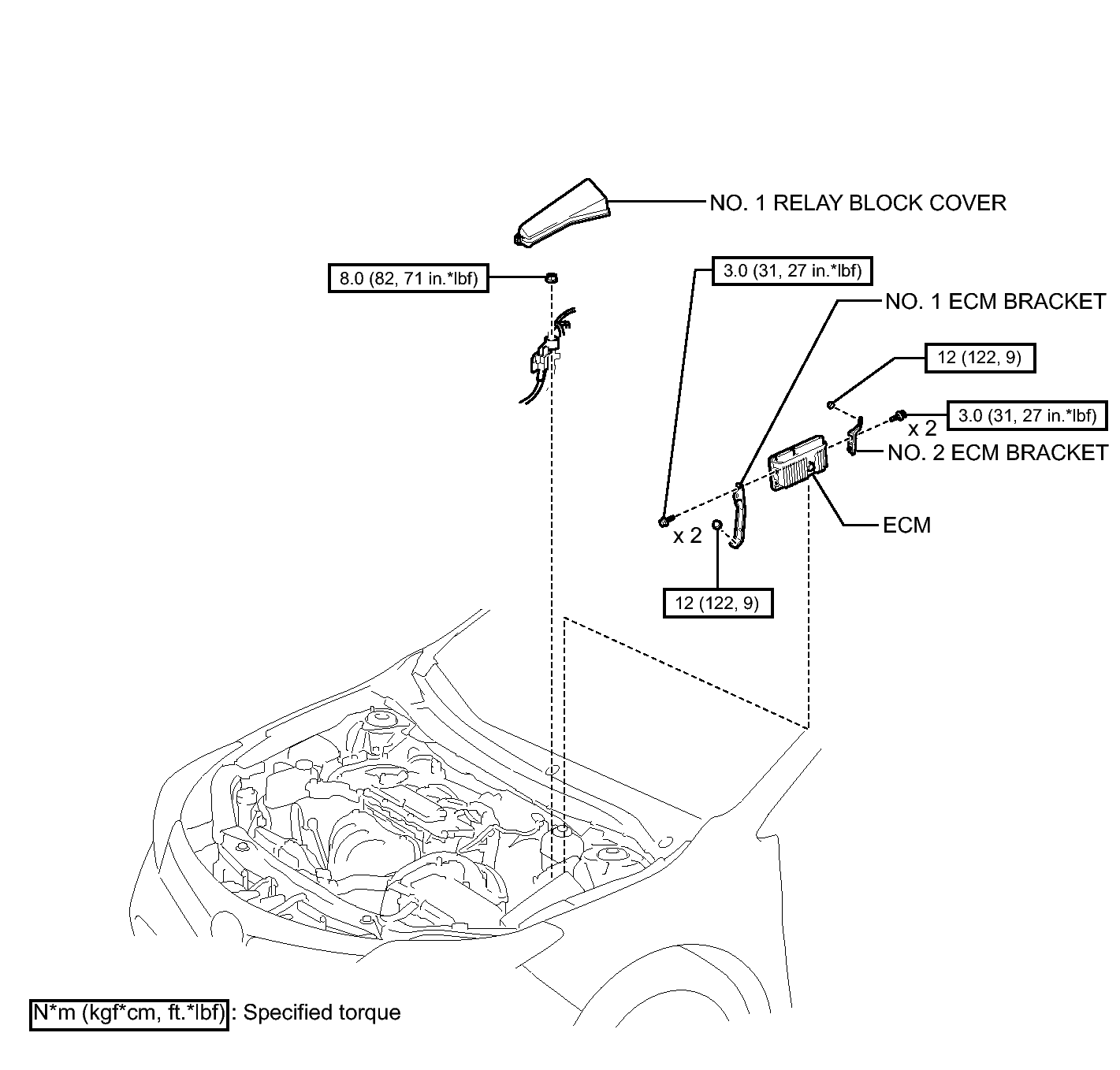

Fig 1: Identifying ECM Replacement Components With Torque Specifications (2 Of 2)
GTY367346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
