Fuel Injector: Removal: Removal

REMOVE INTAKE AIR SURGE TANK
1. Remove the intake air surge tank. Refer to REMOVAL .

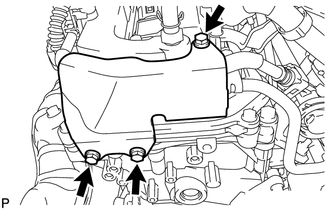

REMOVE REAR CYLINDER HEAD COVER
1. Remove the 3 bolts and cover.

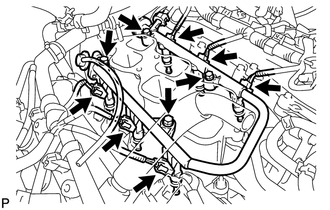

DISCONNECT NO. 1 FUEL PIPE SUB-ASSEMBLY
1. Disconnect the No. 1 fuel pipe sub-assembly. Refer to PRECAUTION .

  Fig 2: Identifying No. 1 Fuel Pipe Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY
1. Disconnect the No. 2 fuel pipe sub-assembly. Refer to PRECAUTION .

  Fig 3: Identifying No. 2 Fuel Pipe Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY
1. Disconnect the 6 fuel injector connectors.

  Fig 4: Identifying Fuel Delivery Pipe Sub-Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 bolts and fuel delivery pipe together with the 6 fuel injectors.
  NOTE:
  Be careful not to drop the injectors when removing the fuel delivery pipe.

REMOVE FUEL INJECTOR ASSEMBLY

Remove the 6 fuel injectors from the fuel delivery pipe.

Fig 5: Identifying Fuel Delivery Pipe & Fuel Injector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Fuel Delivery Pipe
*2	Fuel Injector
