Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
4WD (VF4BM)
>>
Notes
4WD (VF4BM): Notes

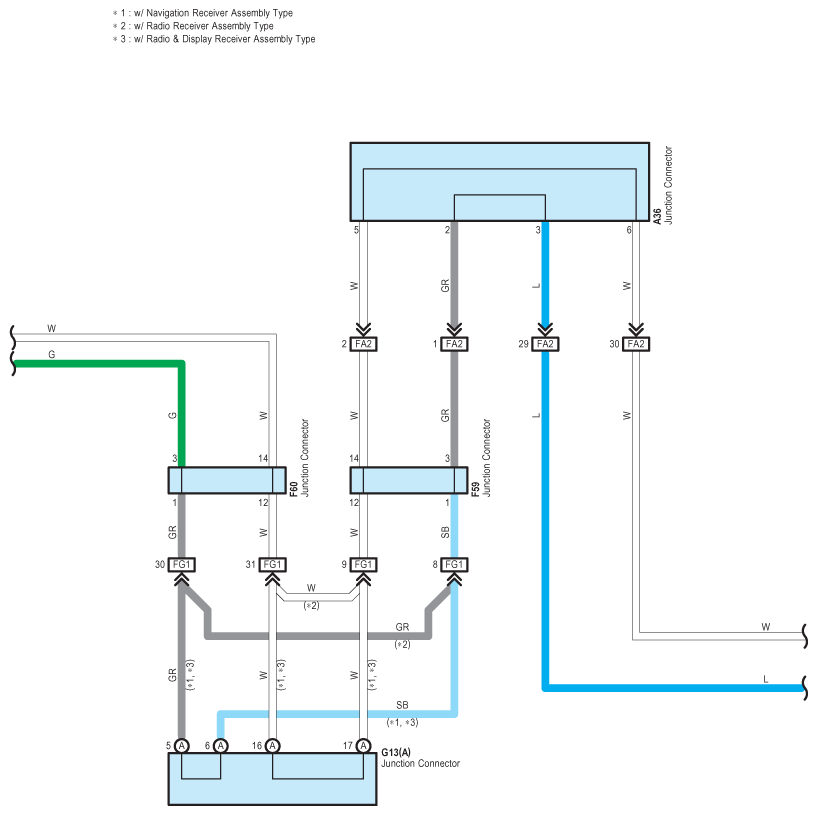

Fig 1: 4Wd (Vf4bm) - Circuit Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

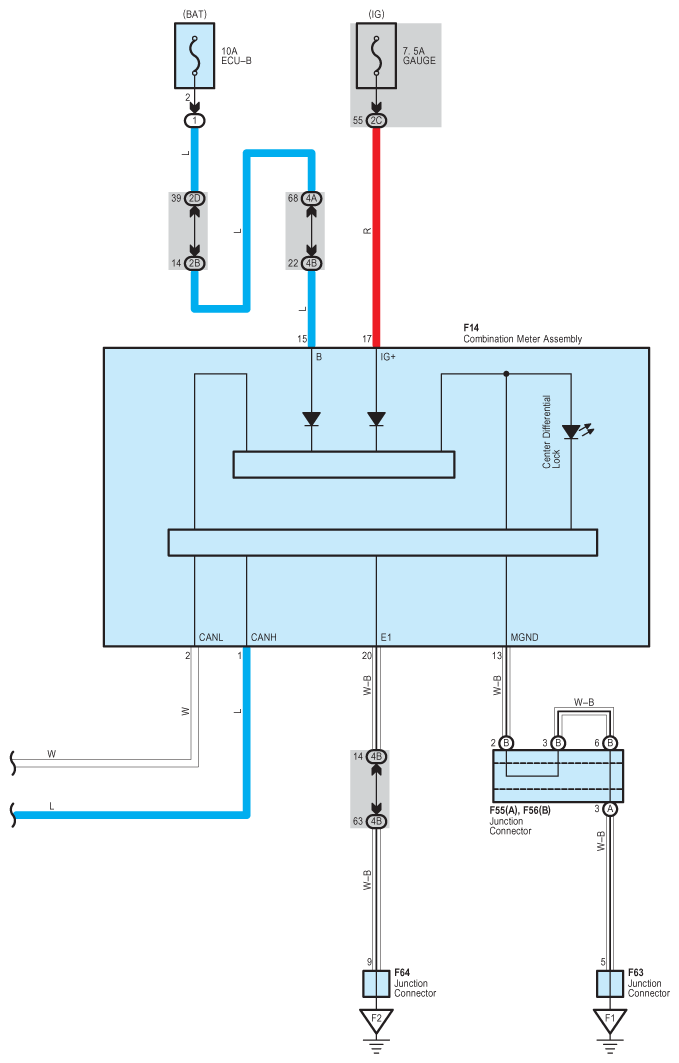

Fig 2: 4Wd (Vf4bm) - Circuit Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

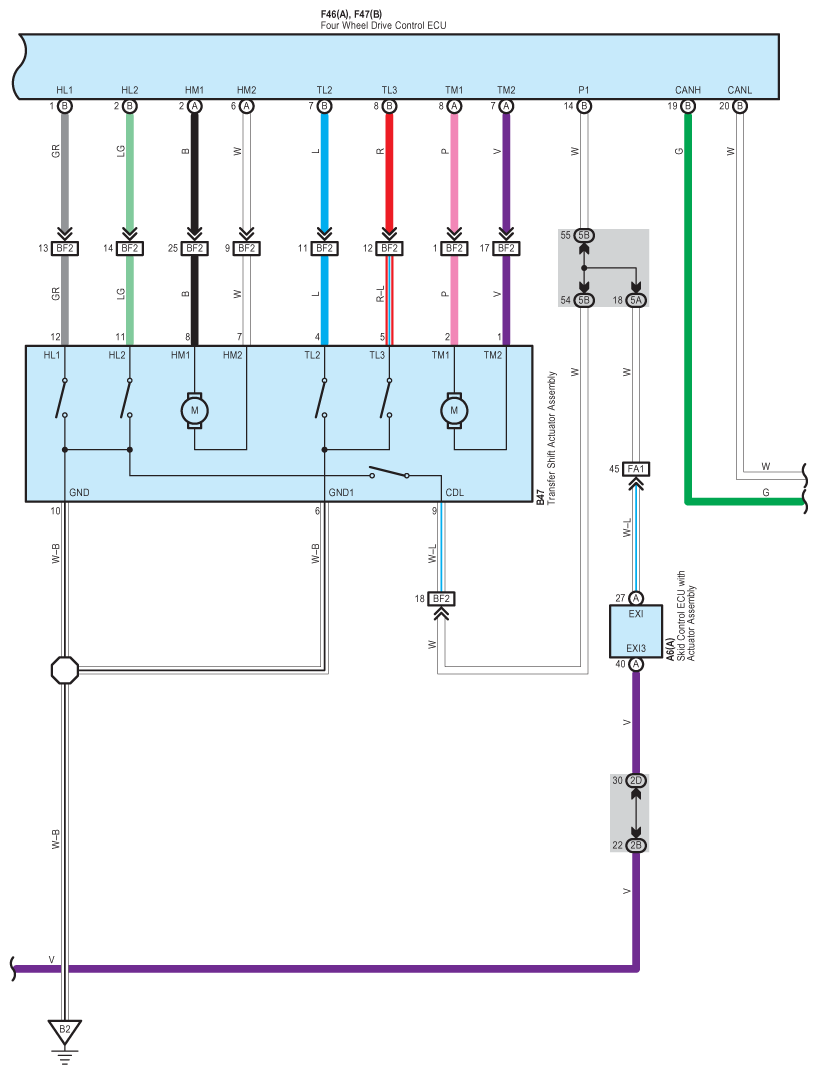

Fig 3: 4Wd (Vf4bm) - Circuit Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

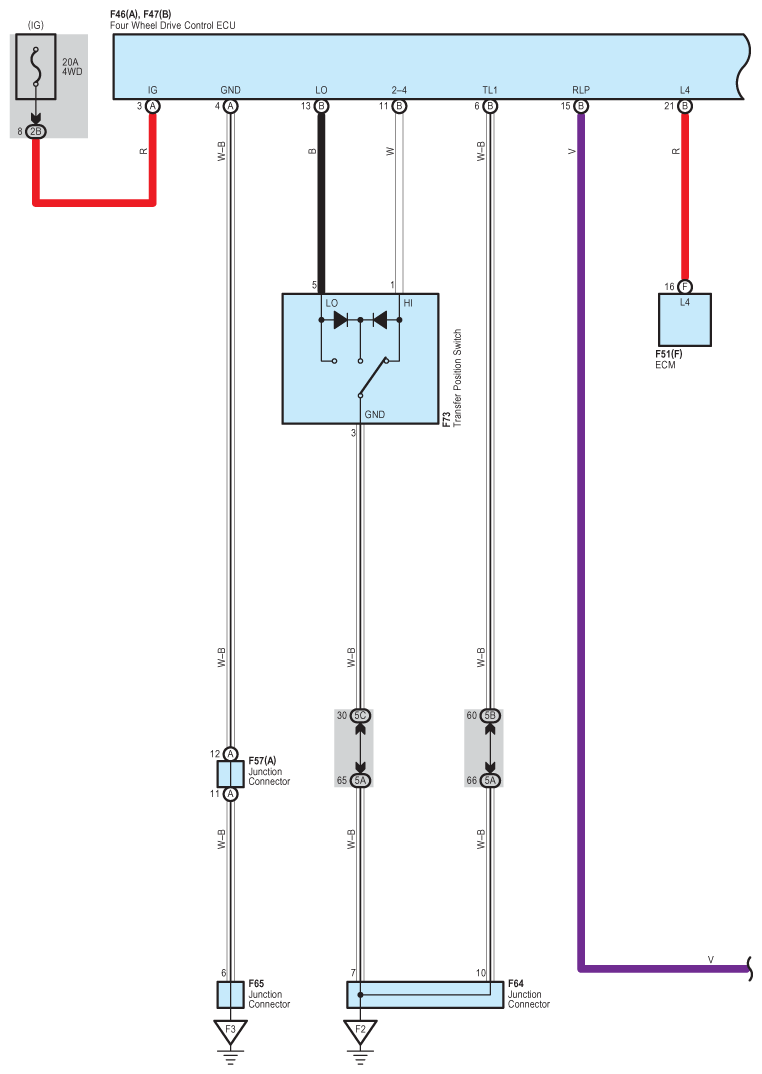

Fig 4: 4Wd (Vf4bm) - Circuit Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
