VSC Off Switch: Removal: Removal

REMOVE DRIVE MONITOR SWITCH See step 1
REMOVE MAP LIGHT ASSEMBLY See step 2
REMOVE VSC OFF SWITCH
1. Disconnect the 2 connectors.

  Fig 1: Identifying Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, detach the 2 claws and remove the VSC OFF switch from the map light assembly.

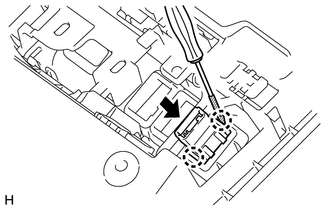

  Fig 2: Removing VSC OFF Switch From Map Light Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
