Front Window Deicer: Notes

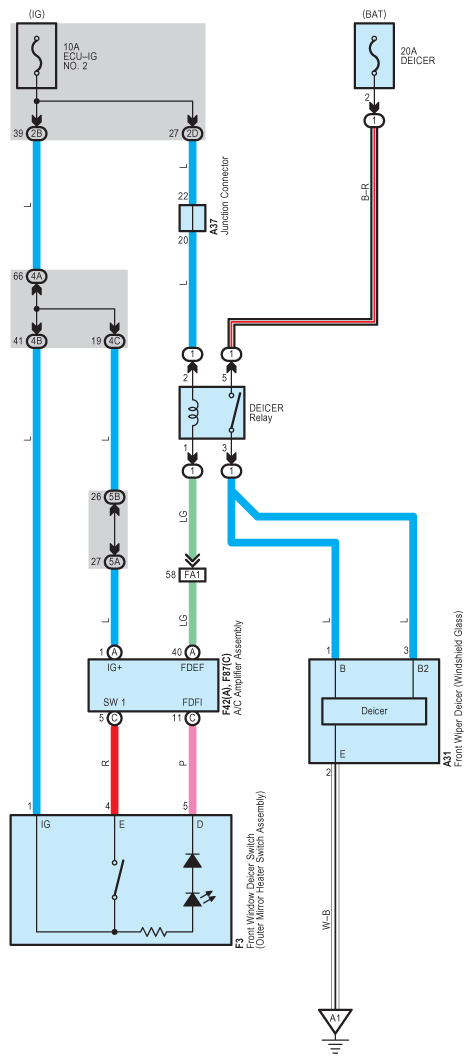

Fig 1: Front Window Deicer - Circuit Diagram

G08950383

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
