Engine Immobilizer System (w/o Smart Key System): Notes

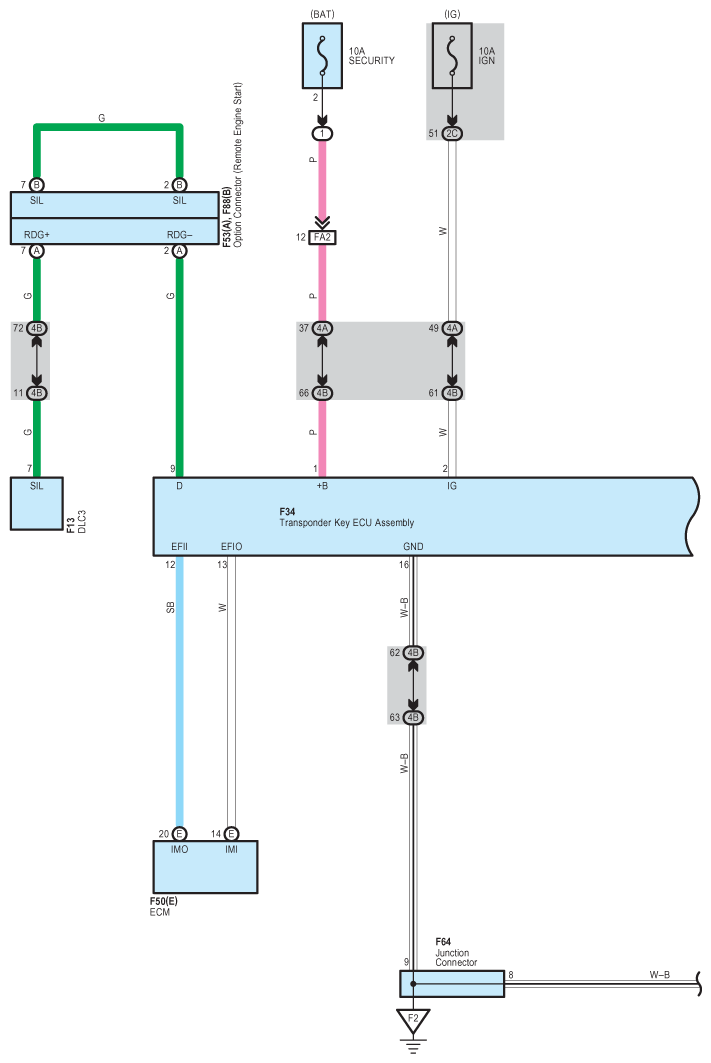

Fig 1: Engine Immobilizer System (W/O Smart Key System) - Circuit Diagram (1 Of 2)
G08950206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

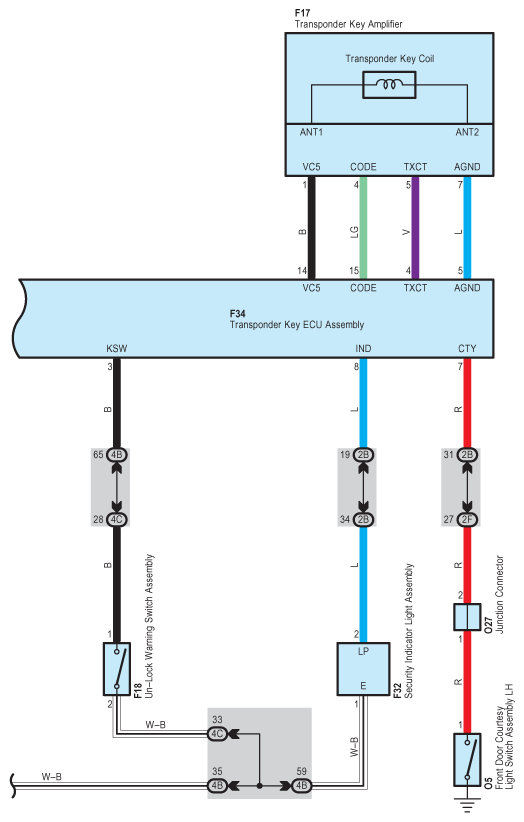

Fig 2: Engine Immobilizer System (W/O Smart Key System) - Circuit Diagram (2 Of 2)
G08950207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
