Illumination and Taillight: Notes

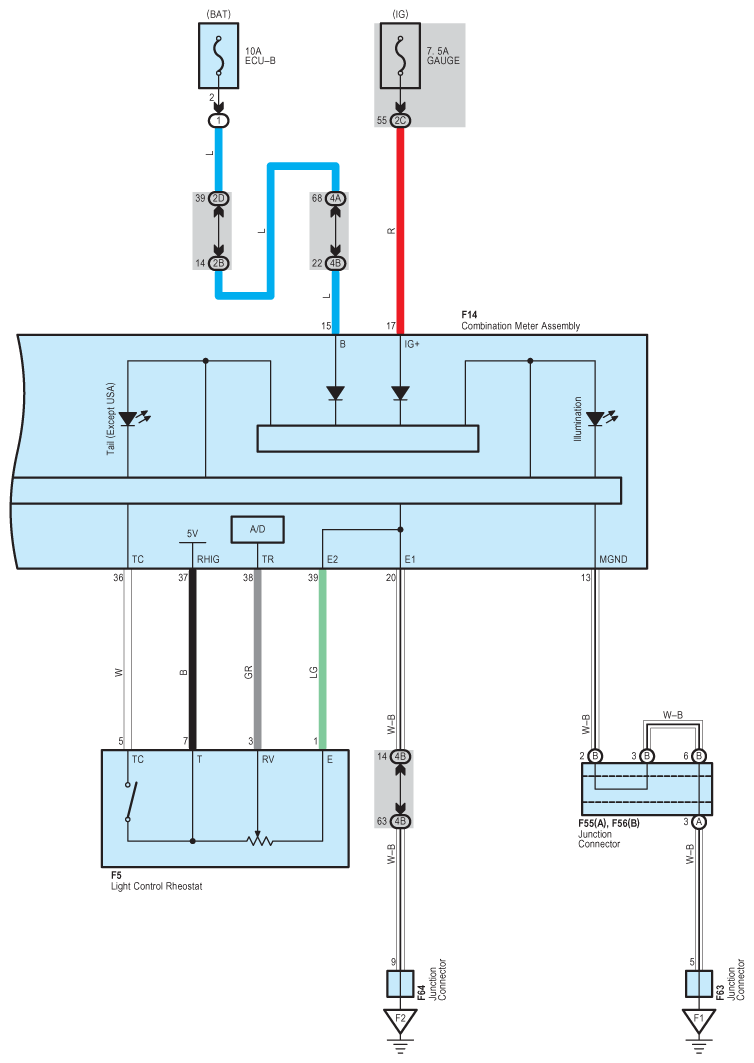

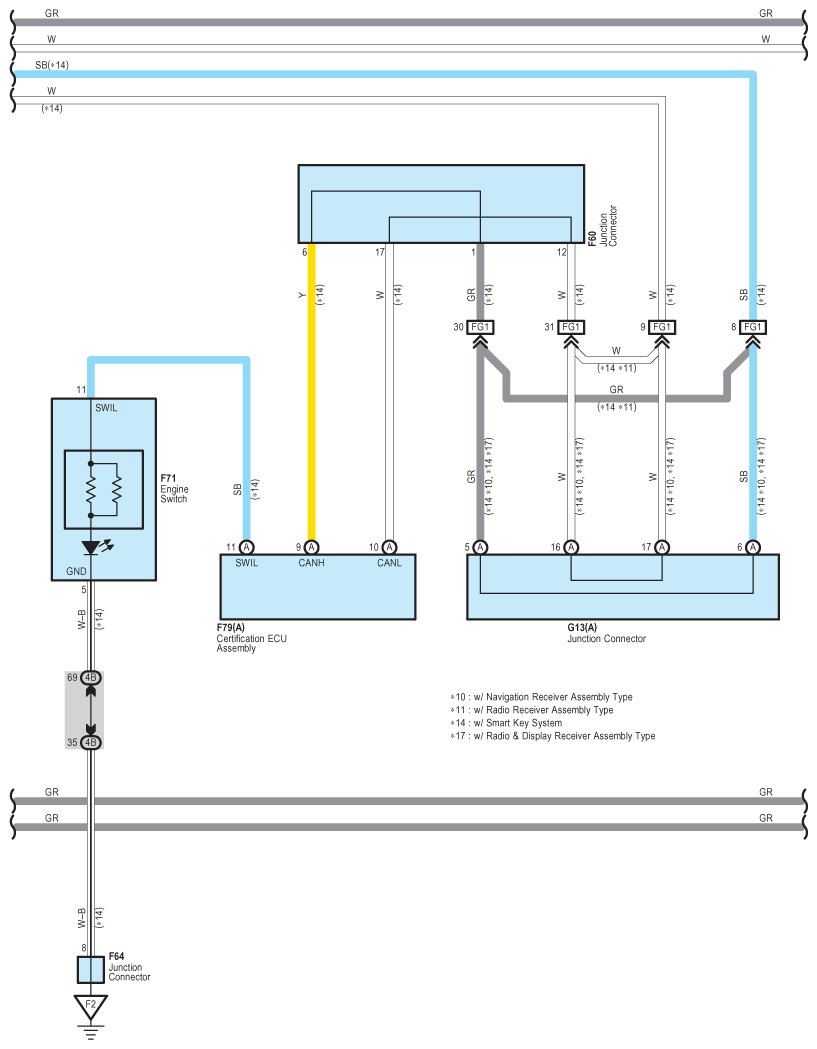

Fig 1: Illumination And Taillight - Circuit Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

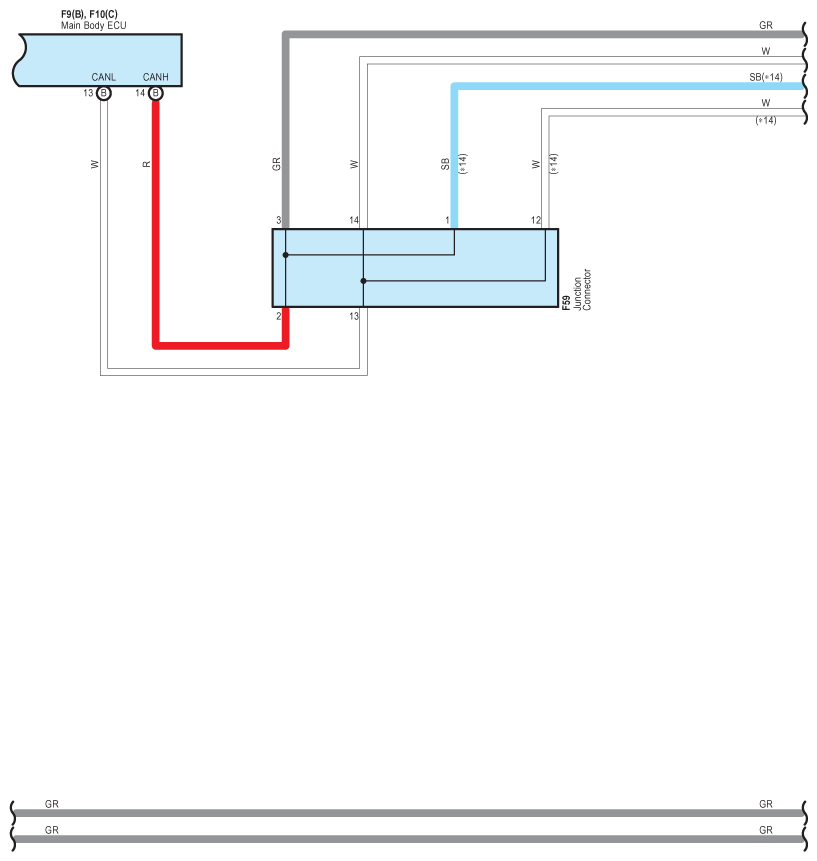

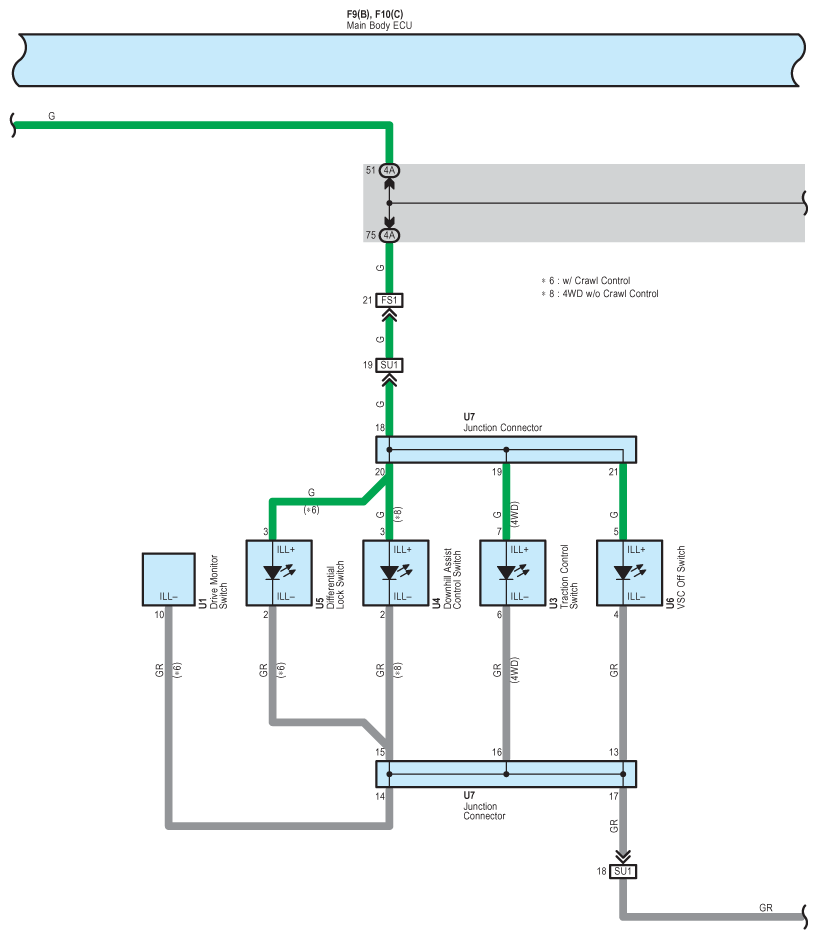

Fig 2: Illumination And Taillight - Circuit Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

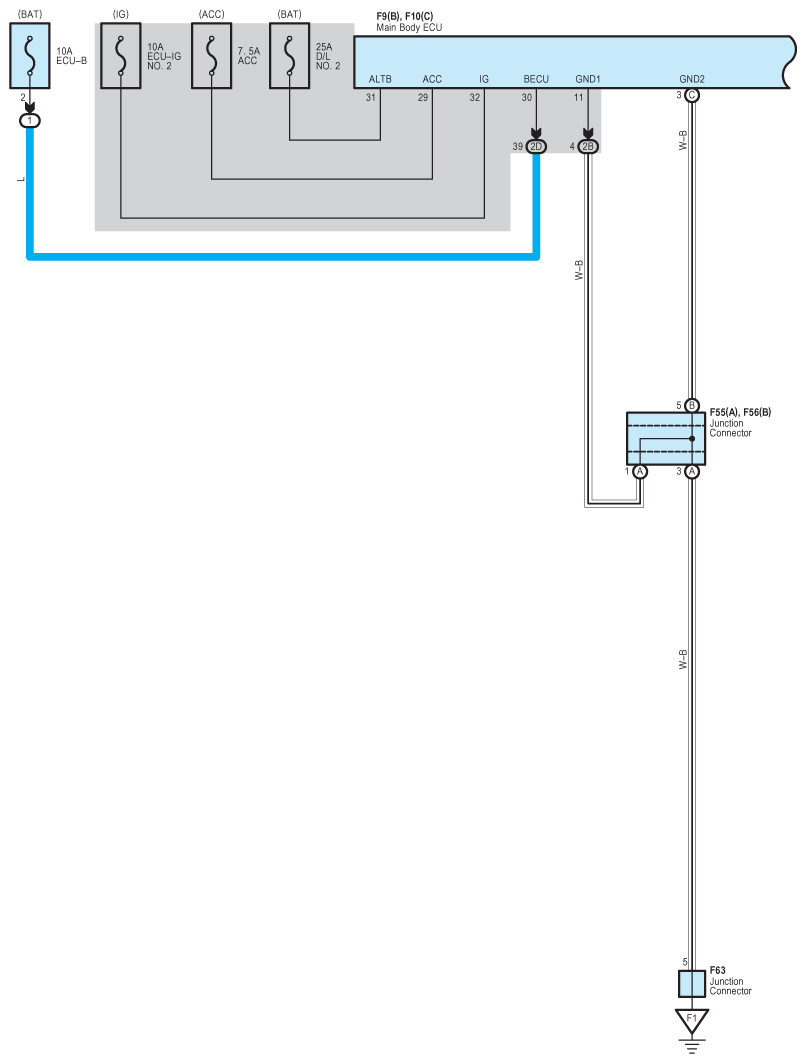

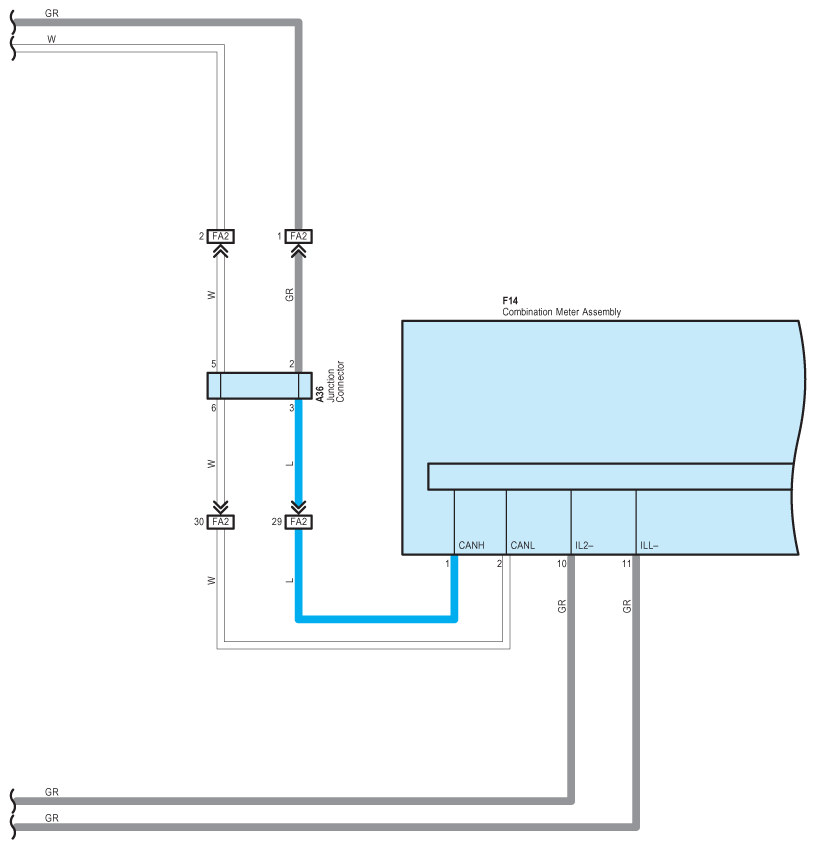

Fig 3: Illumination And Taillight - Circuit Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

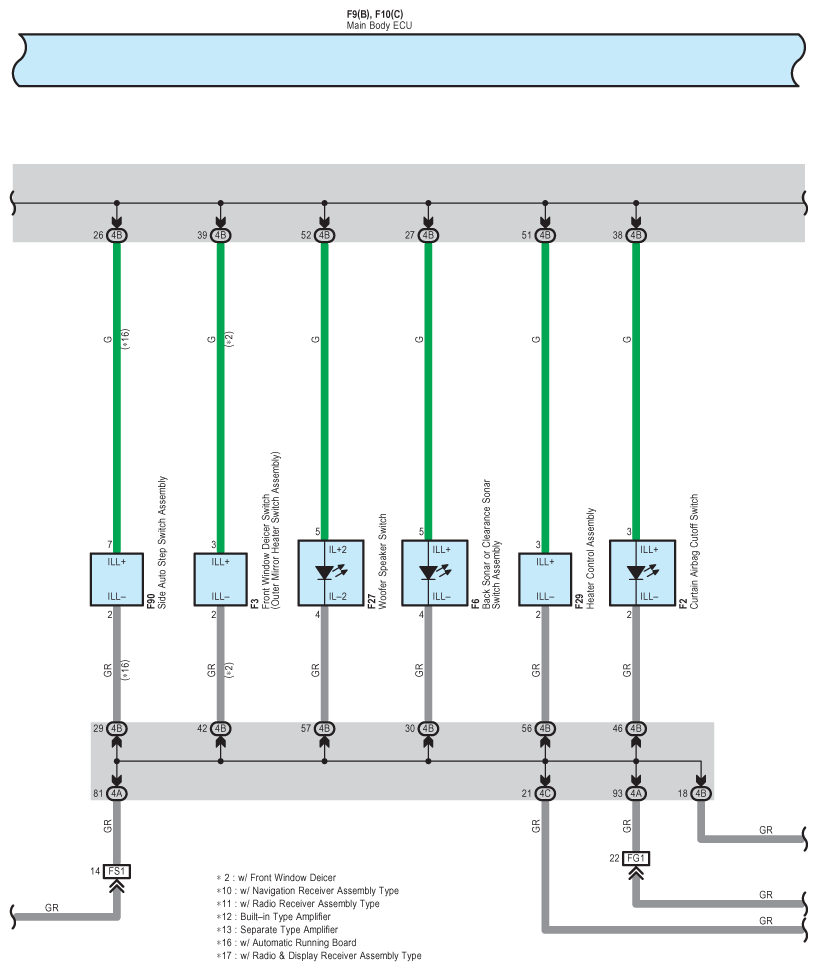

Fig 4: Illumination And Taillight - Circuit Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

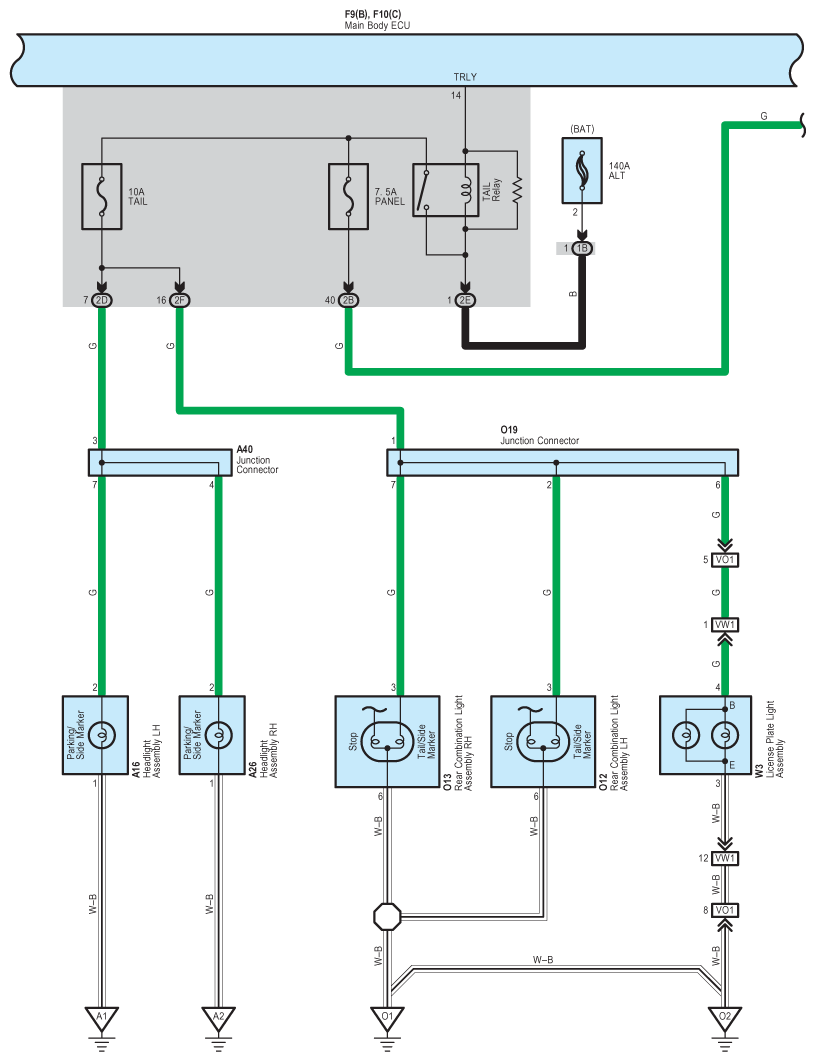

Fig 5: Illumination And Taillight - Circuit Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

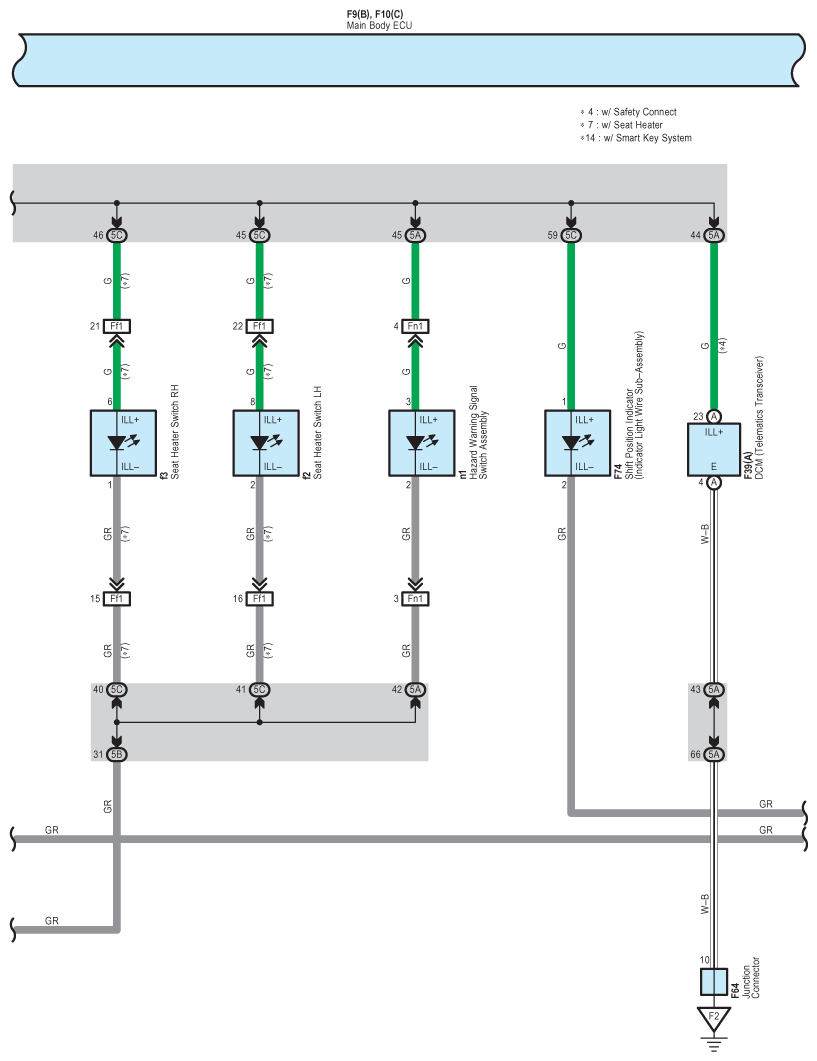

Fig 6: Illumination And Taillight - Circuit Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

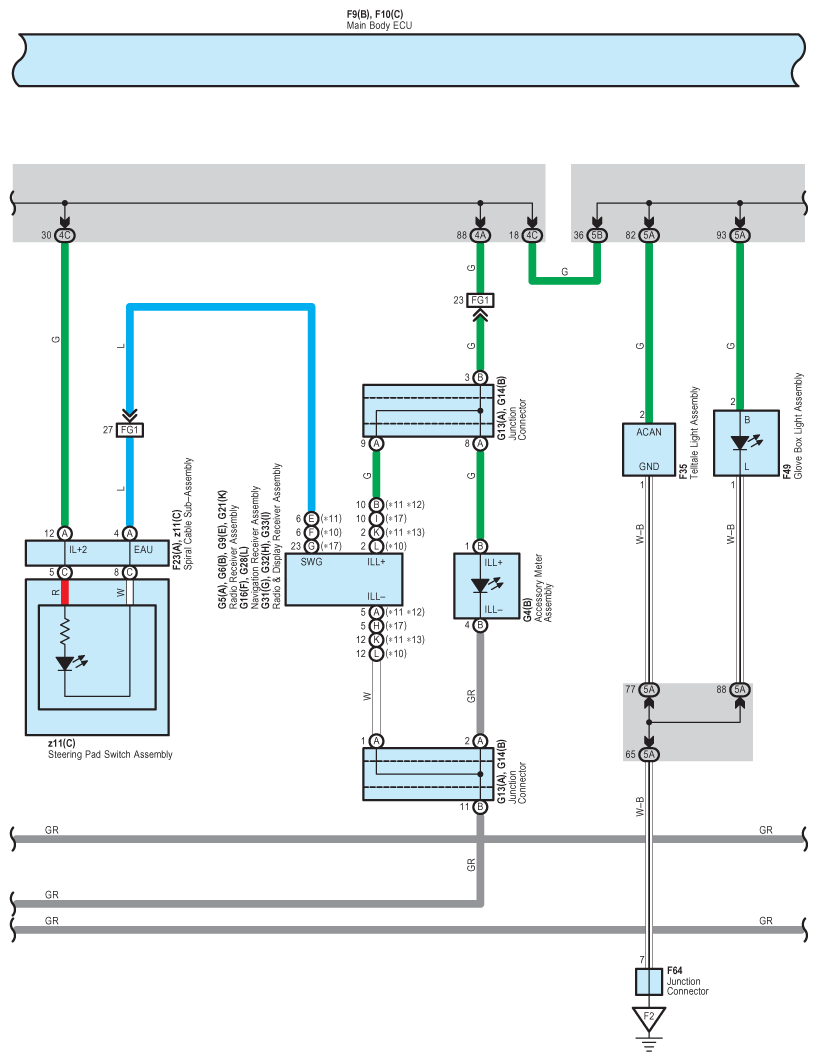

Fig 7: Illumination And Taillight - Circuit Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

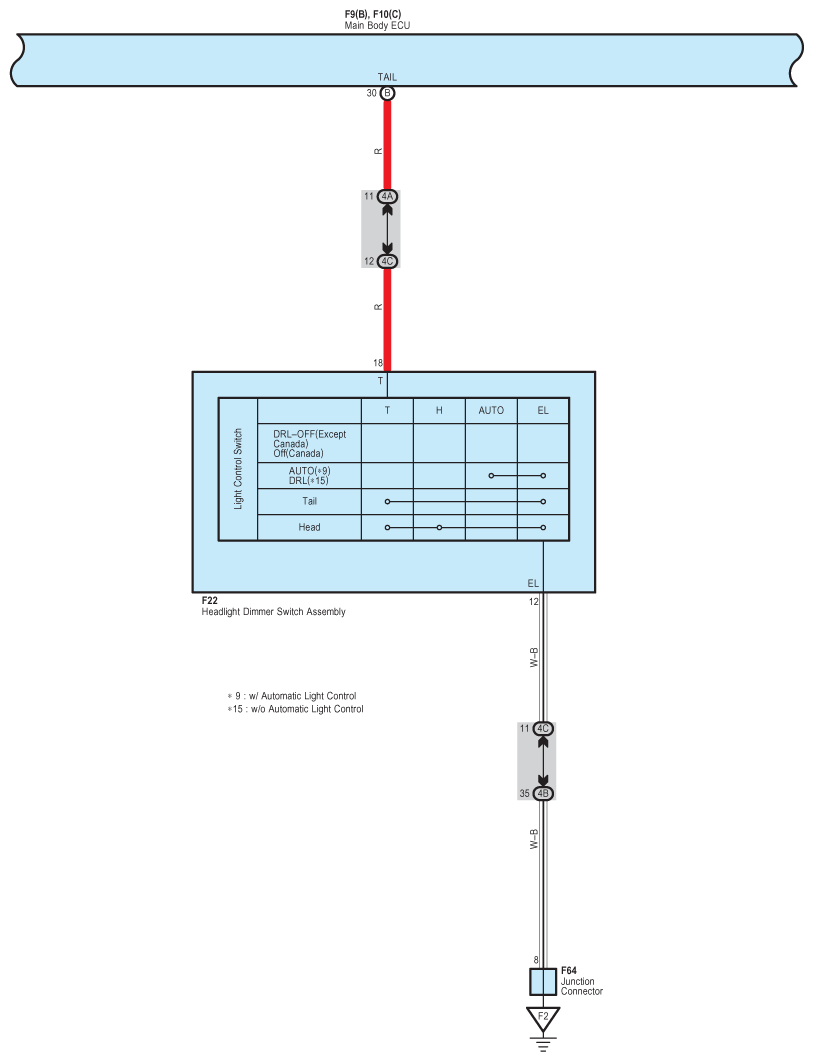

Fig 8: Illumination And Taillight - Circuit Diagram (8 Of 11)

Fig 9: Illumination And Taillight - Circuit Diagram (9 Of 11)

Fig 10: Illumination And Taillight - Circuit Diagram (10 Of 11)

Fig 11: Illumination And Taillight - Circuit Diagram (11 Of 11)
