Ground Point: Notes

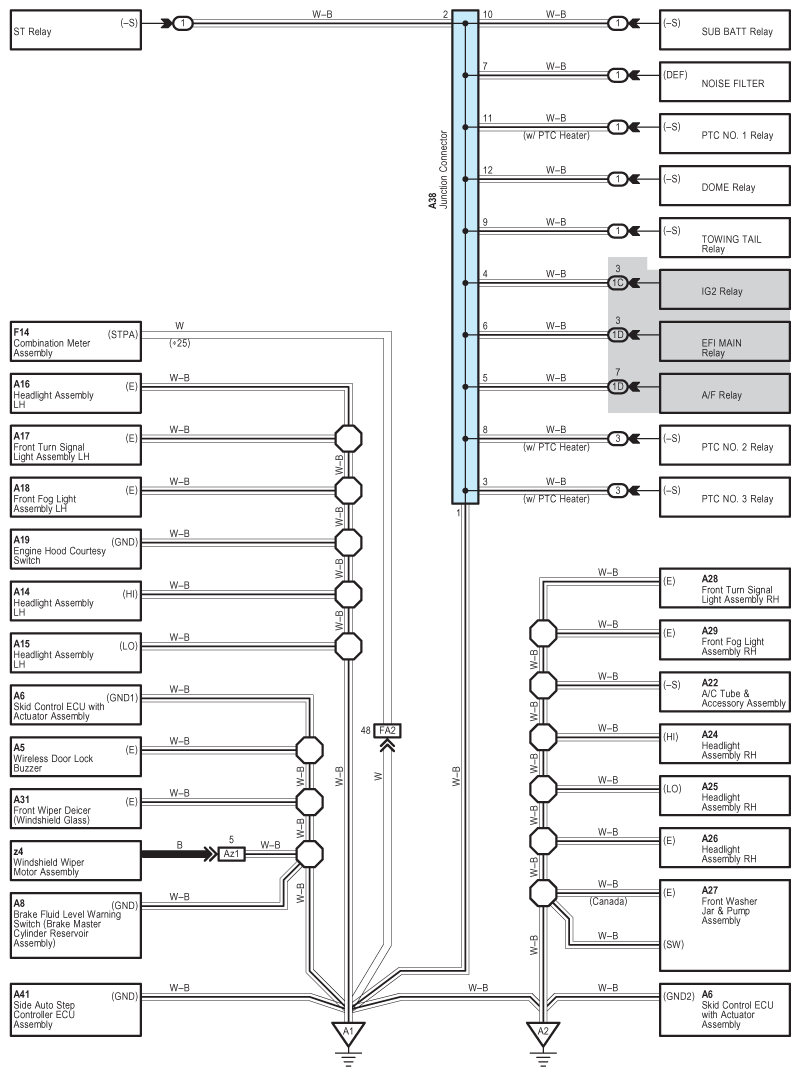

Fig 1: Ground Point Wiring Diagram (1 Of 11)

G08950452

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

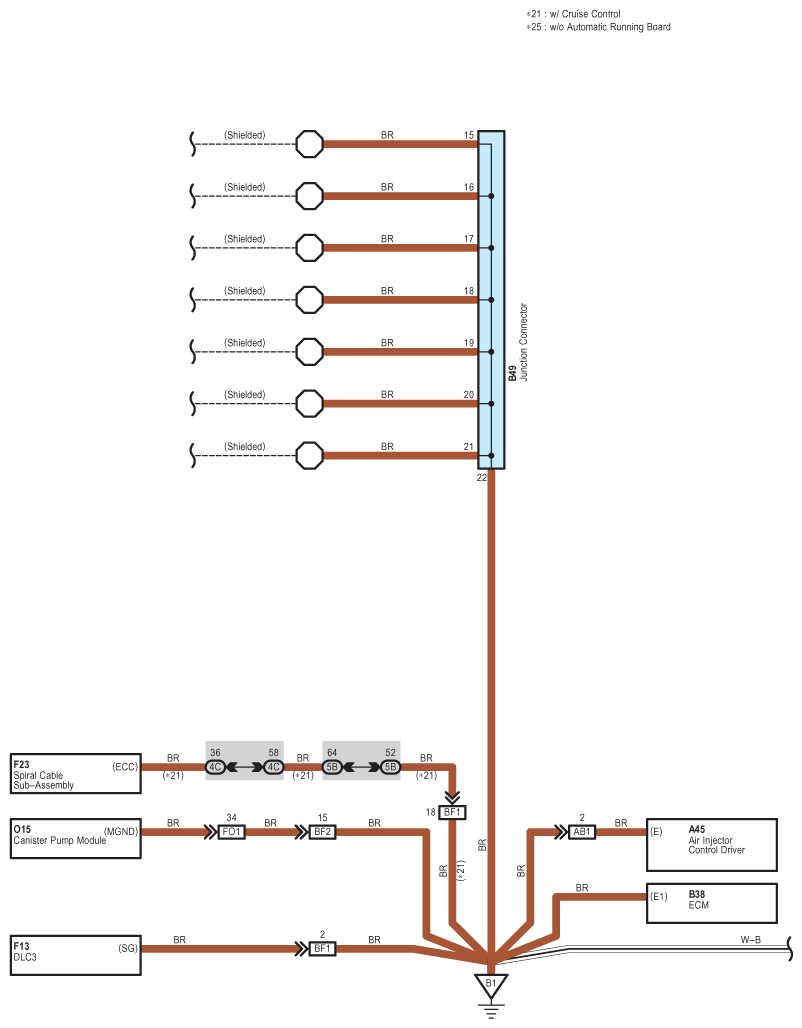

Fig 2: Ground Point Wiring Diagram (2 Of 11)

G08950453

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

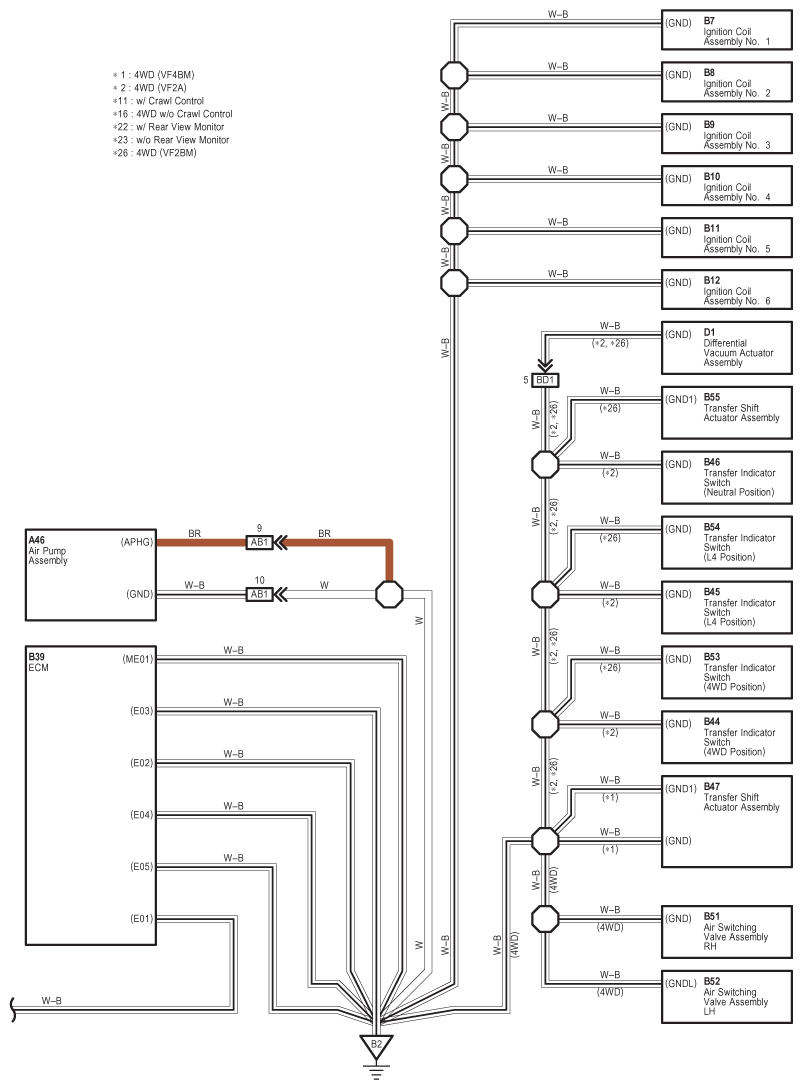

Fig 3: Ground Point Wiring Diagram (3 Of 11)

G08950454

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

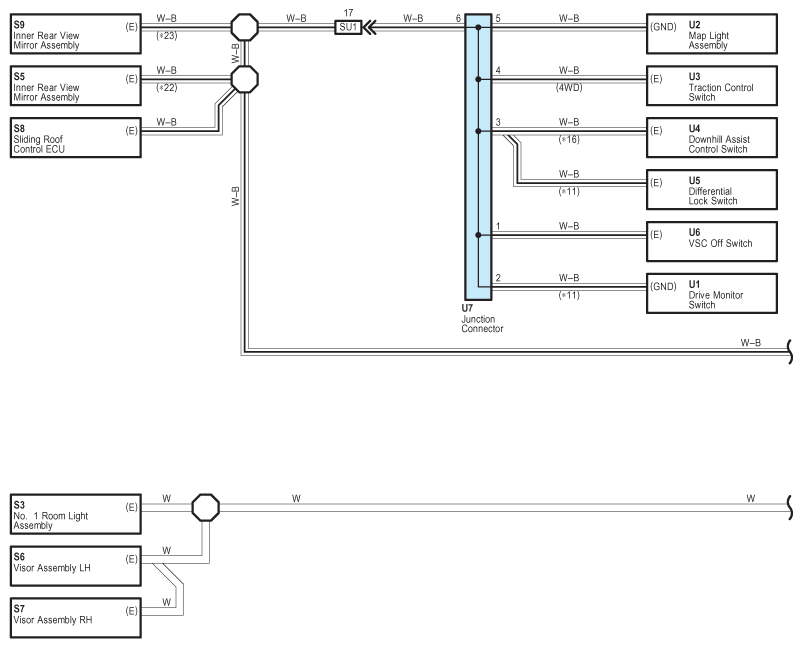

Fig 4: Ground Point Wiring Diagram (4 Of 11)

G08950455

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

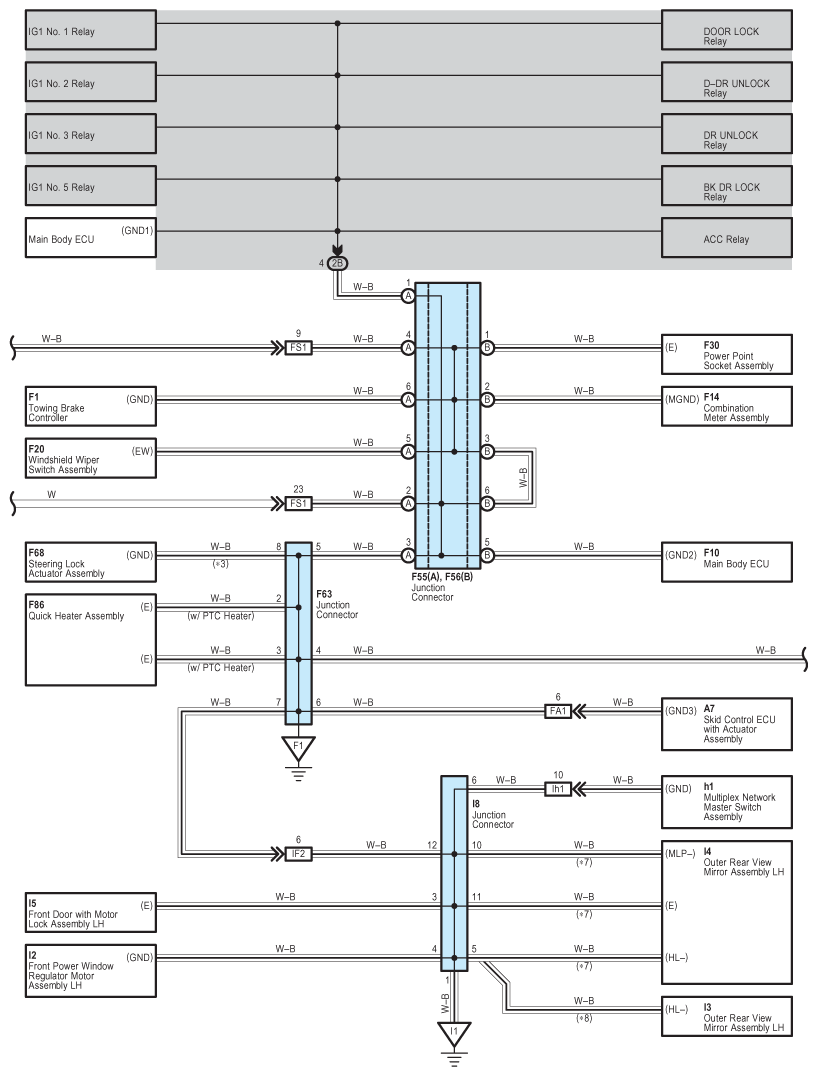

Fig 5: Ground Point Wiring Diagram (5 Of 11)

G08950456

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

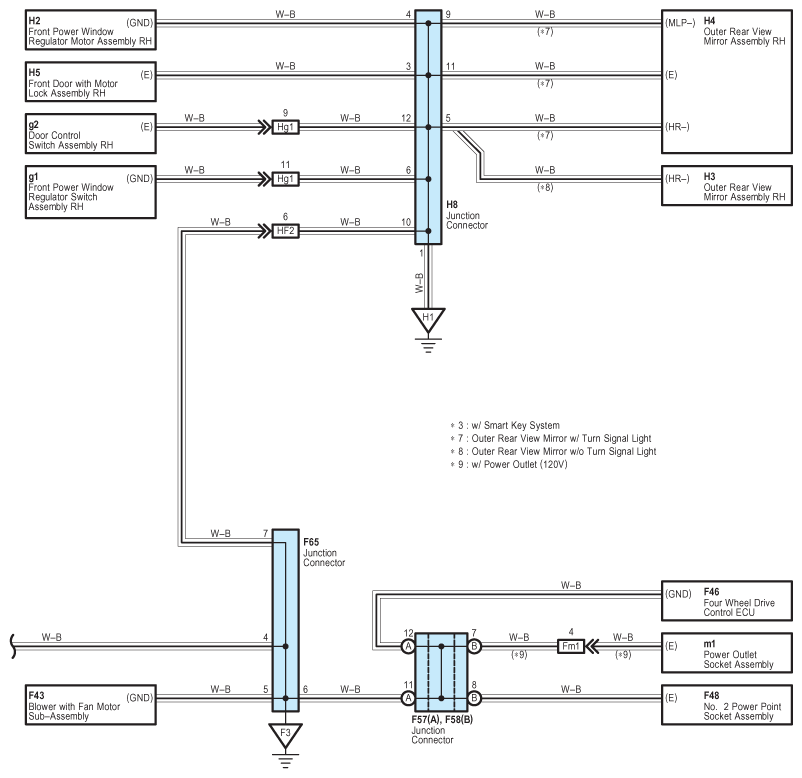

Fig 6: Ground Point Wiring Diagram (6 Of 11)

G08950457

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

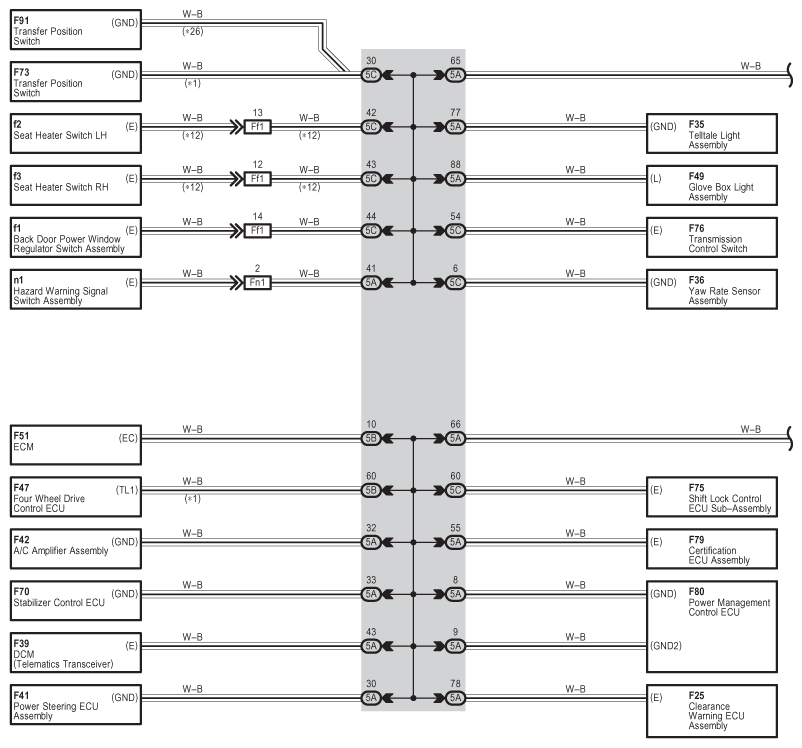

Fig 7: Ground Point Wiring Diagram (7 Of 11)

G08950458

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

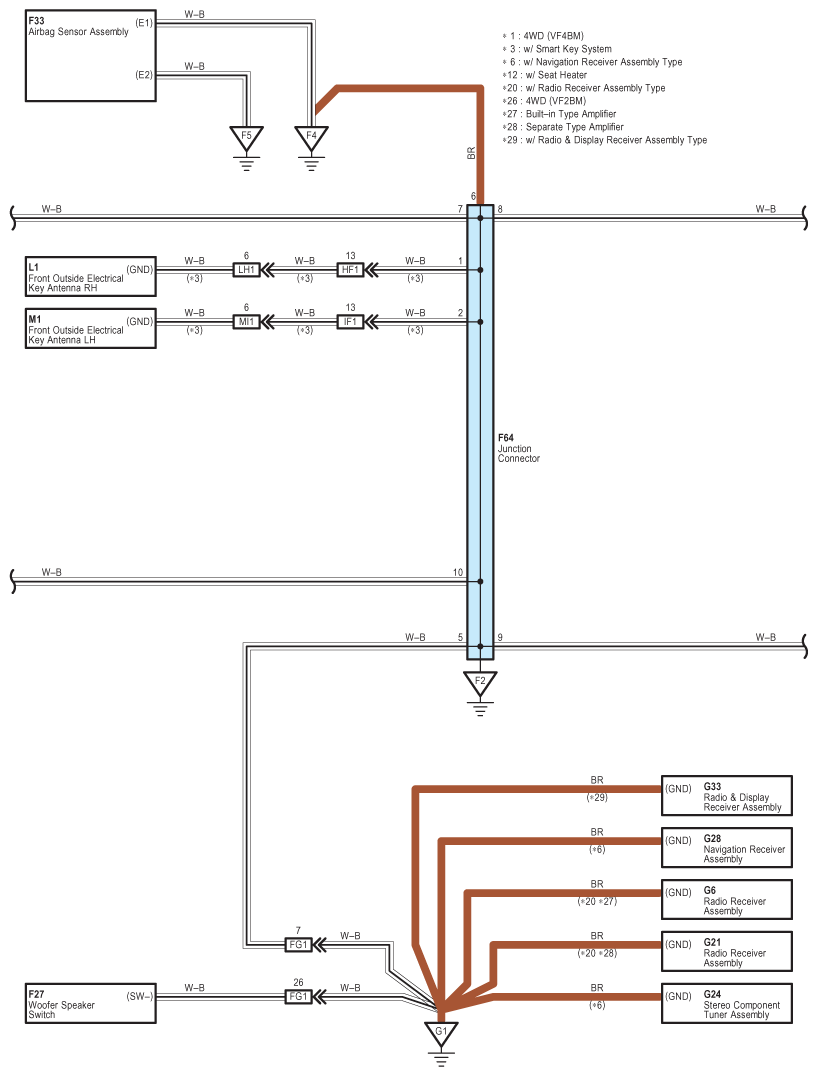

Fig 8: Ground Point Wiring Diagram (8 Of 11)

G08950459

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

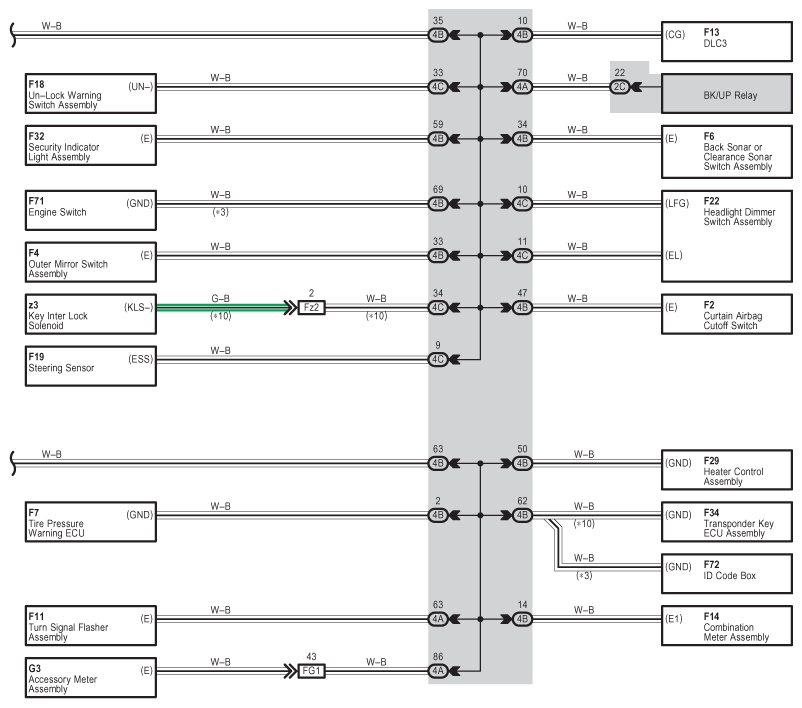

Fig 9: Ground Point Wiring Diagram (9 Of 11)

G08950460

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

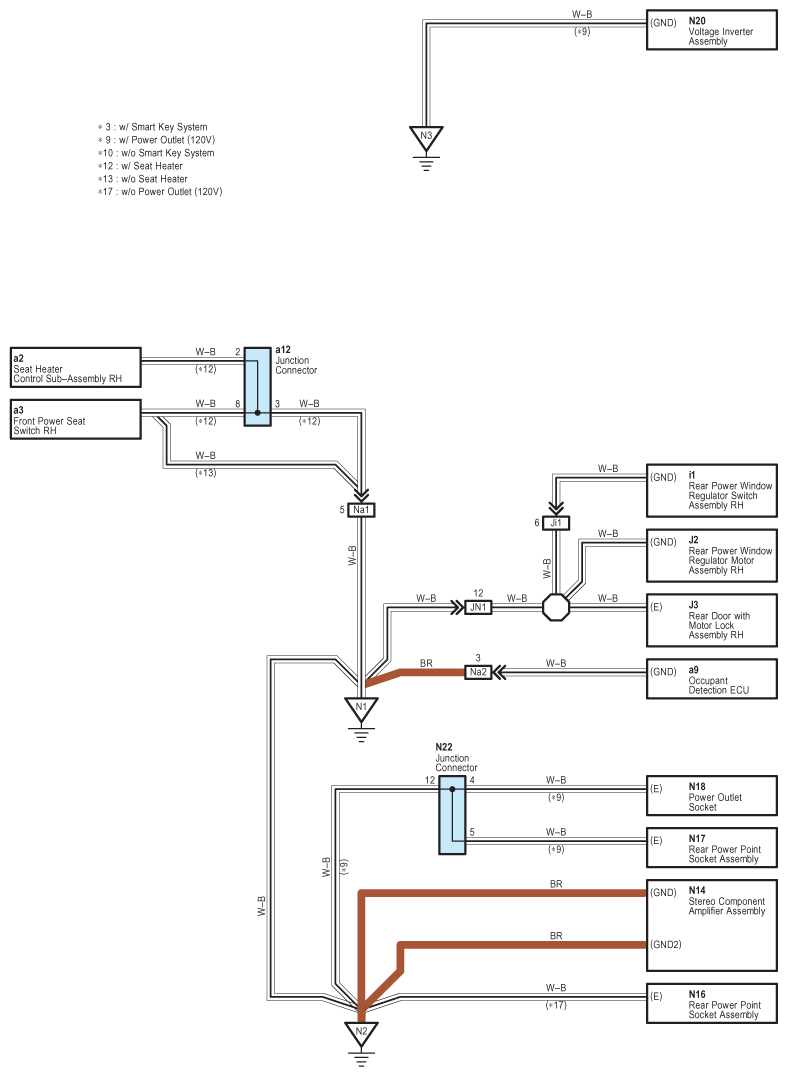

Fig 10: Ground Point Wiring Diagram (10 Of 11)

G08950461

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

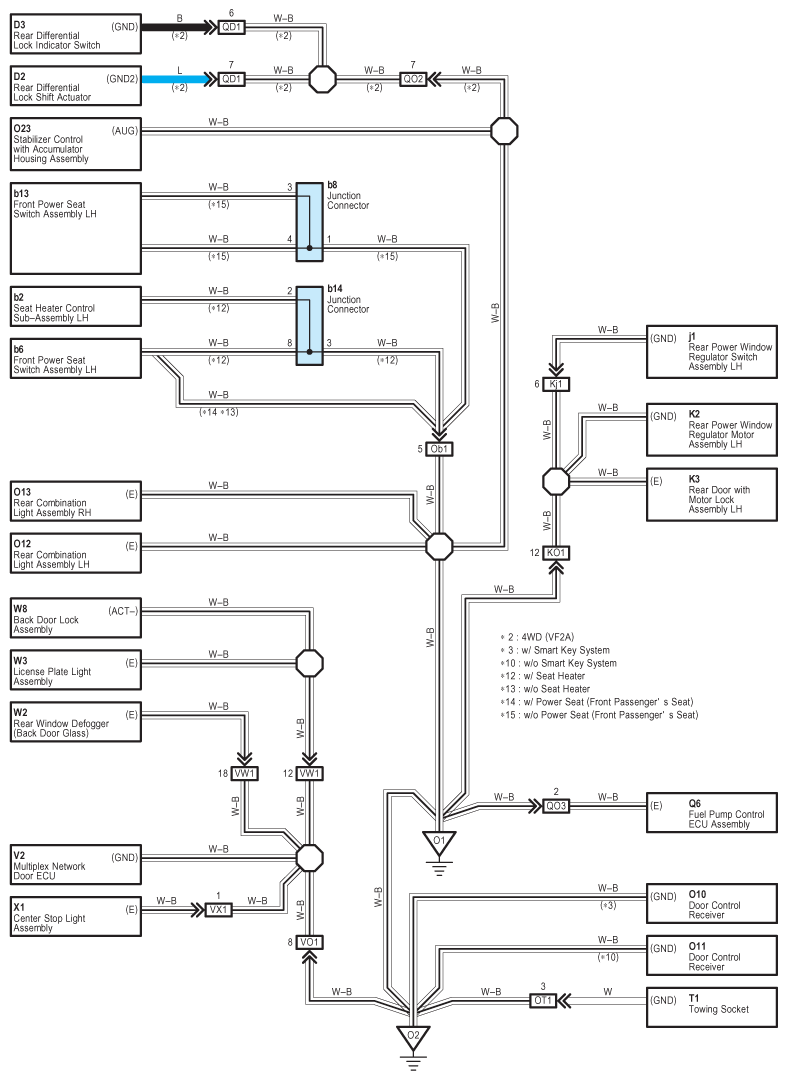

Fig 11: Ground Point Wiring Diagram (11 Of 11)

G08950462

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
