Home >> Toyota >> 2012 >> Yaris LE, 4D Hatchback >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Service Information) >> IGNITION COIL AND SPARK PLUG (for Sedan) >> Components >> Illustration

IGNITION COIL AND SPARK PLUG (for Sedan): Components: Illustration

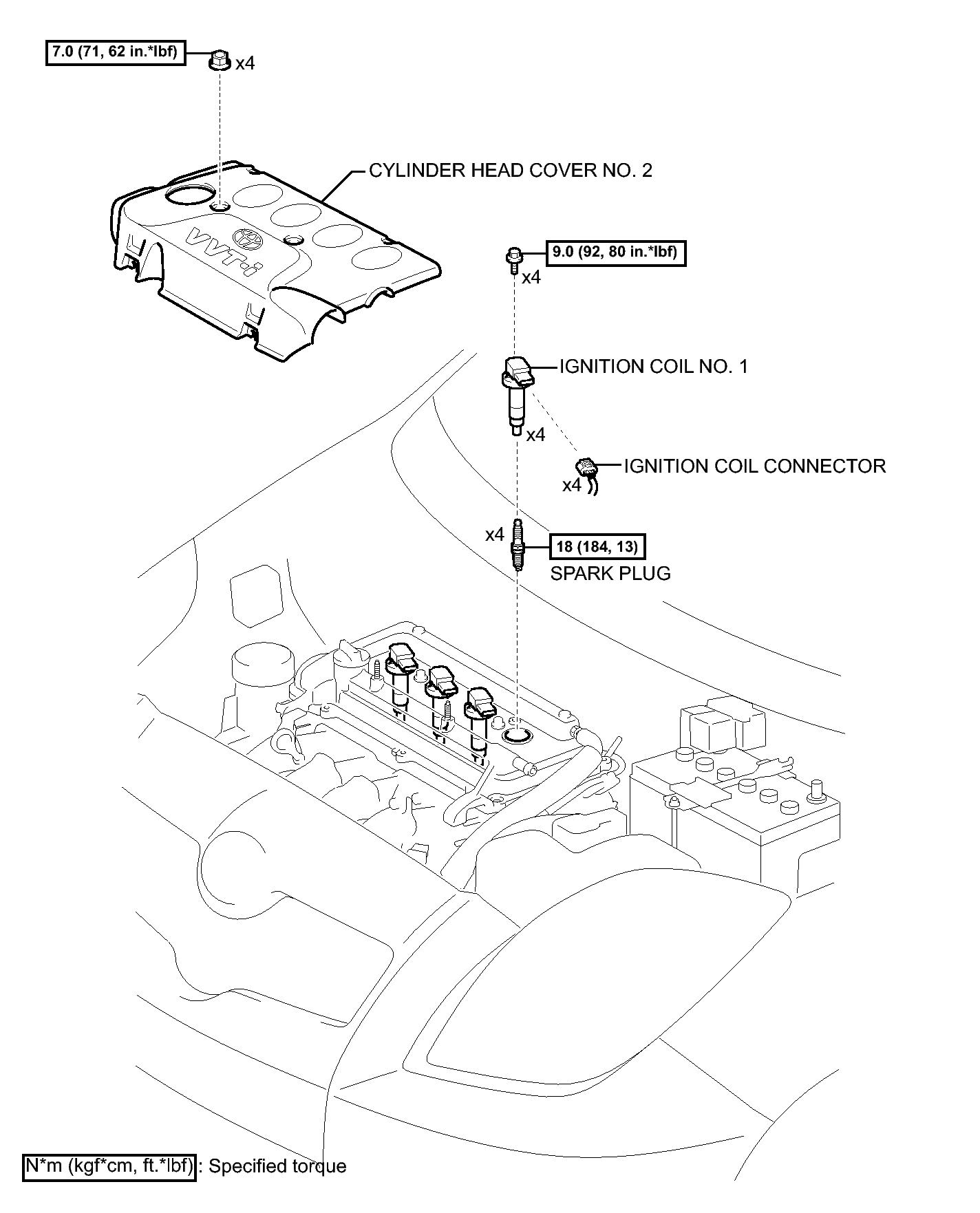

Fig 1: Identifying Ignition Coil And Spark Plug (For Sedan) Replacement Components With Torque Specifications
GTY325169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
