Front Fog Light (S/D): Notes

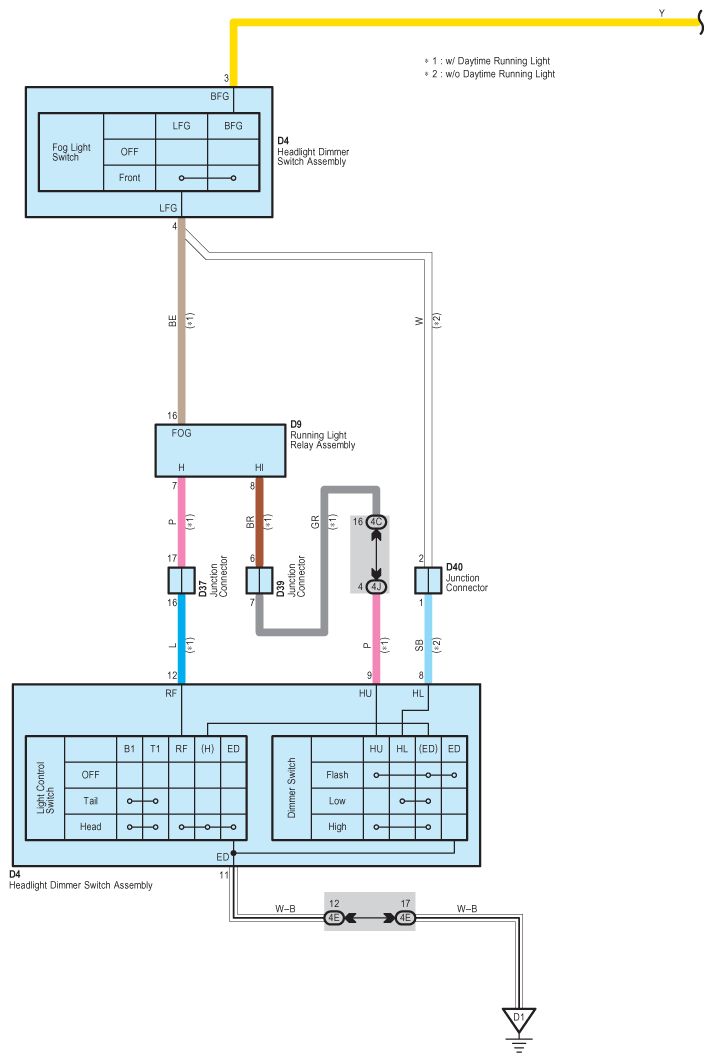

Fig 1: Front Fog Light (S/D) - Circuit Diagram (1 Of 2)
G08949420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

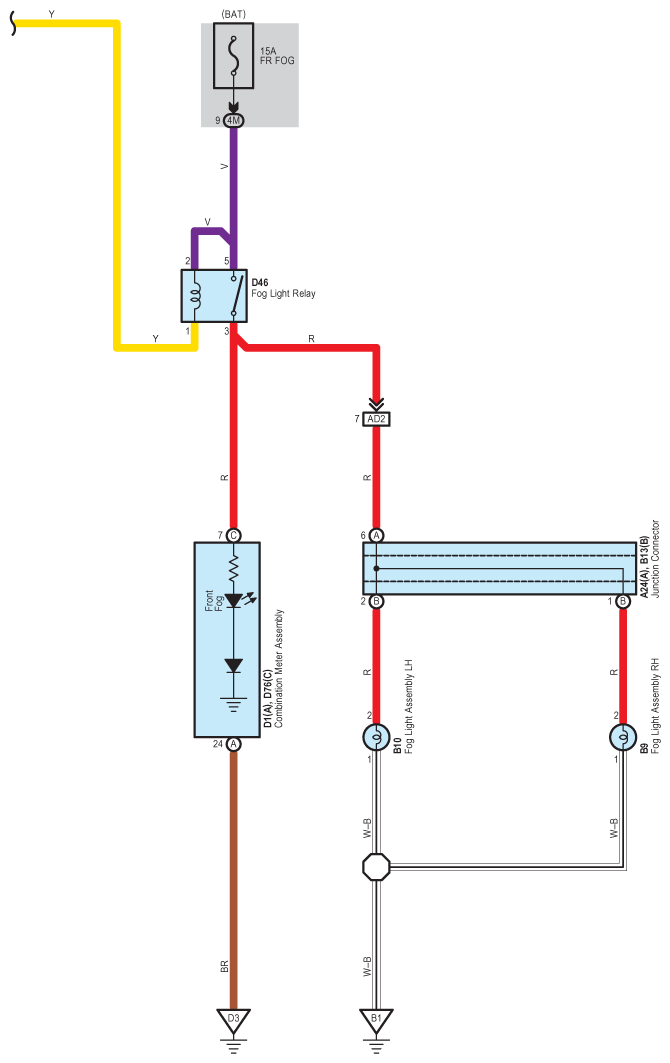

Fig 2: Front Fog Light (S/D) - Circuit Diagram (2 Of 2)
G08949421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
