Data Link Connector 3 (S/D)
>>
Notes
Data Link Connector 3 (S/D): Notes

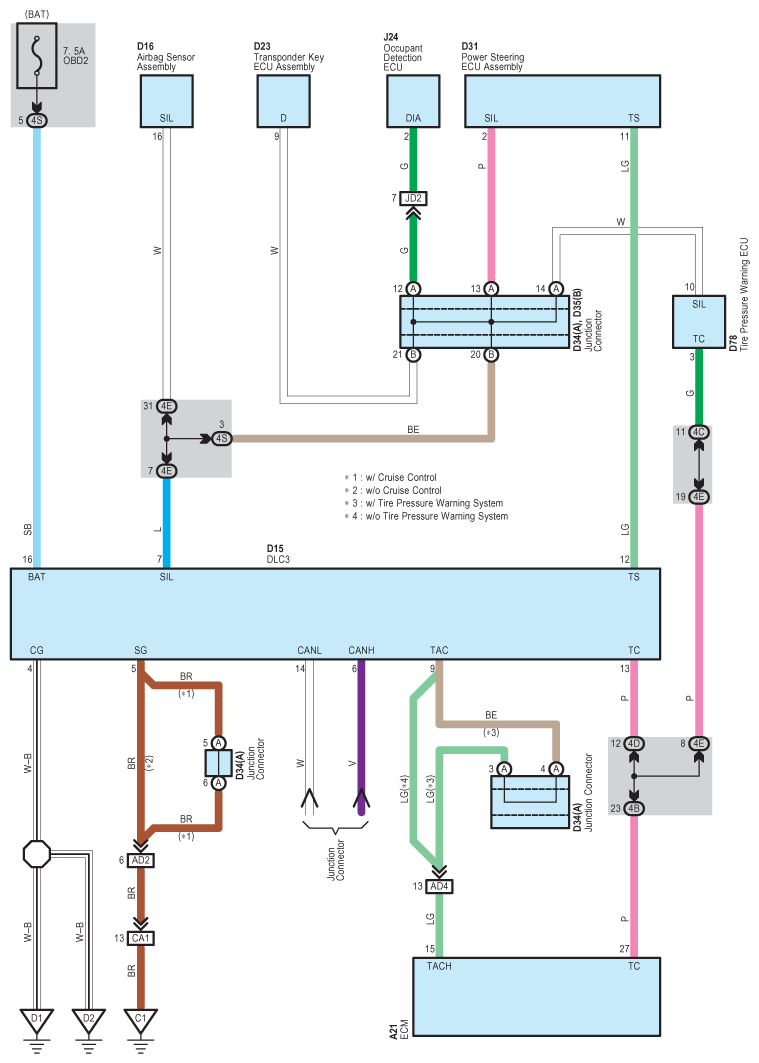

Fig 1: Data Link Connector 3 (S/D) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
