Seat Belt Warning (S/D): Notes

Fig 1: Seat Belt Warning (S/D) - Circuit Diagram (1 Of 4)
G08949462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

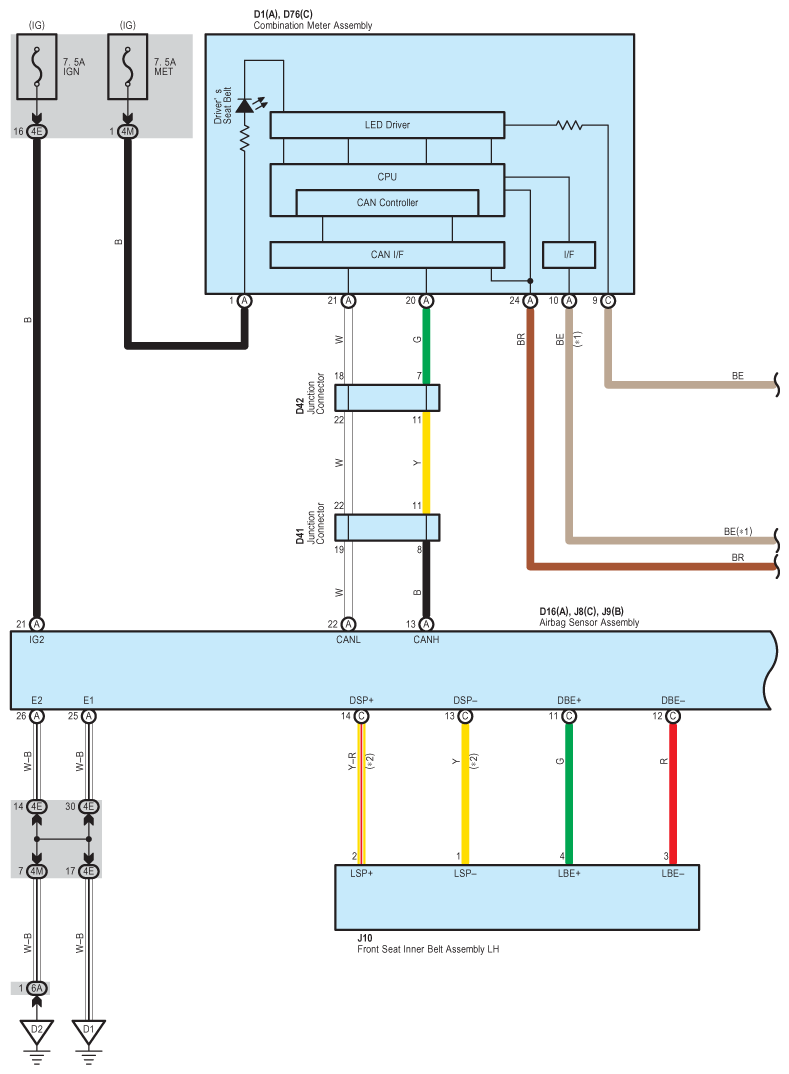

Fig 2: Seat Belt Warning (S/D) - Circuit Diagram (2 Of 4)
G08949463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

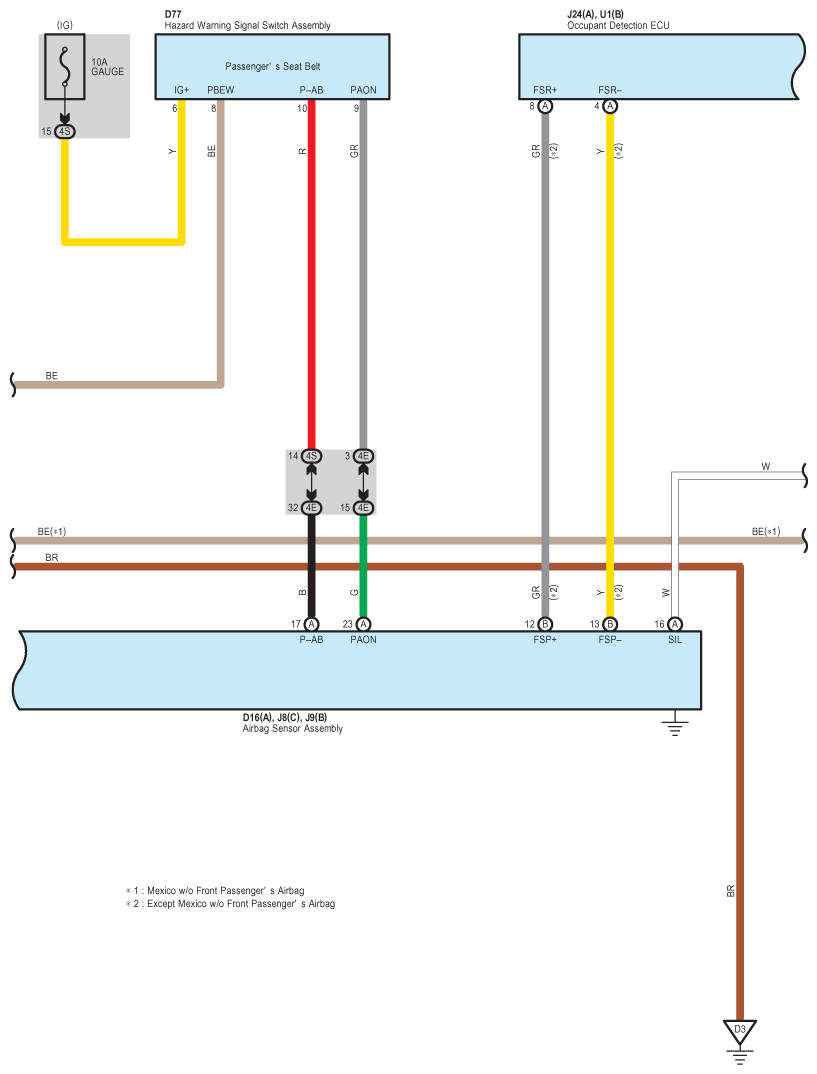

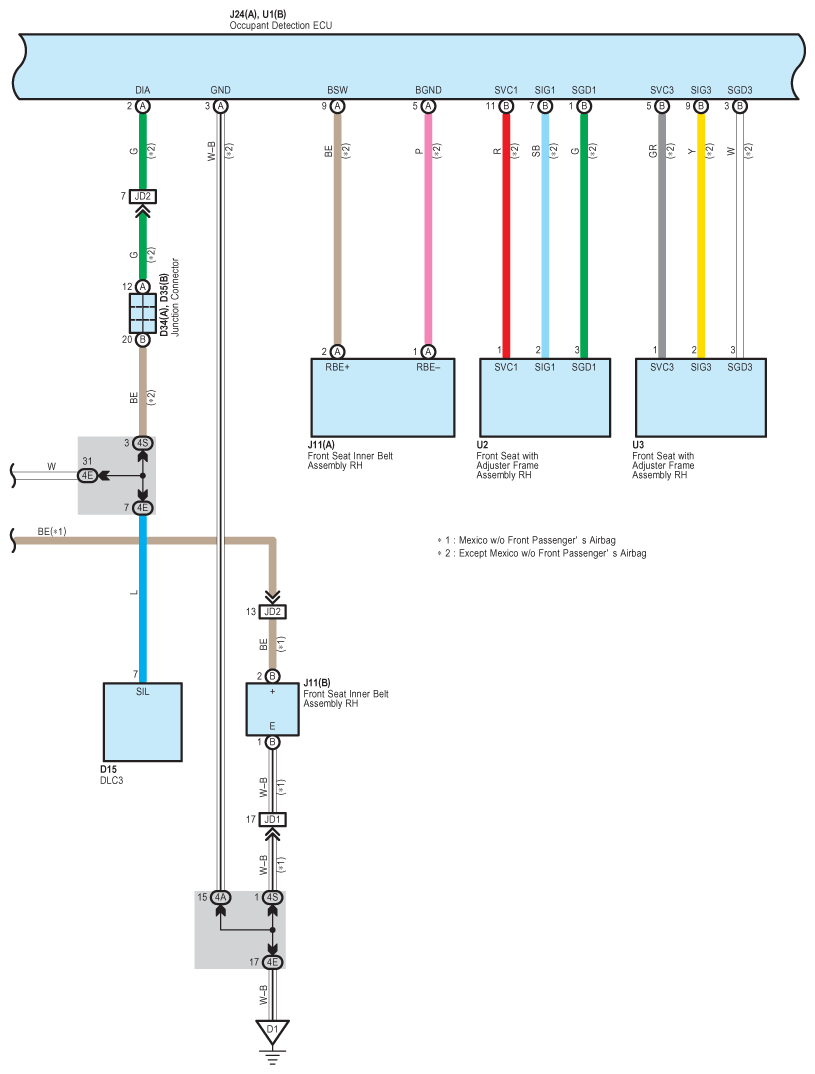

Fig 3: Seat Belt Warning (S/D) - Circuit Diagram (3 Of 4)
G08949464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

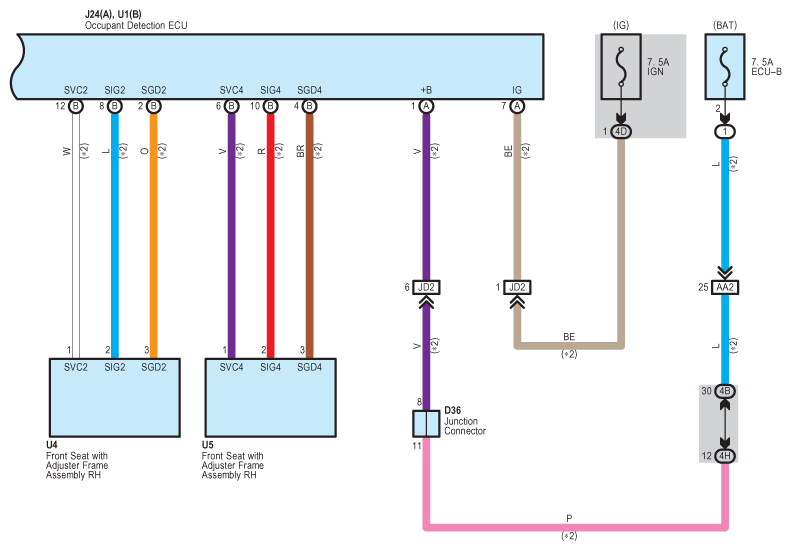

Fig 4: Seat Belt Warning (S/D) - Circuit Diagram (4 Of 4)
G08949465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
