HEATED OXYGEN SENSOR (for Sedan): Components: Illustration

Fig 1: Identifying Heated Oxygen Sensor (For Sedan) Replacement Components (1 Of 2)
GTY332135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

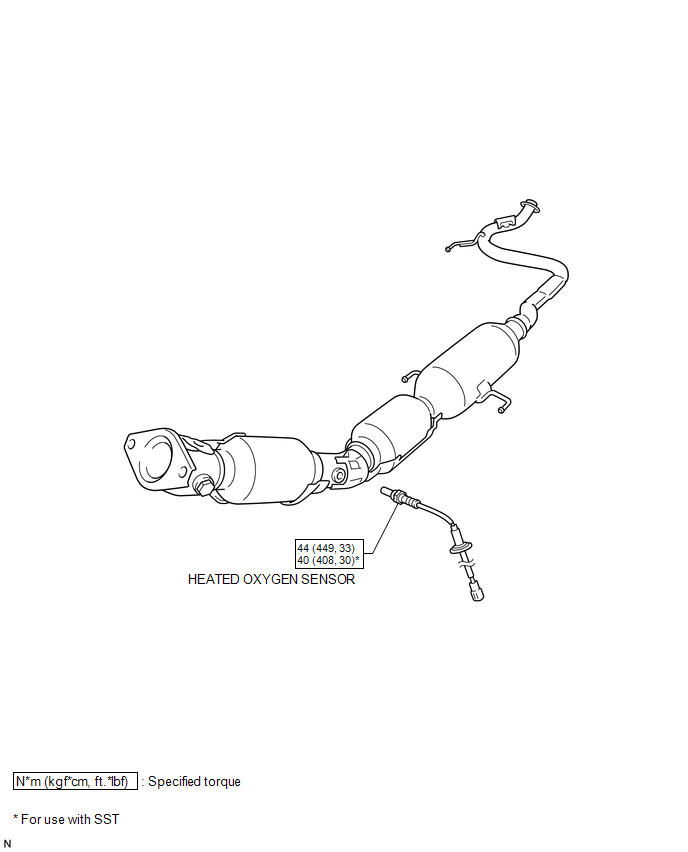

Fig 1: Identifying Heated Oxygen Sensor (For Sedan) Replacement Components With Torque Specifications (1 Of 2)
GTY335570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
