ENGINE COOLANT TEMPERATURE SENSOR (for Hatchback): Components: Illustration

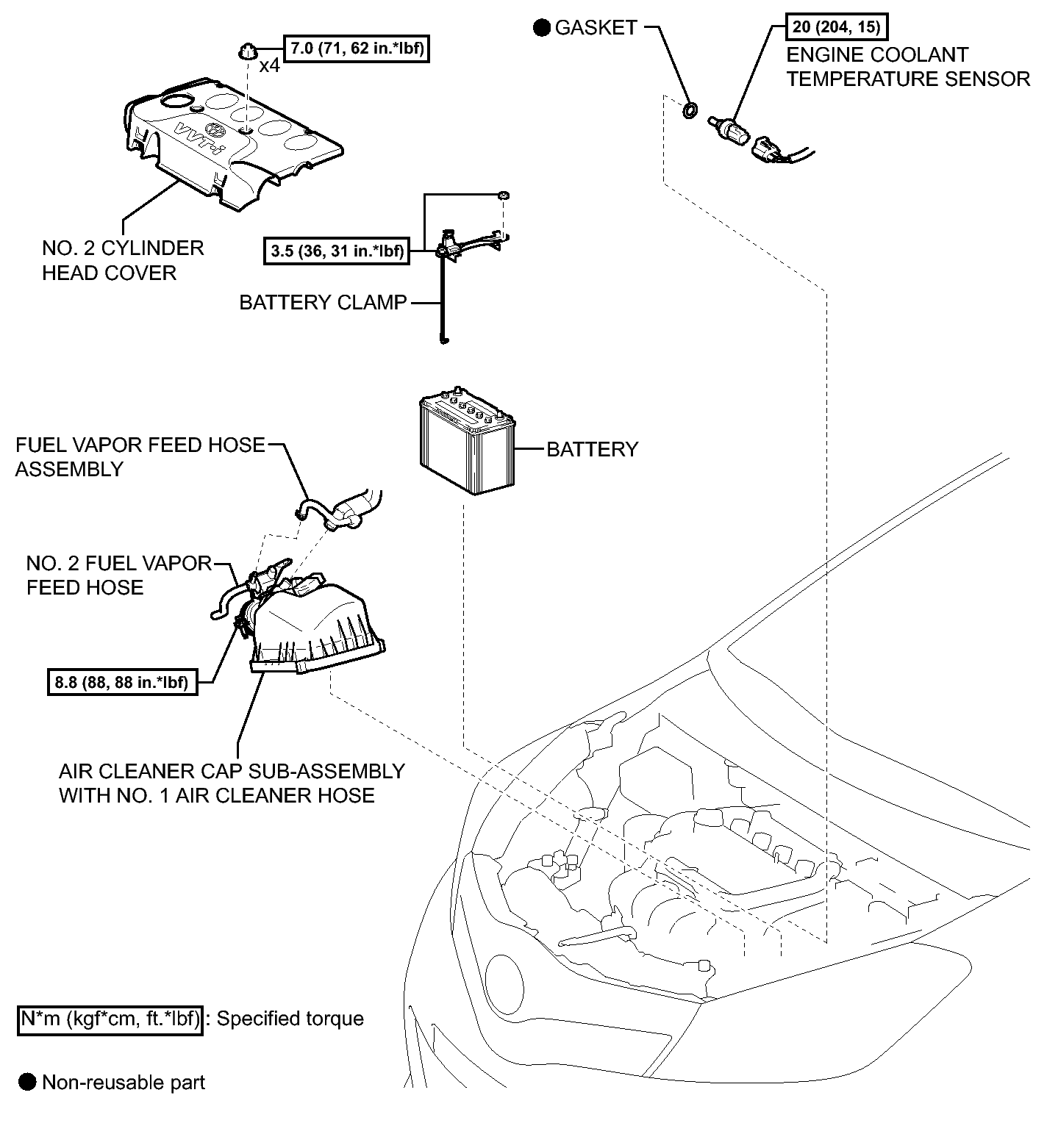

Fig 1: Identifying Engine Coolant Temperature Sensor (For Hatchback) Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
