Mirror Heater and Rear Window Defogger (S/D): Notes

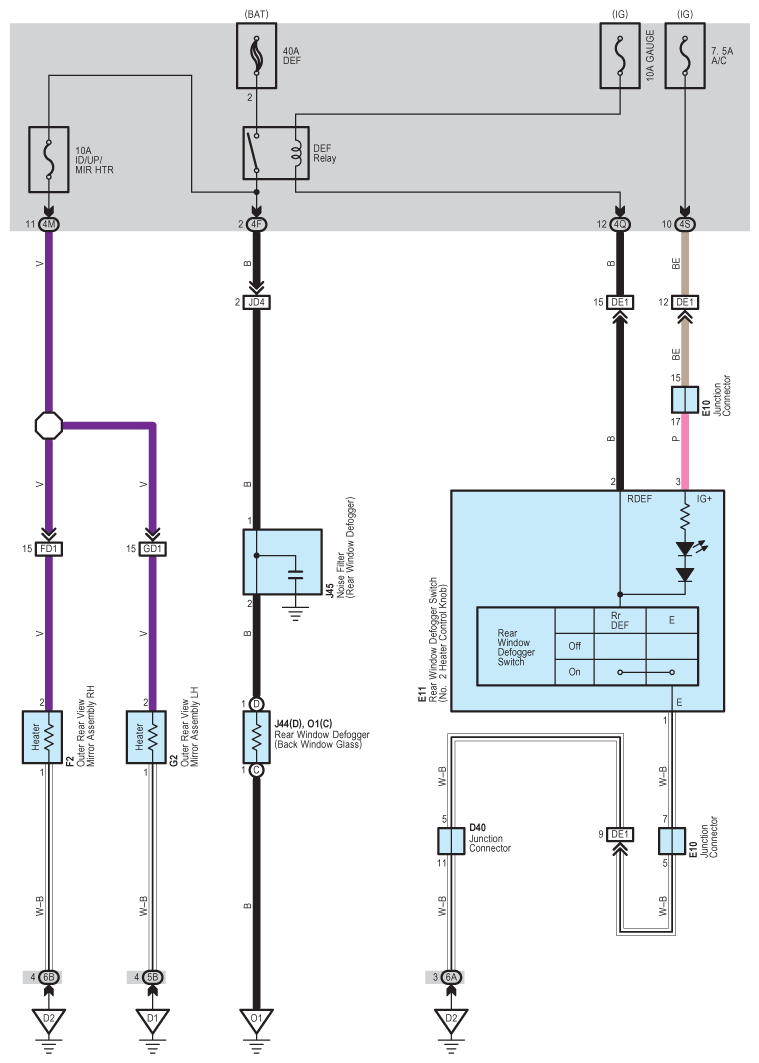

Fig 1: Mirror Heater And Rear Window Defogger (S/D) - Circuit Diagram

G08949470

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
