Key Reminder and Light Reminder (S/D): Notes

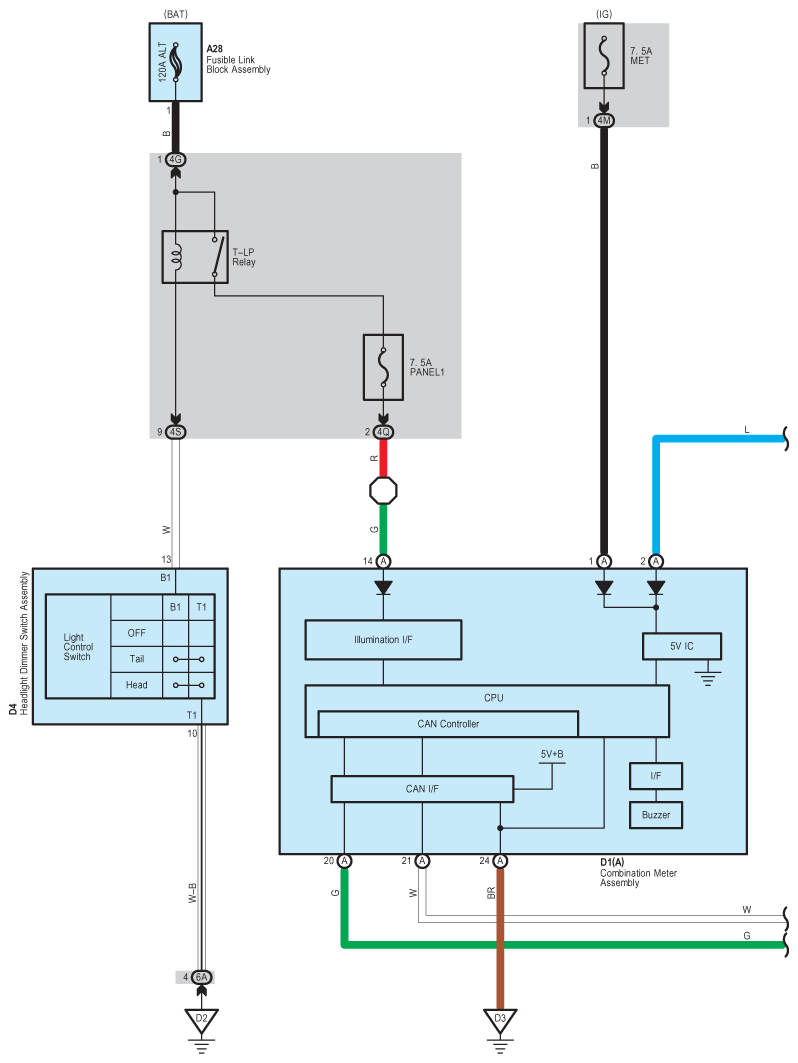

Fig 1: Key Reminder And Light Reminder (S/D) - Circuit Diagram (1 Of 2)
G08949422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

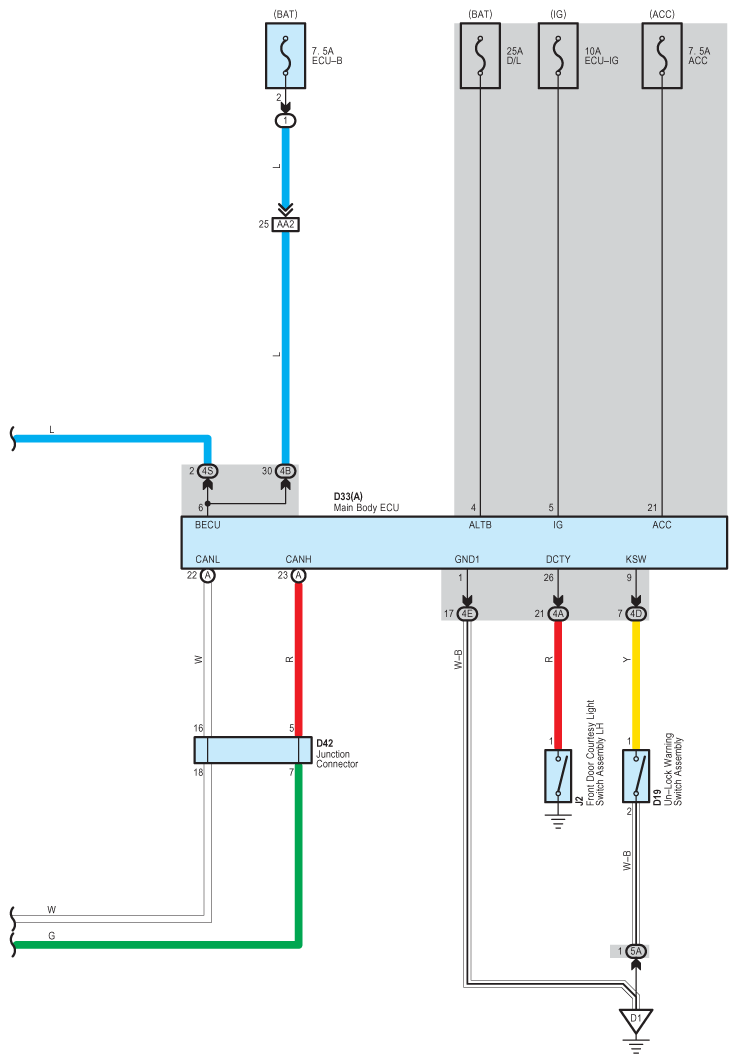

Fig 2: Key Reminder And Light Reminder (S/D) - Circuit Diagram (2 Of 2)
G08949423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
