Key Reminder and Light Reminder (H/B): Notes

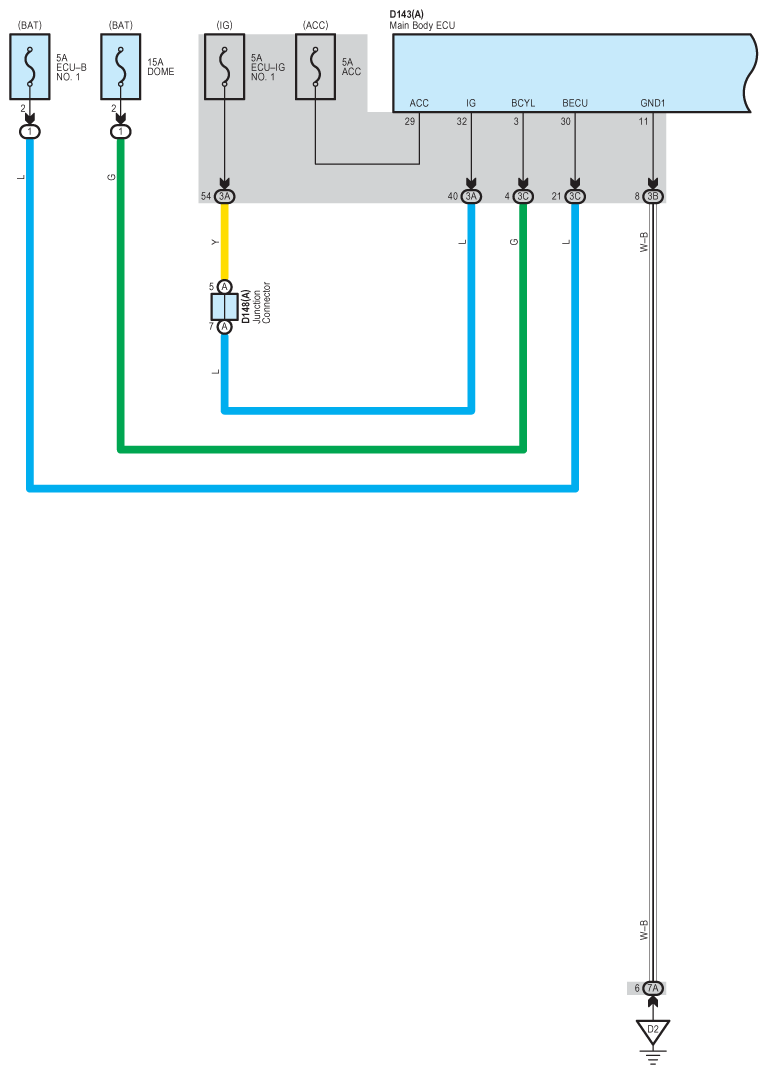

Fig 1: Key Reminder And Light Reminder (H/B) - Circuit Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

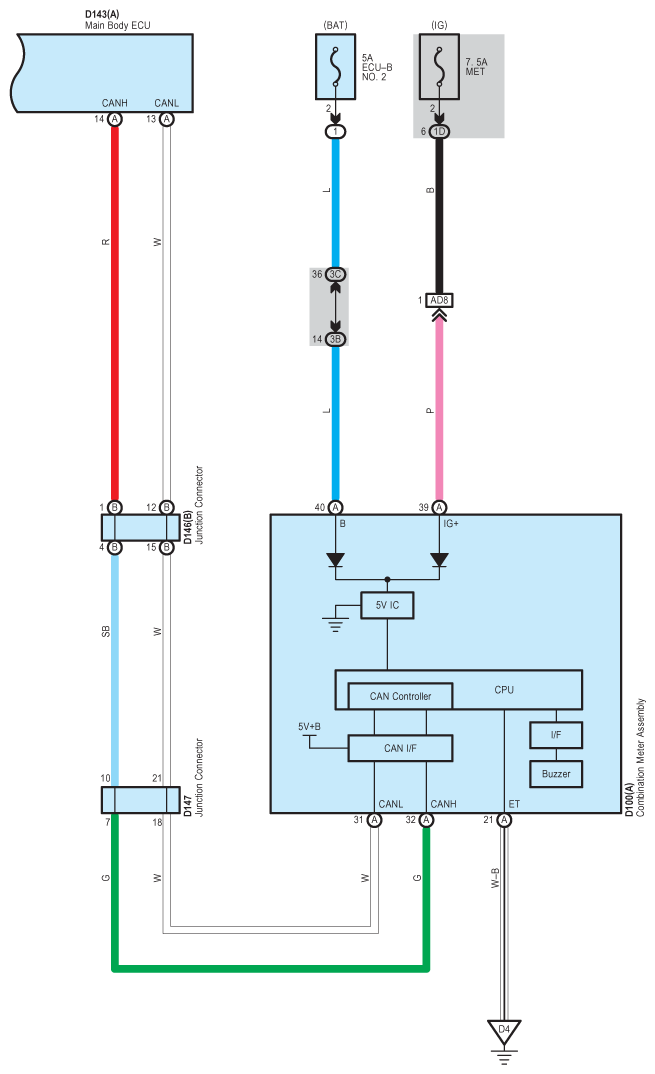

Fig 2: Key Reminder And Light Reminder (H/B) - Circuit Diagram (2 Of 3)

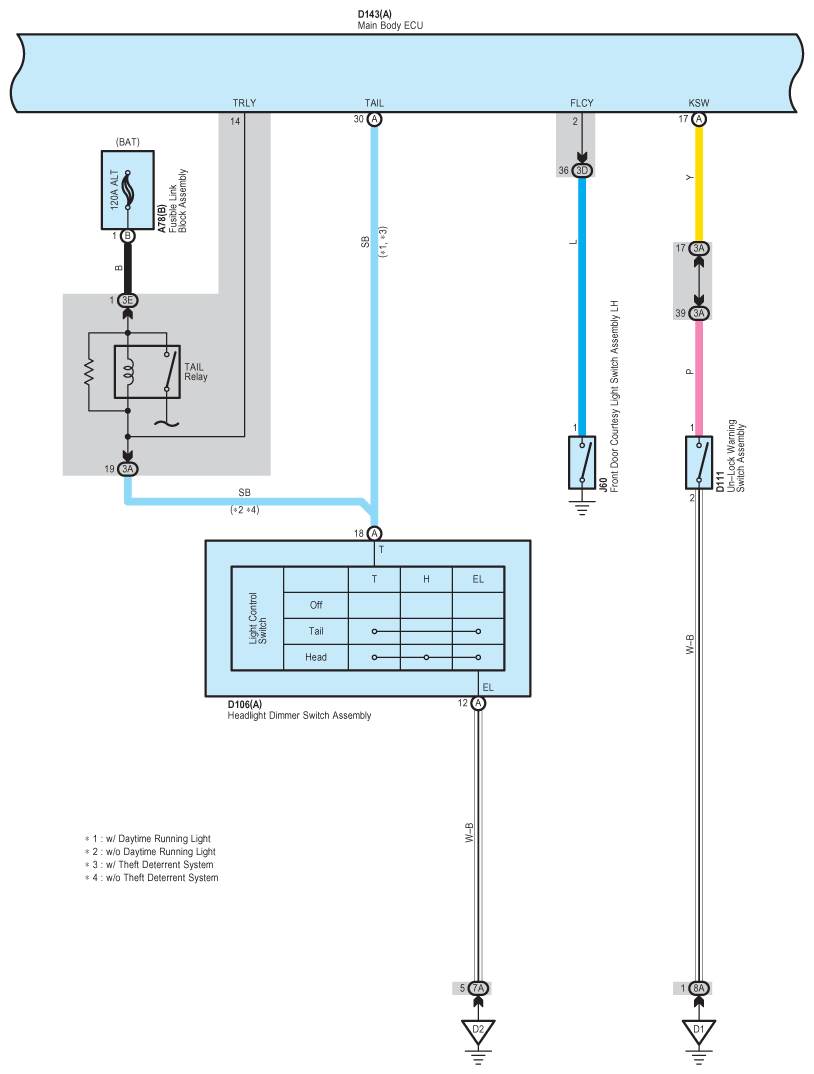

Fig 3: Key Reminder And Light Reminder (H/B) - Circuit Diagram (3 Of 3)
