Front Wiper and Washer (S/D): Notes

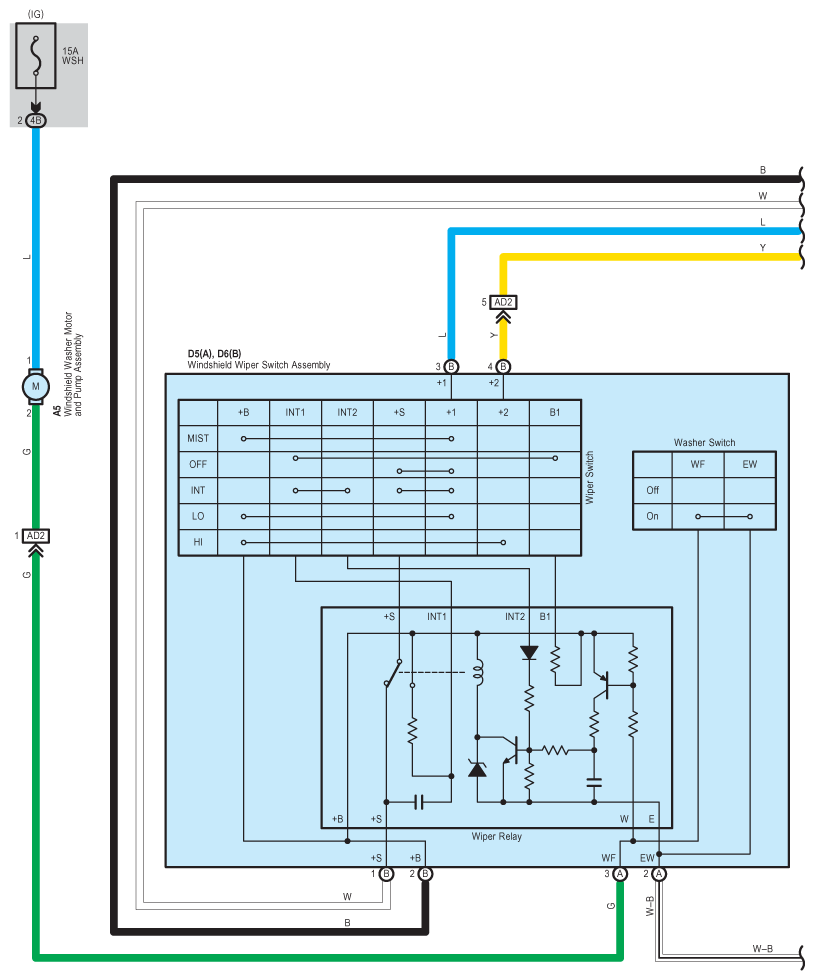

Fig 1: Front Wiper And Washer (S/D) - Circuit Diagram (1 Of 2)
G08949466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

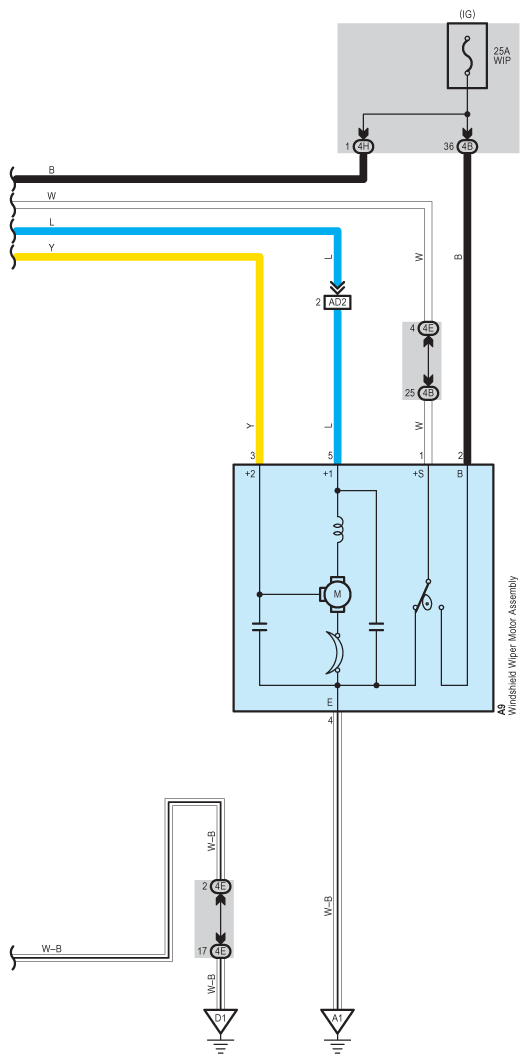

Fig 2: Front Wiper And Washer (S/D) - Circuit Diagram (2 Of 2)
G08949467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
