Front Wiper and Washer (H/B): Notes

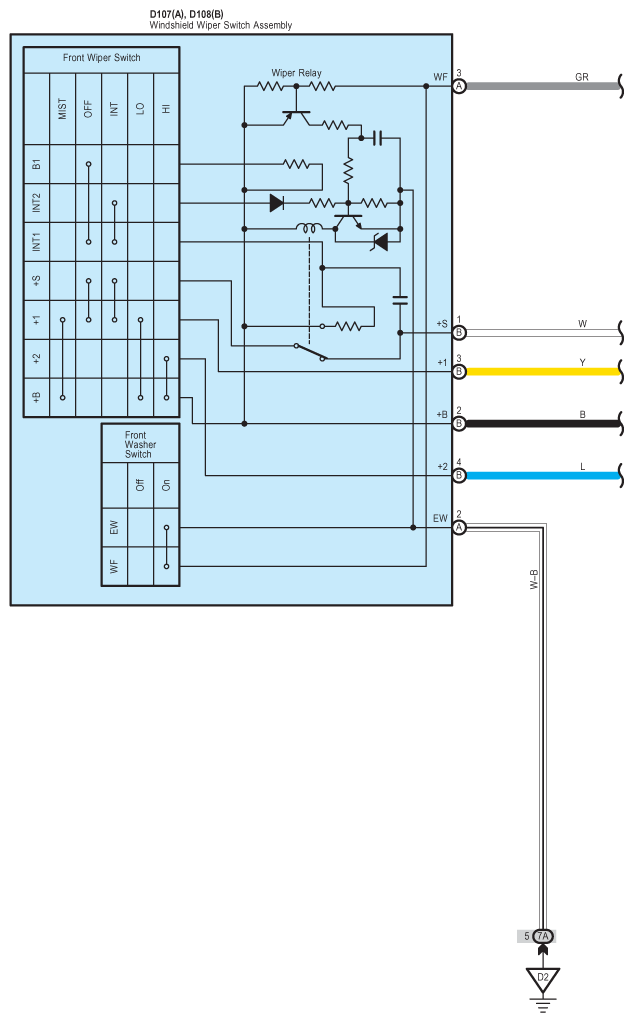

Fig 1: Front Wiper And Washer (H/B) - Circuit Diagram (1 Of 2)
G08949343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

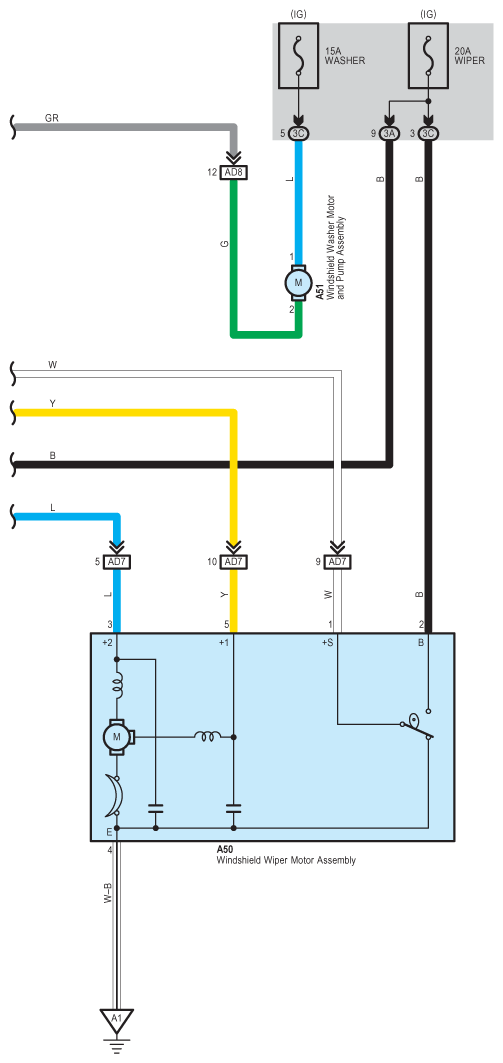

Fig 2: Front Wiper And Washer (H/B) - Circuit Diagram (2 Of 2)
G08949344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
