Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control (H/B): Notes

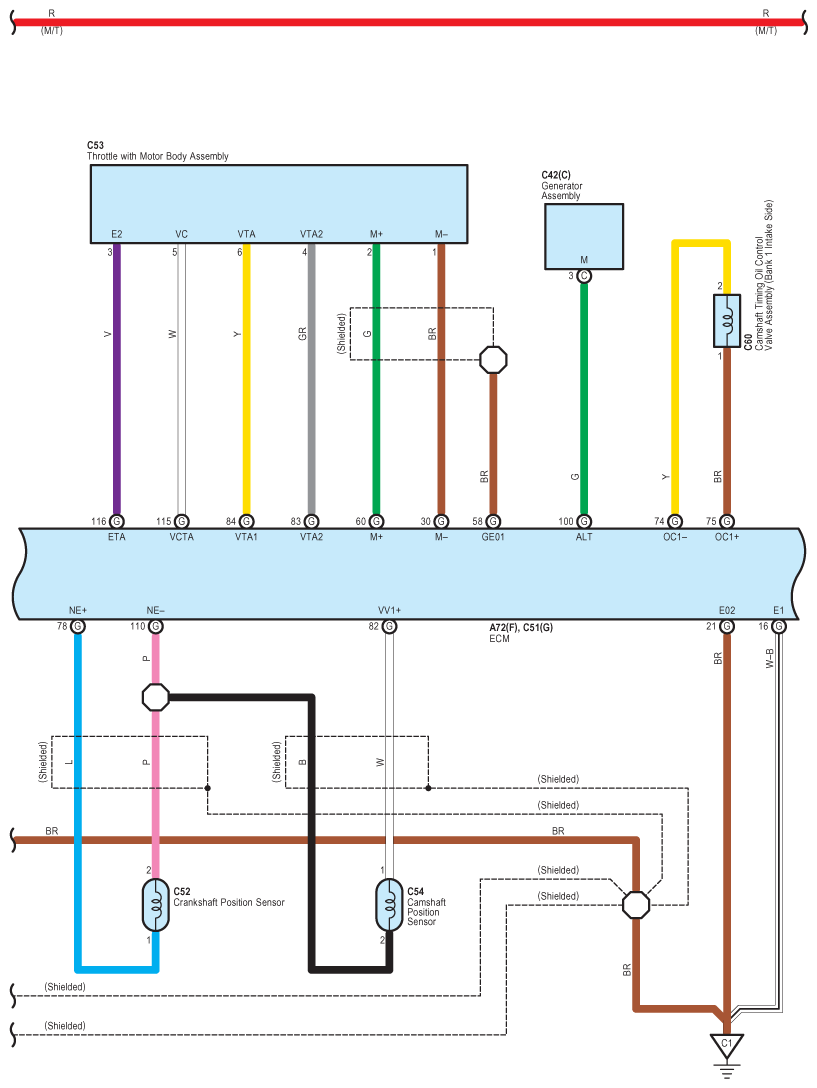

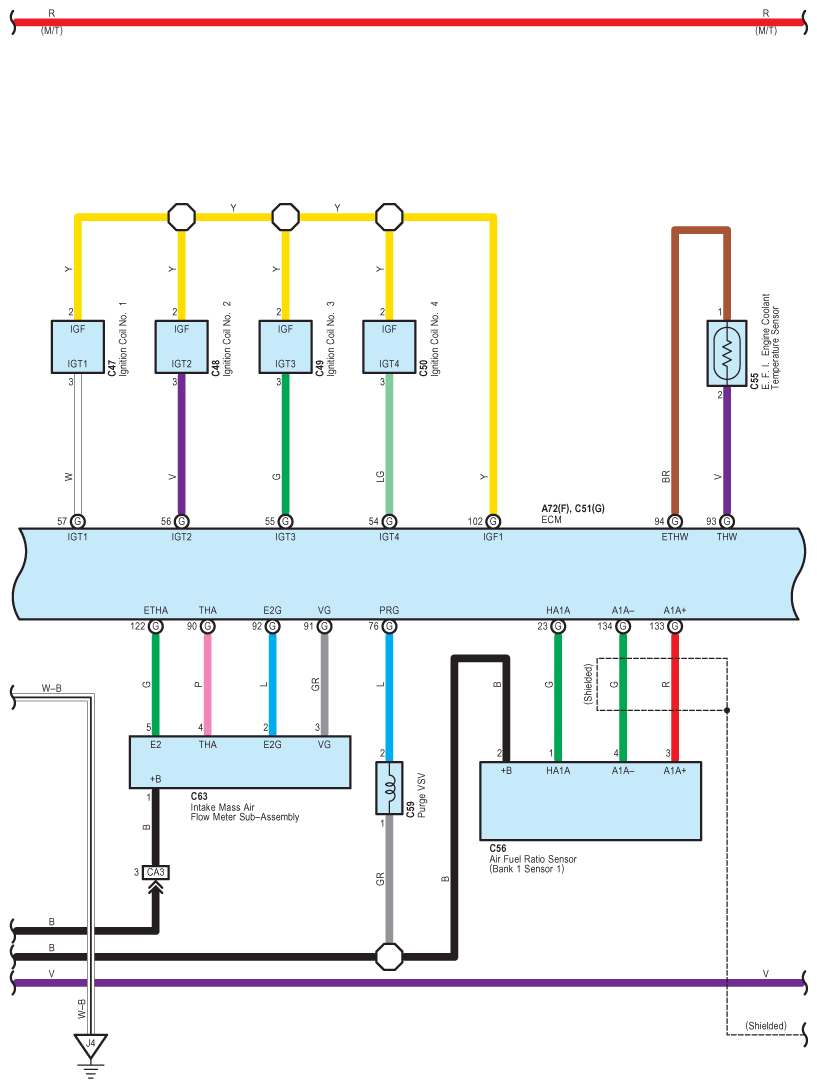

Fig 1: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control (H/B) - Circuit Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

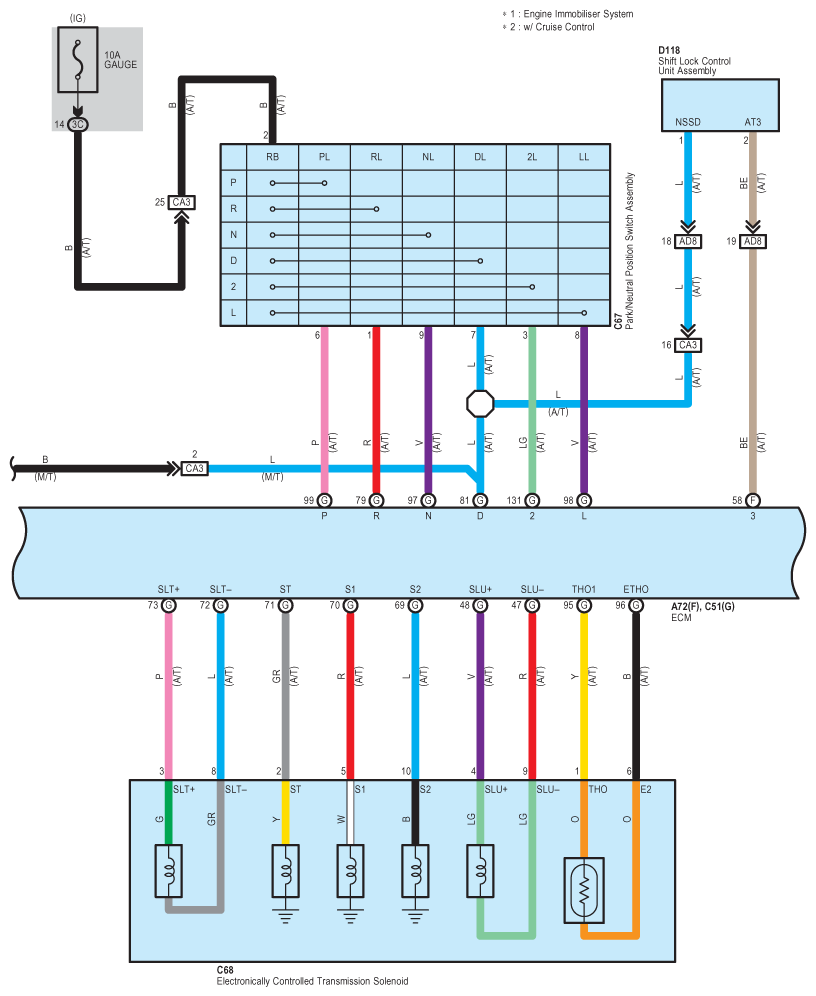

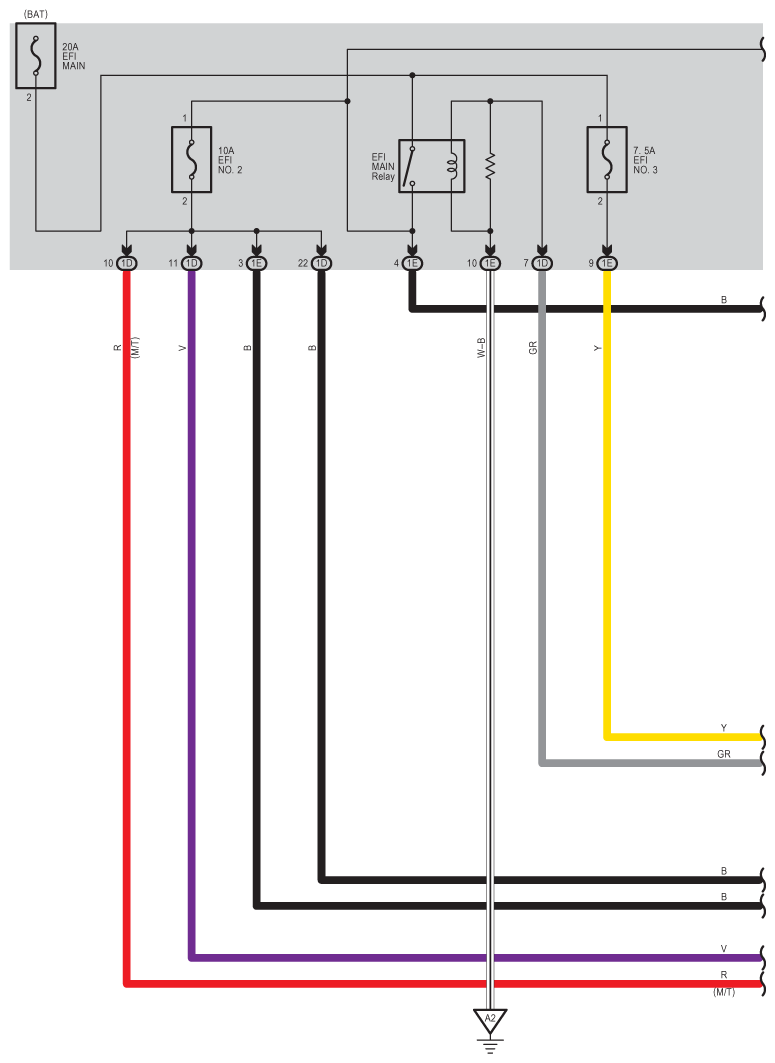

Fig 2: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control (H/B) - Circuit Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

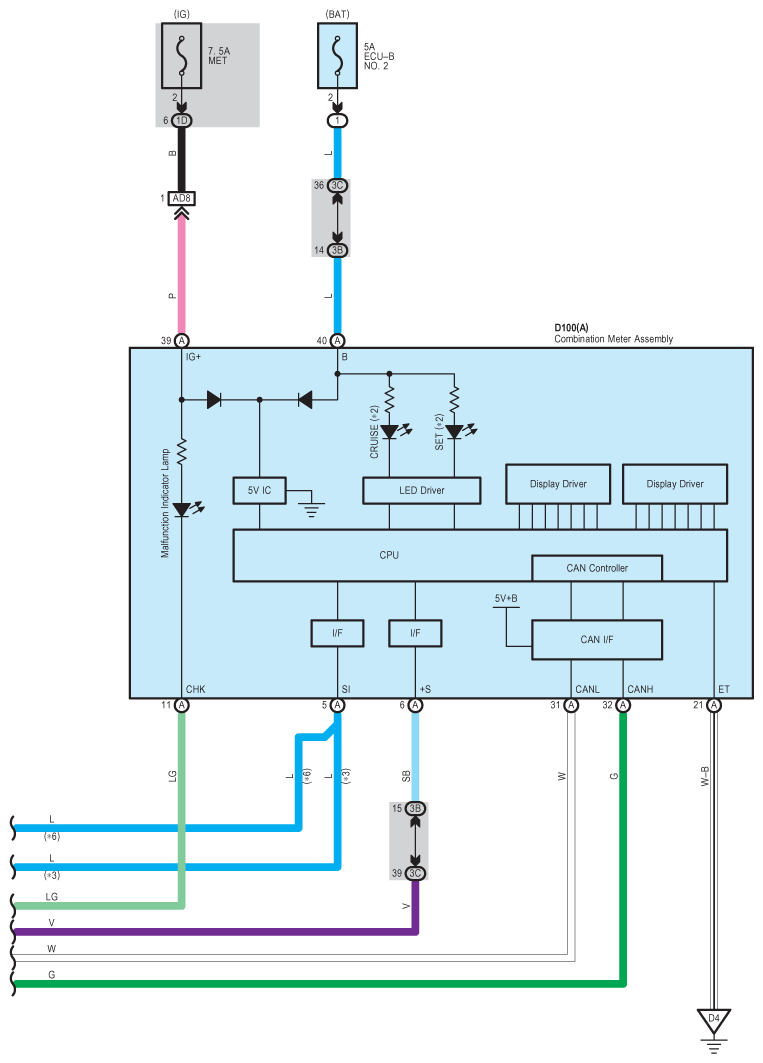

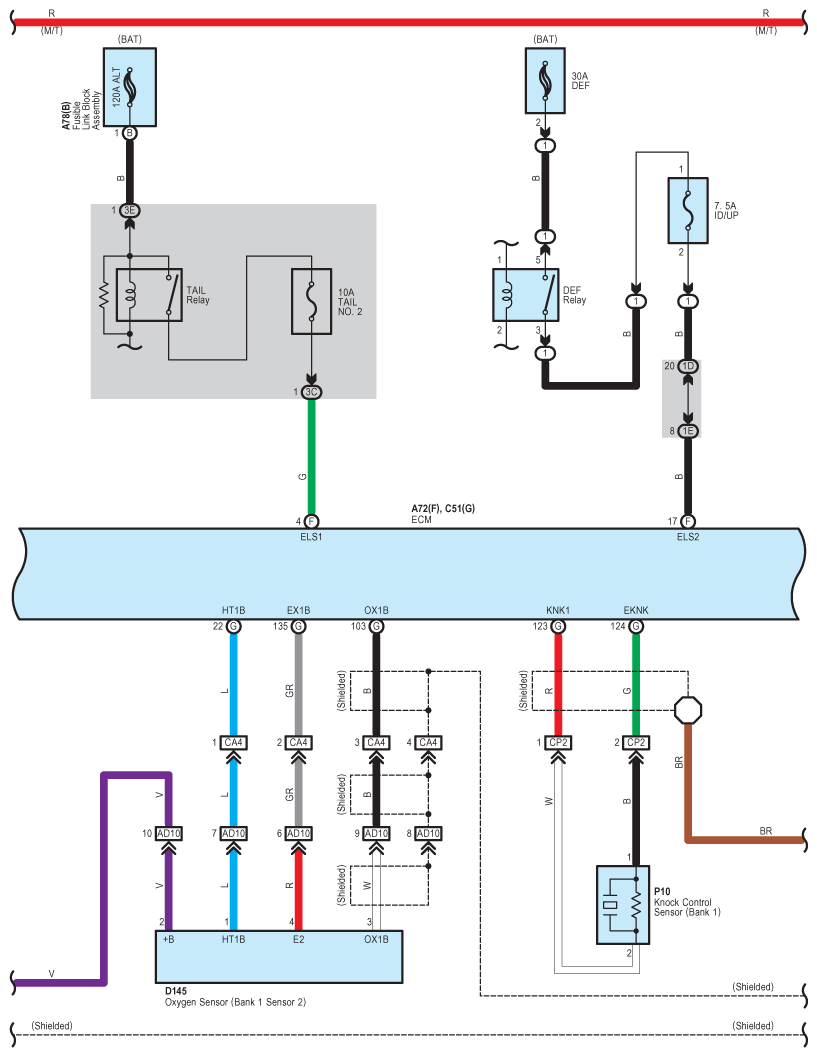

Fig 3: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control (H/B) - Circuit Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

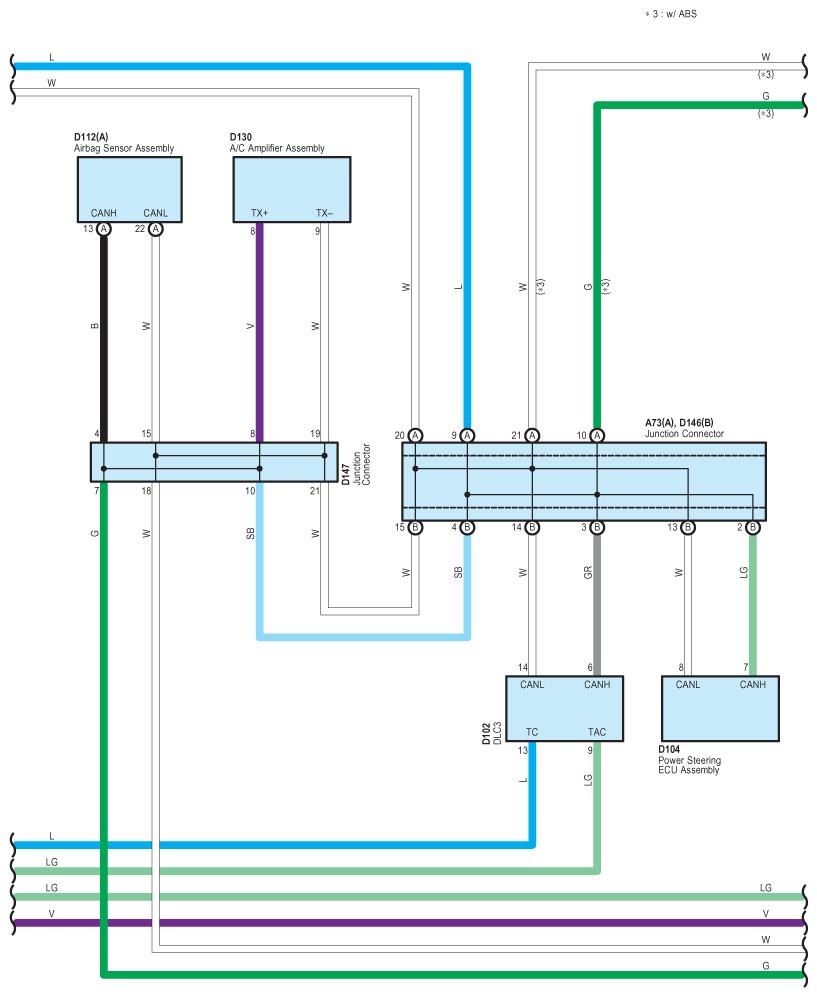

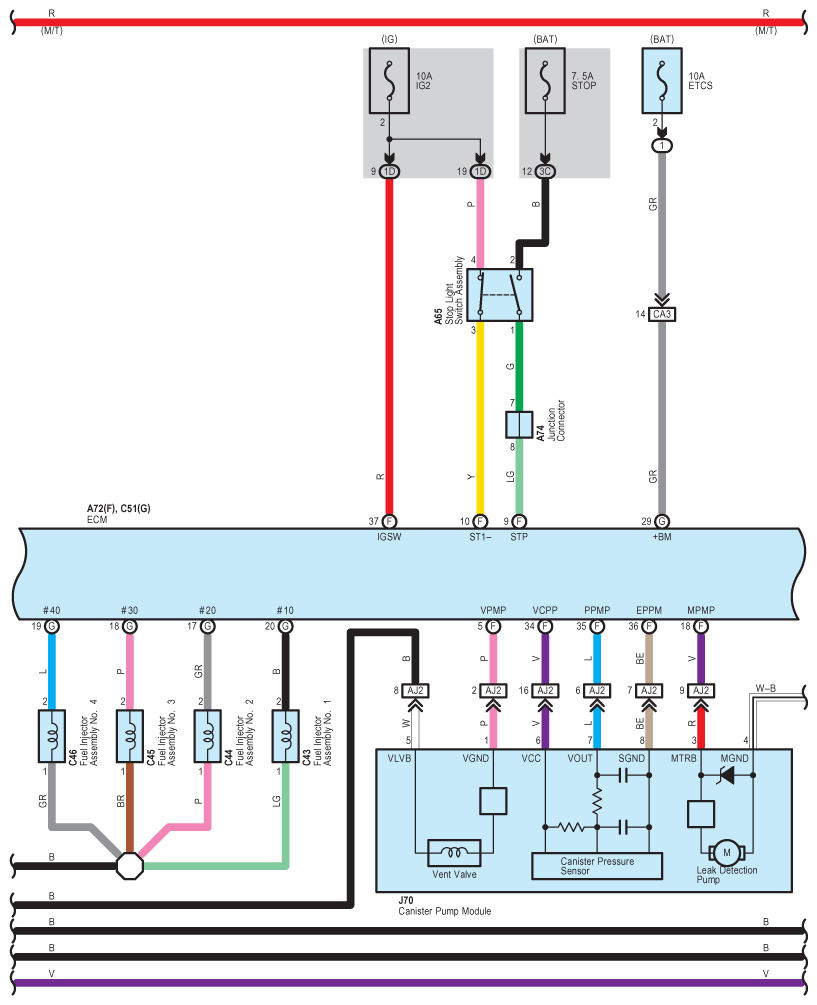

Fig 4: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control (H/B) - Circuit Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

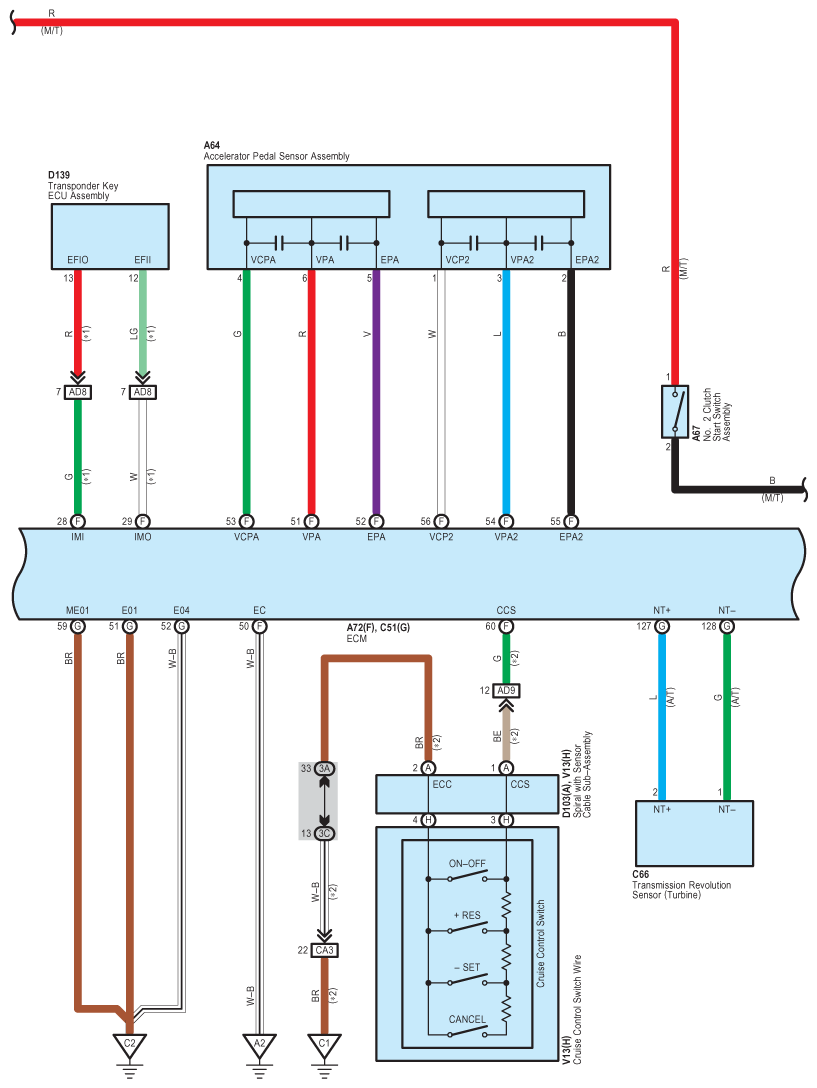

Fig 5: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control (H/B) - Circuit Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

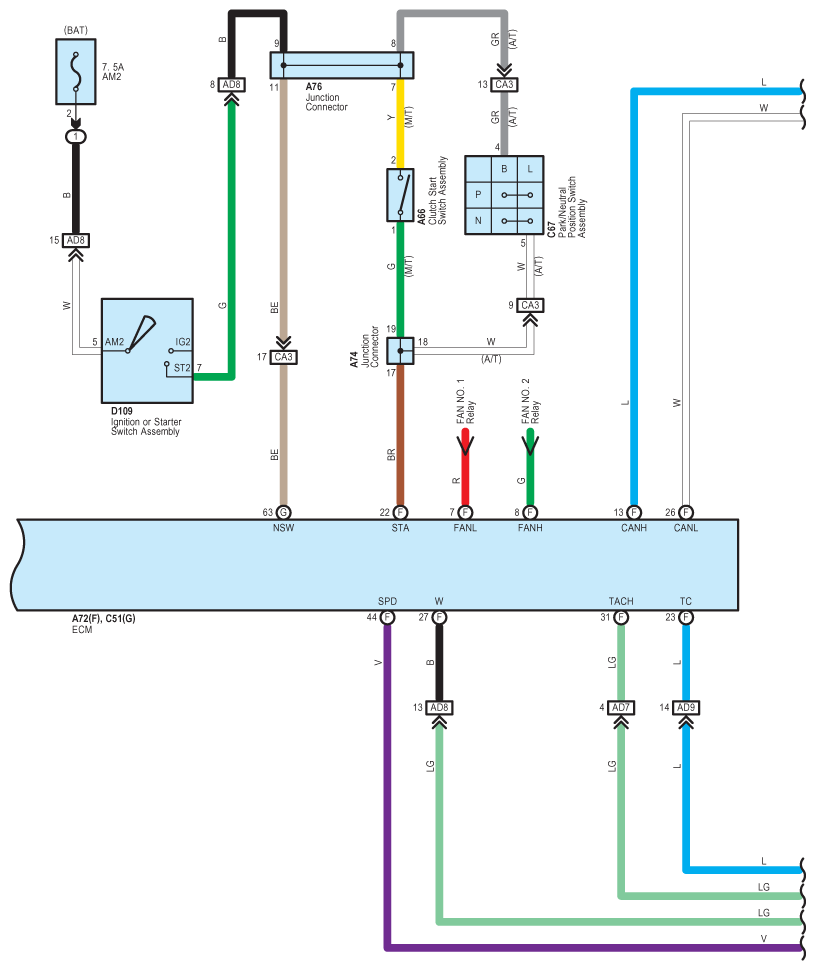

Fig 6: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control (H/B) - Circuit Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

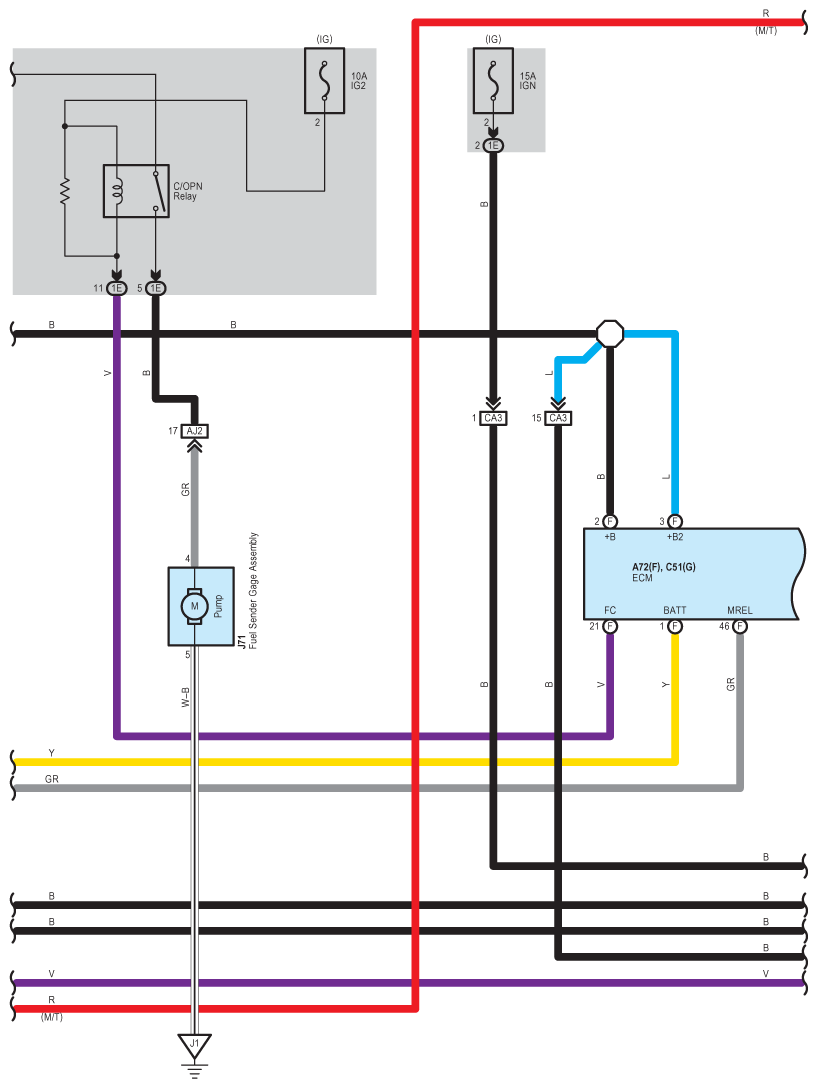

Fig 7: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control (H/B) - Circuit Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

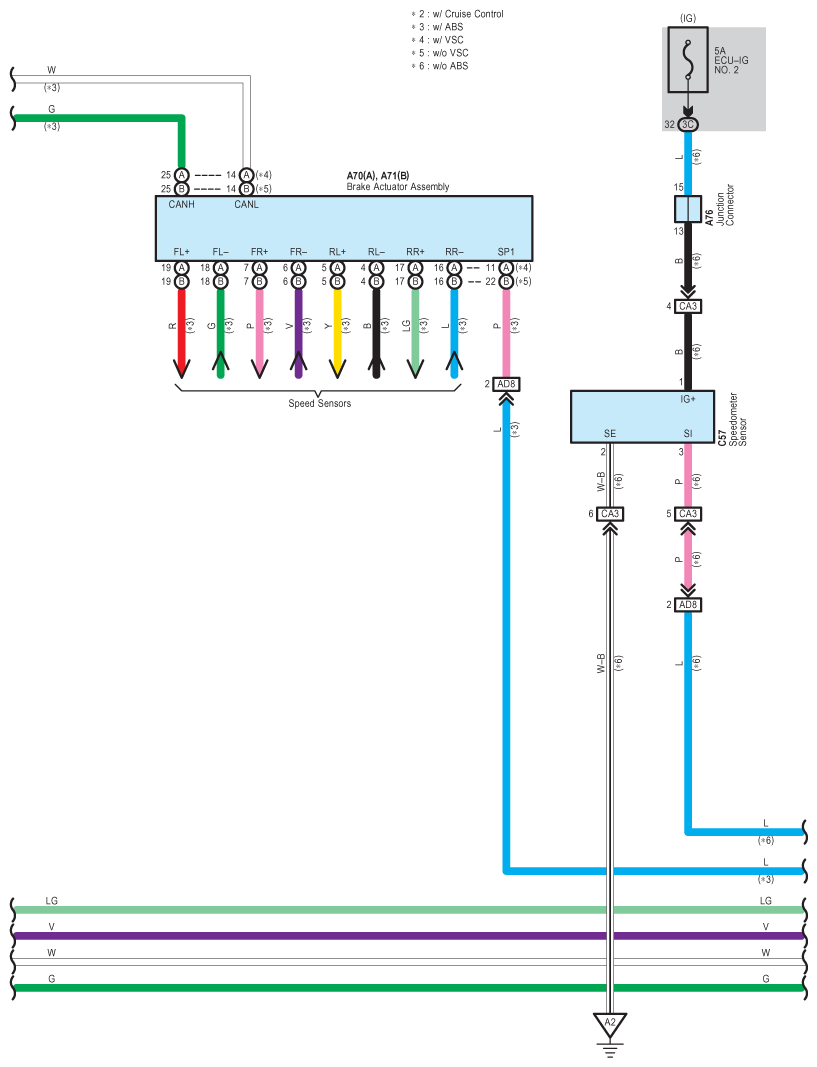

Fig 8: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control (H/B) - Circuit Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control (H/B) - Circuit Diagram (9 Of 12)

Fig 10: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control (H/B) - Circuit Diagram (10 Of 12)

Fig 11: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control (H/B) - Circuit Diagram (11 Of 12)

Fig 12: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control (H/B) - Circuit Diagram (12 Of 12)
