Cooling Fan (S/D): Notes

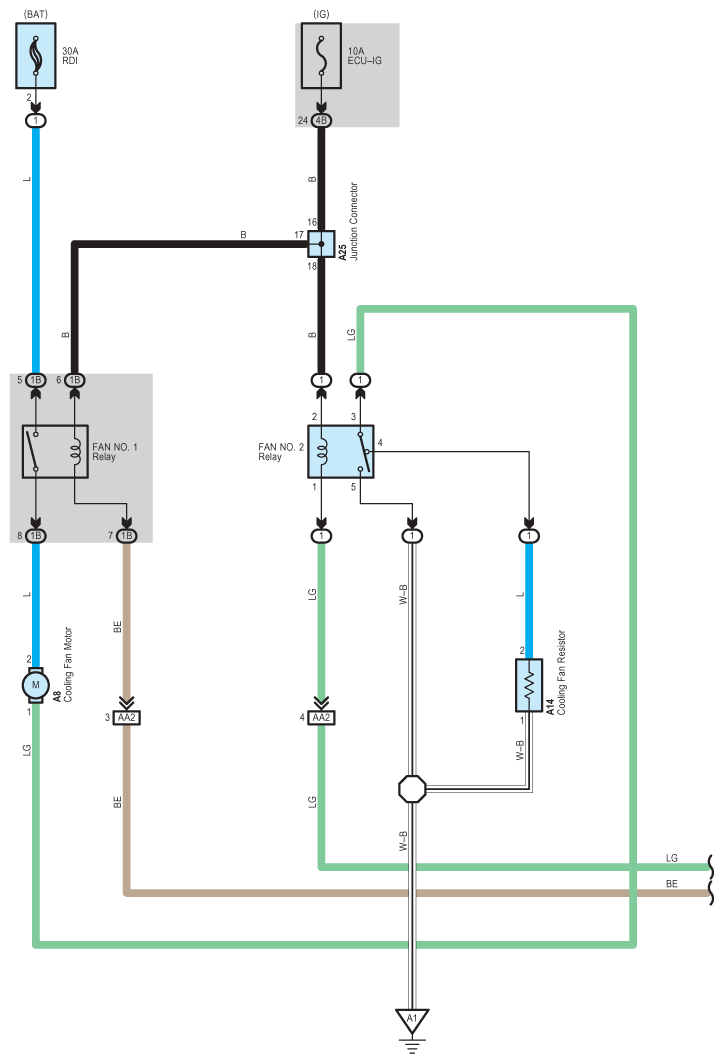

Fig 1: Cooling Fan (S/D) - Circuit Diagram (1 Of 2)
G08949482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

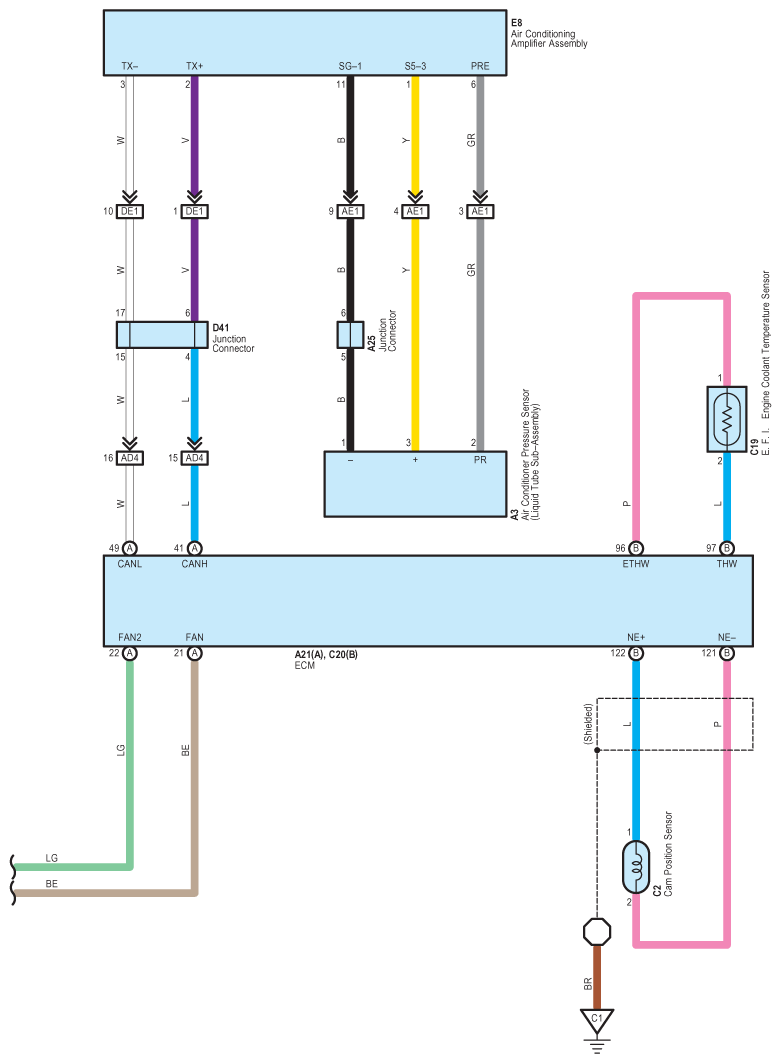

Fig 2: Cooling Fan (S/D) - Circuit Diagram (2 Of 2)
G08949483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
