ABS (w/o VSC) (S/D): Notes

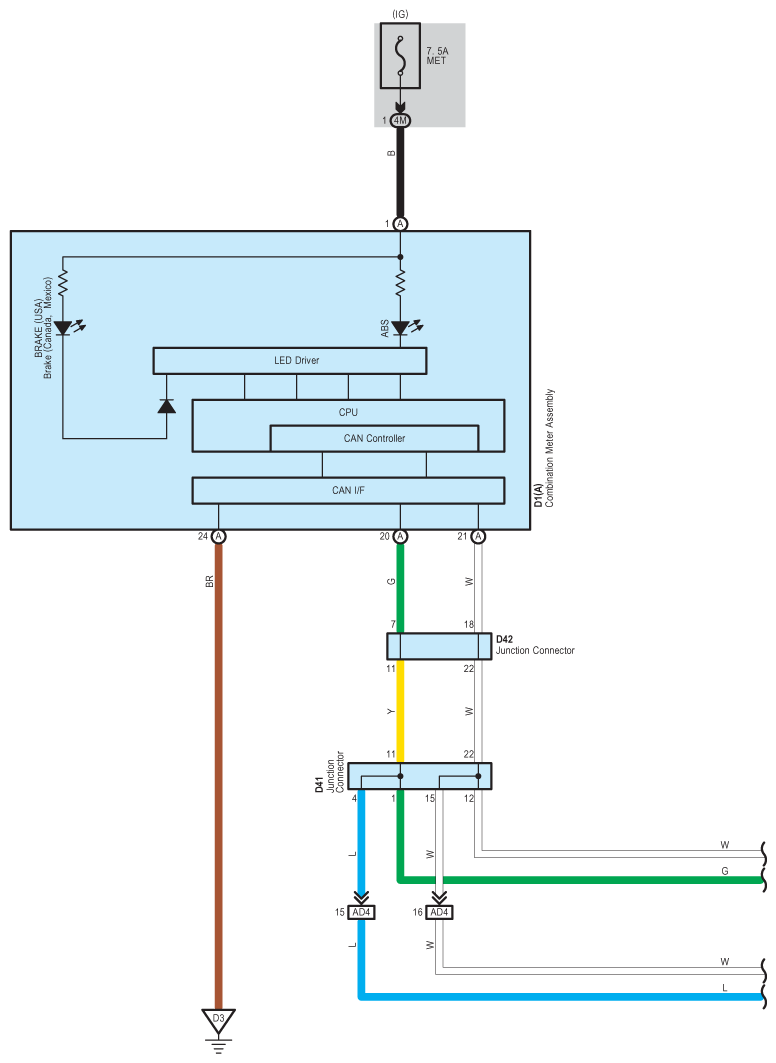

Fig 1: ABS (W/O VSC) (S/D) - Circuit Diagram (1 Of 3)
G08949429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

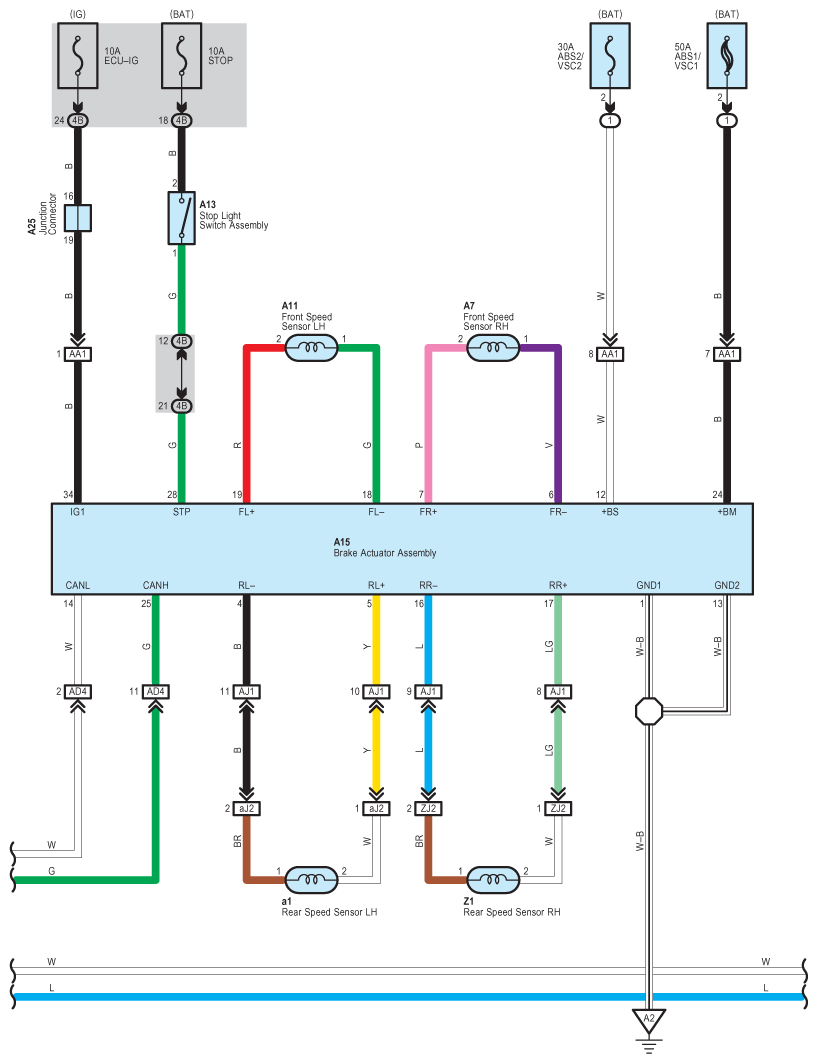

Fig 2: ABS (W/O VSC) (S/D) - Circuit Diagram (2 Of 3)
G08949430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

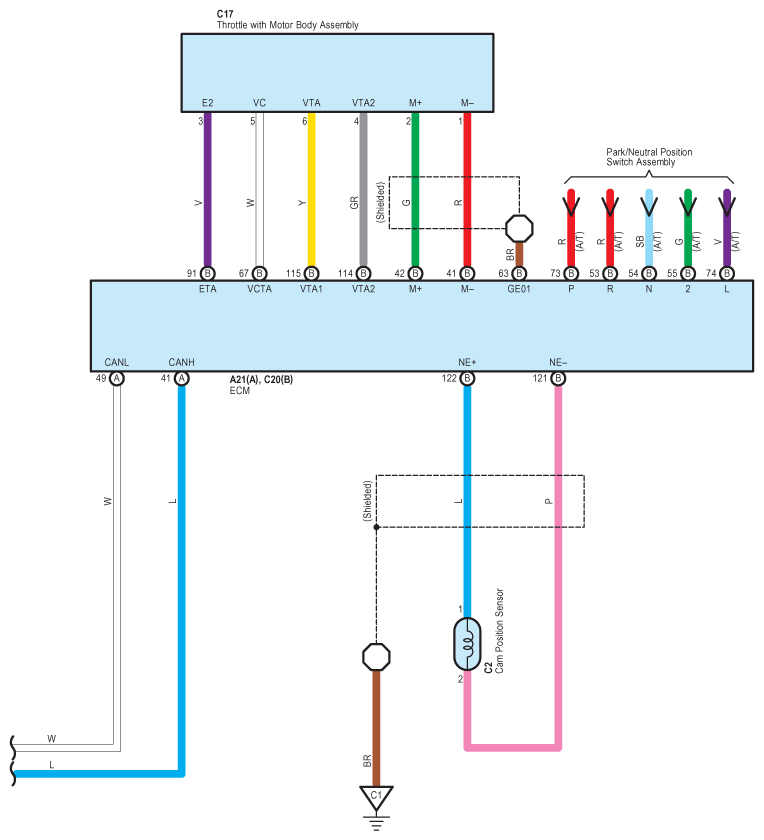

Fig 3: ABS (W/O VSC) (S/D) - Circuit Diagram (3 Of 3)
G08949431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
