Shift Lock (S/D): Notes

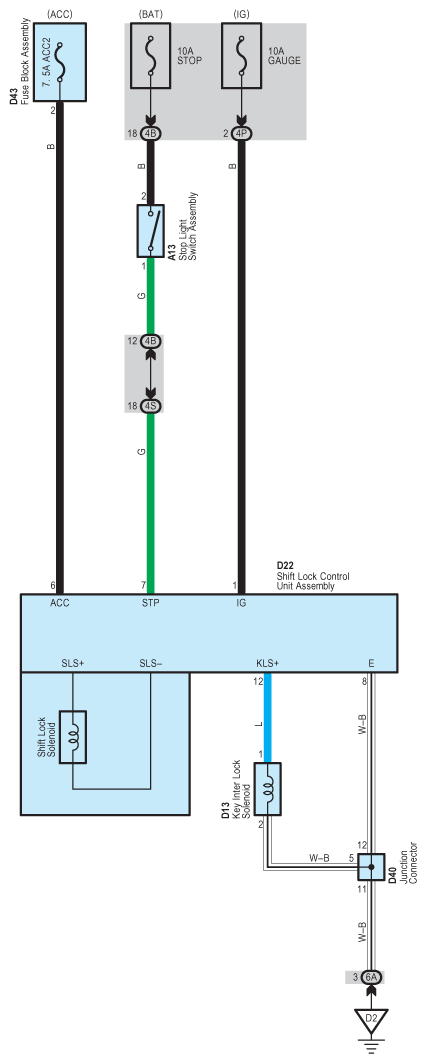

Fig 1: Shift Lock (S/D) - Circuit Diagram

G08949441

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
