Power Window (S/D): Notes

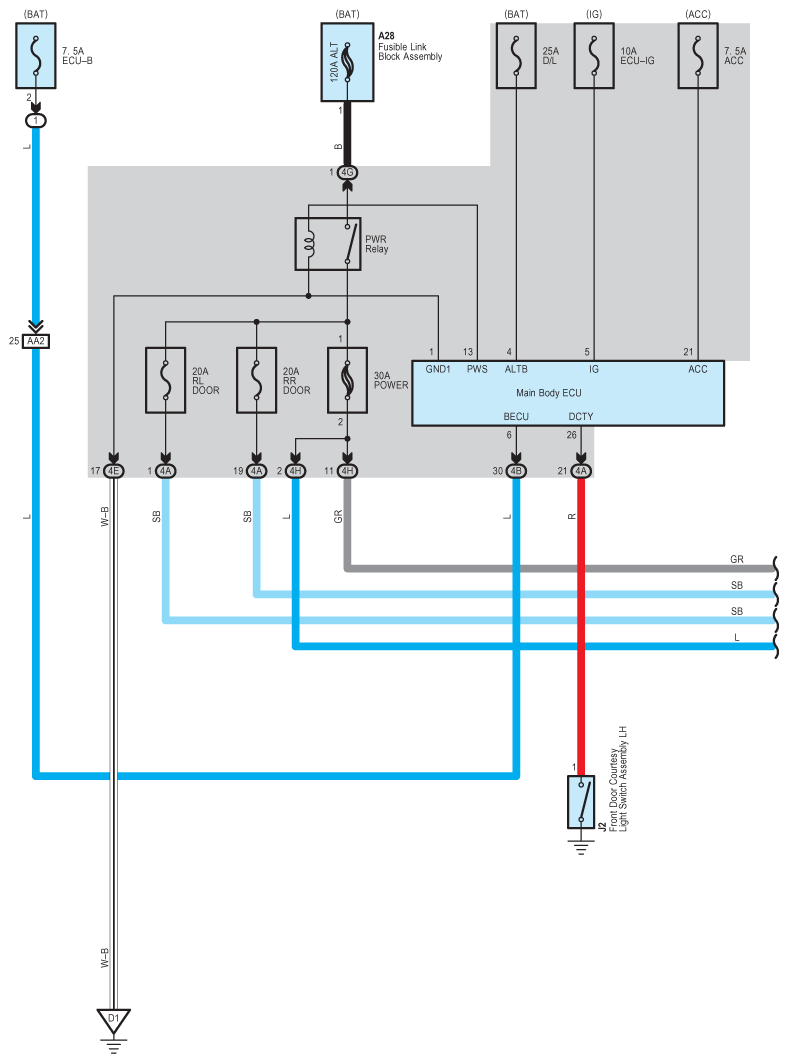

Fig 1: Power Window (S/D) - Circuit Diagram (1 Of 3)
G08949444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

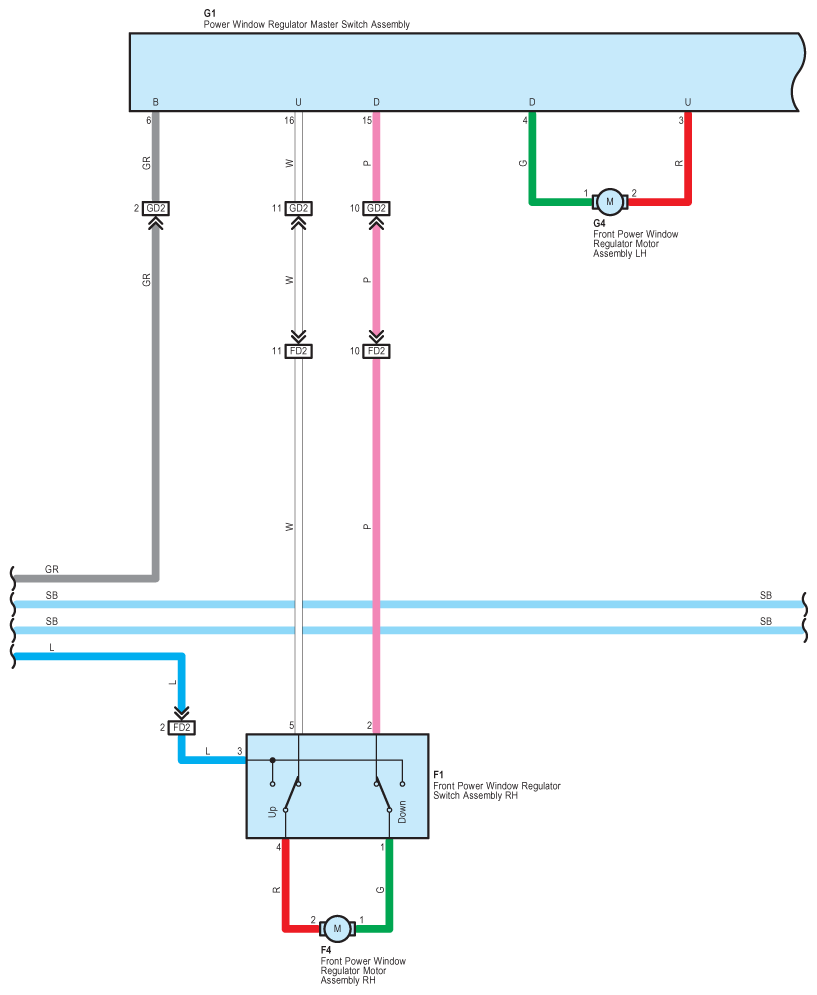

Fig 2: Power Window (S/D) - Circuit Diagram (2 Of 3)
G08949445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

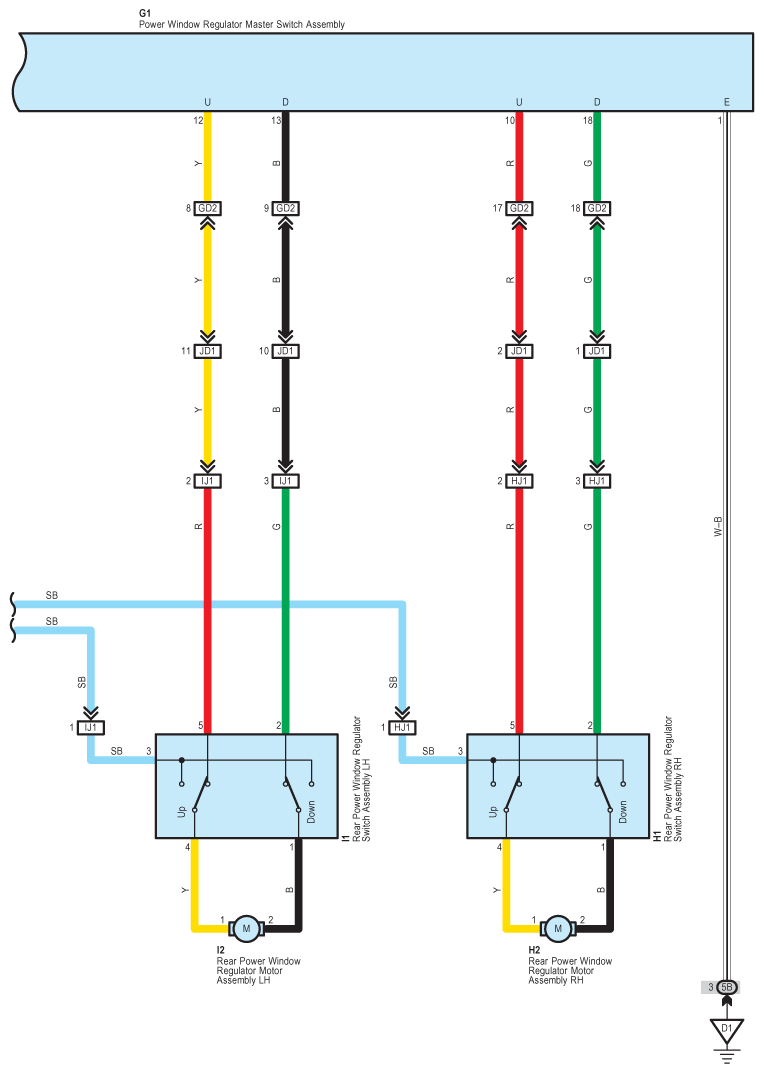

Fig 3: Power Window (S/D) - Circuit Diagram (3 Of 3)
G08949446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
