Toyota
>>
2012
>>
Yaris Base, Automatic Trans
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Back-Up Light (S/D)
>>
Notes
Back-Up Light (S/D): Notes

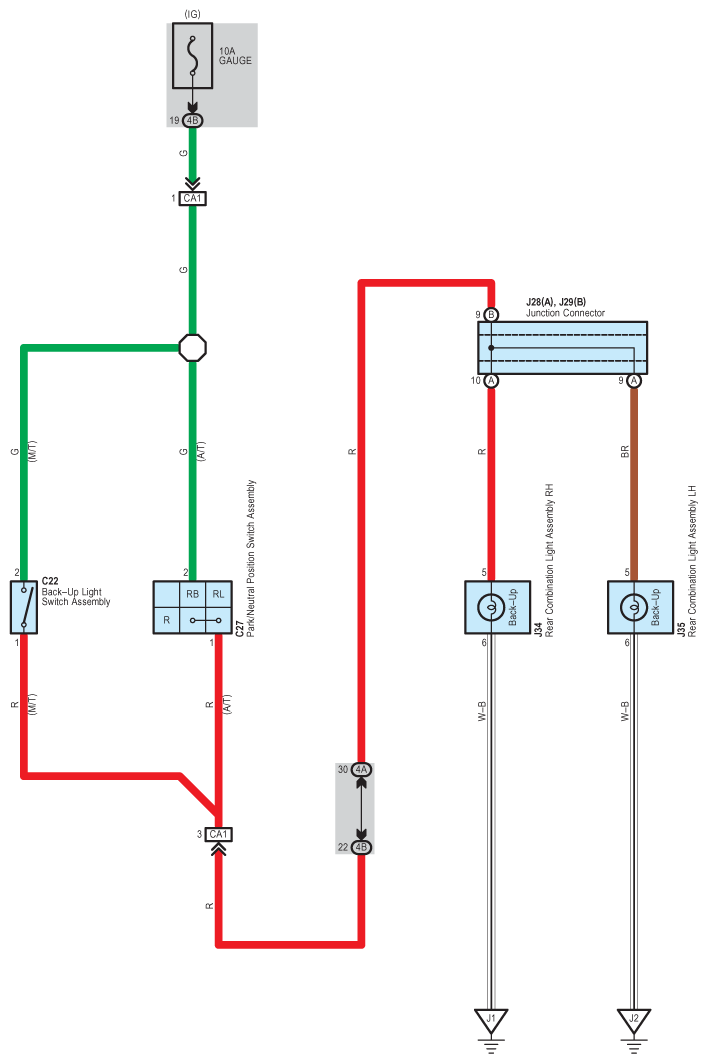

Fig 1: Back-Up Light (S/D) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
