Seat Heater: Notes

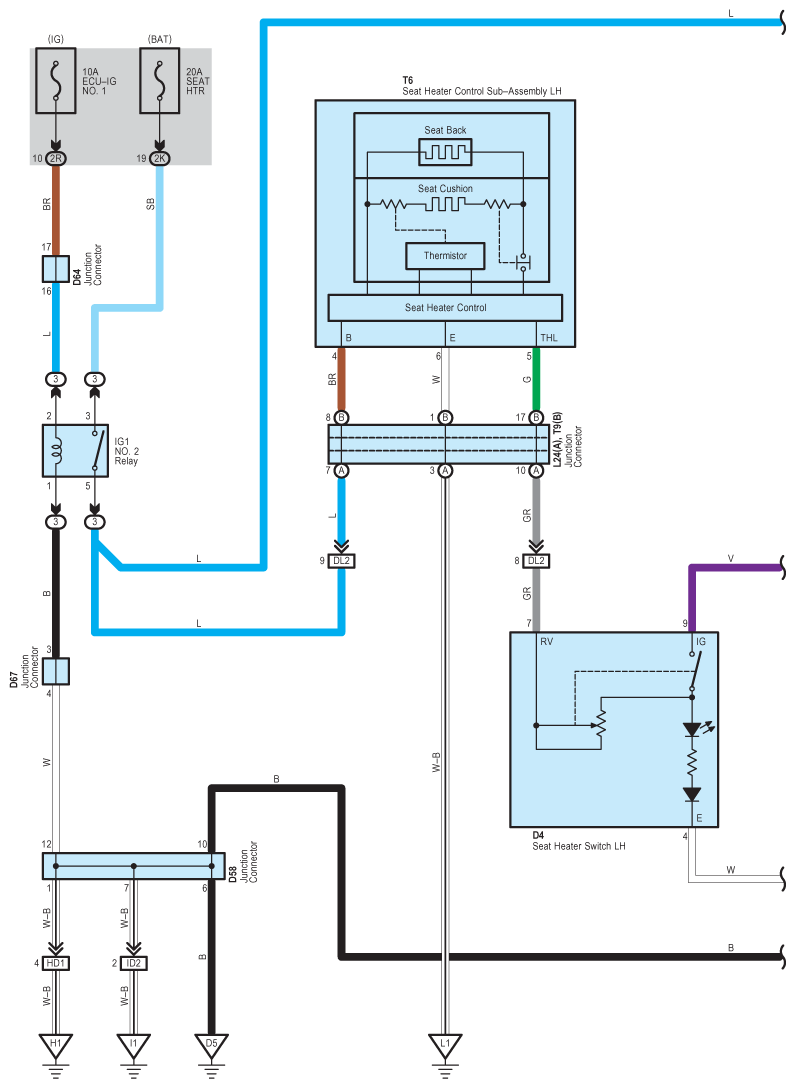

Fig 1: Seat Heater - Circuit Diagram (1 Of 2)
G08969117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

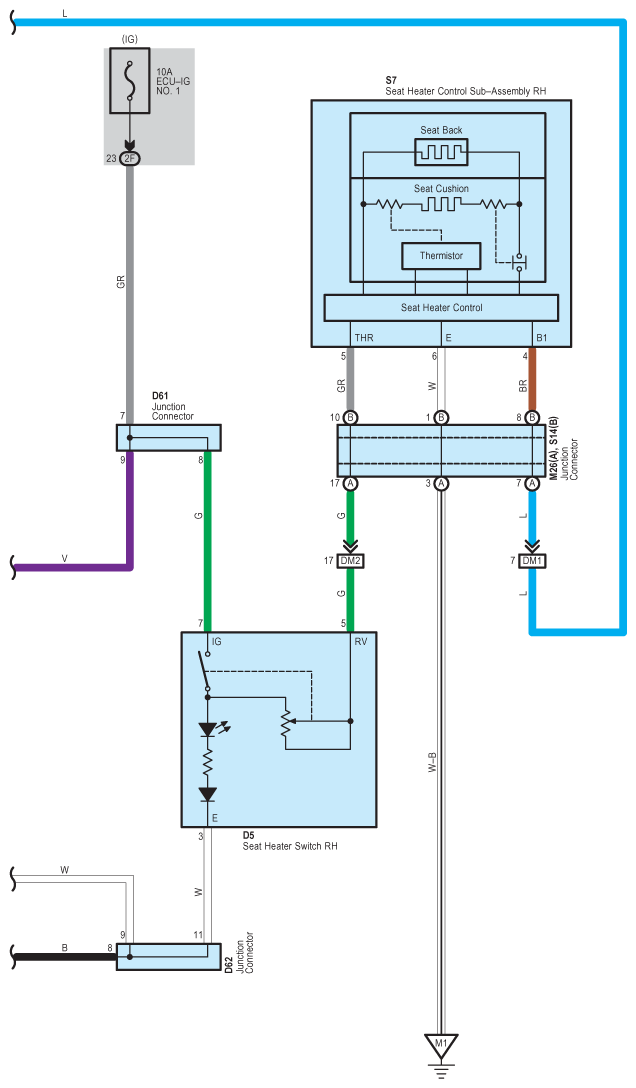

Fig 2: Seat Heater - Circuit Diagram (2 Of 2)
G08969118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
