Engine Immobilizer System (w/o Smart Key System): Notes

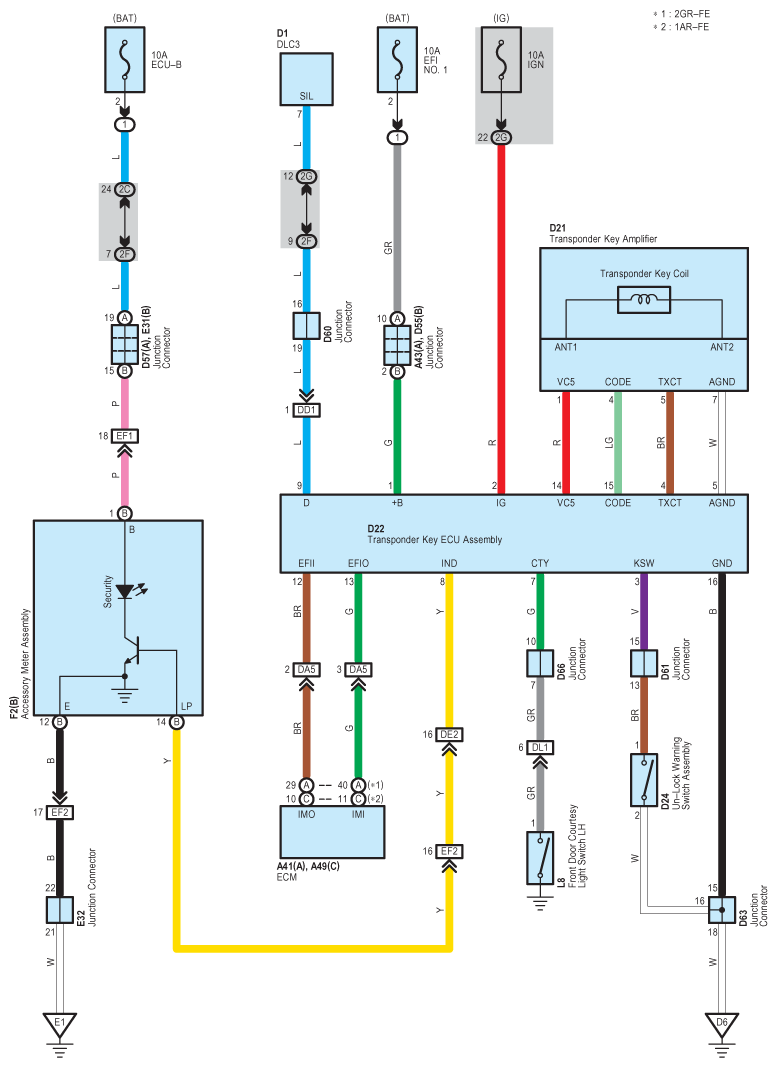

Fig 1: Engine Immobilizer System (W/O Smart Key System) - Circuit Diagram

G08968990

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
