Back-up Light: Notes

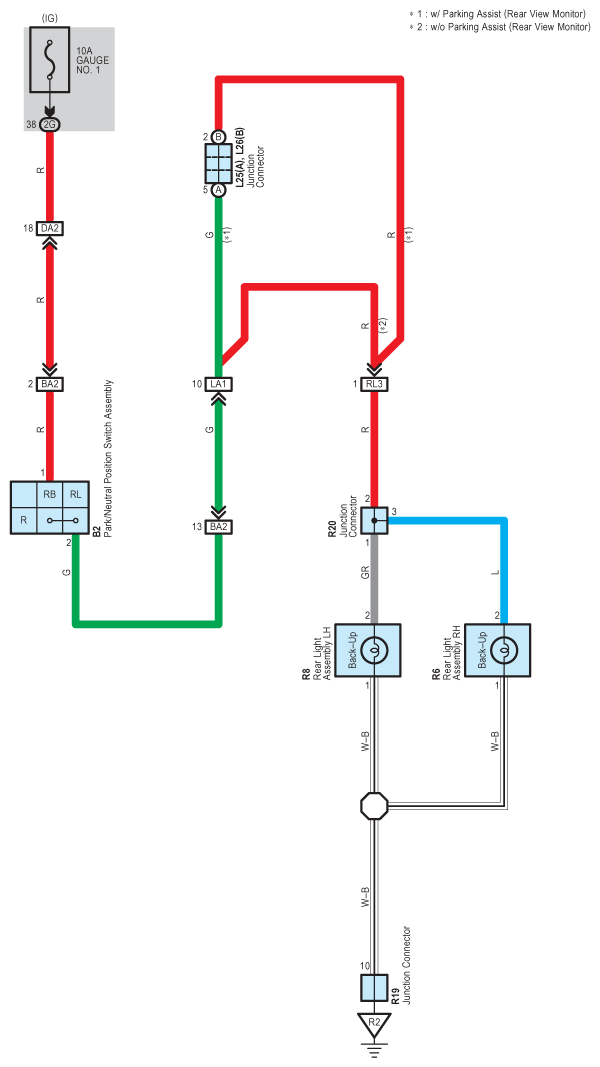

Fig 1: Back-Up Light - Circuit Diagram

G08969016

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
