Trailer Towing: Notes

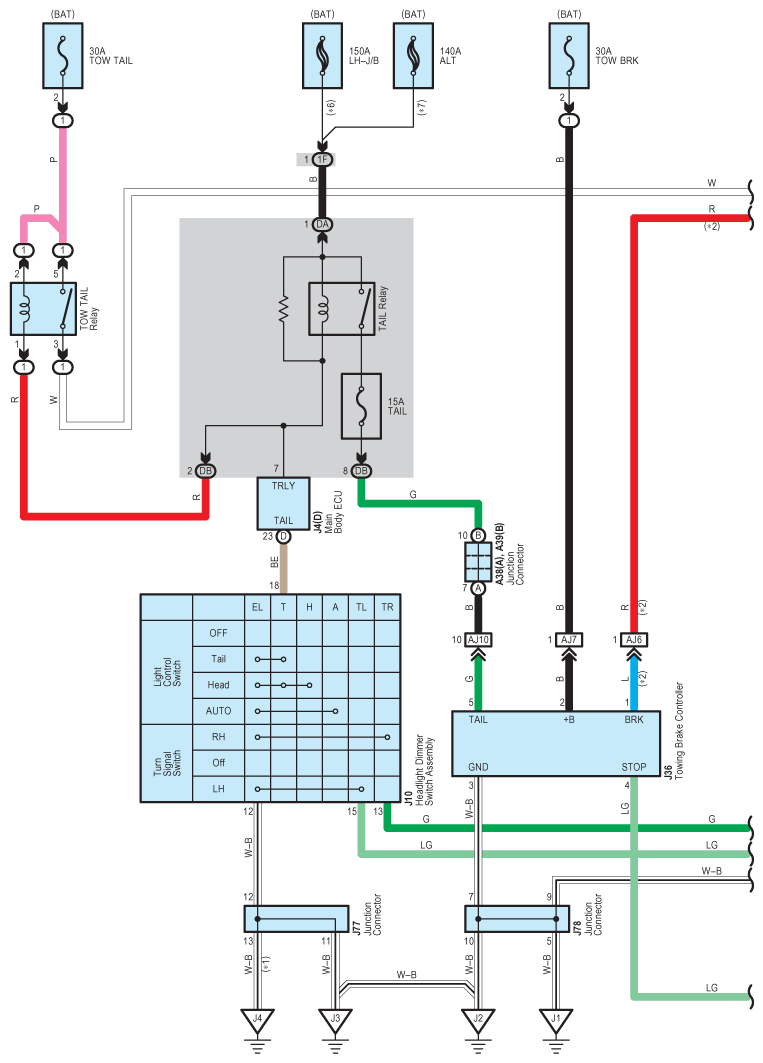

Fig 1: Trailer Towing Wiring Diagram (1 Of 4)
G08861947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

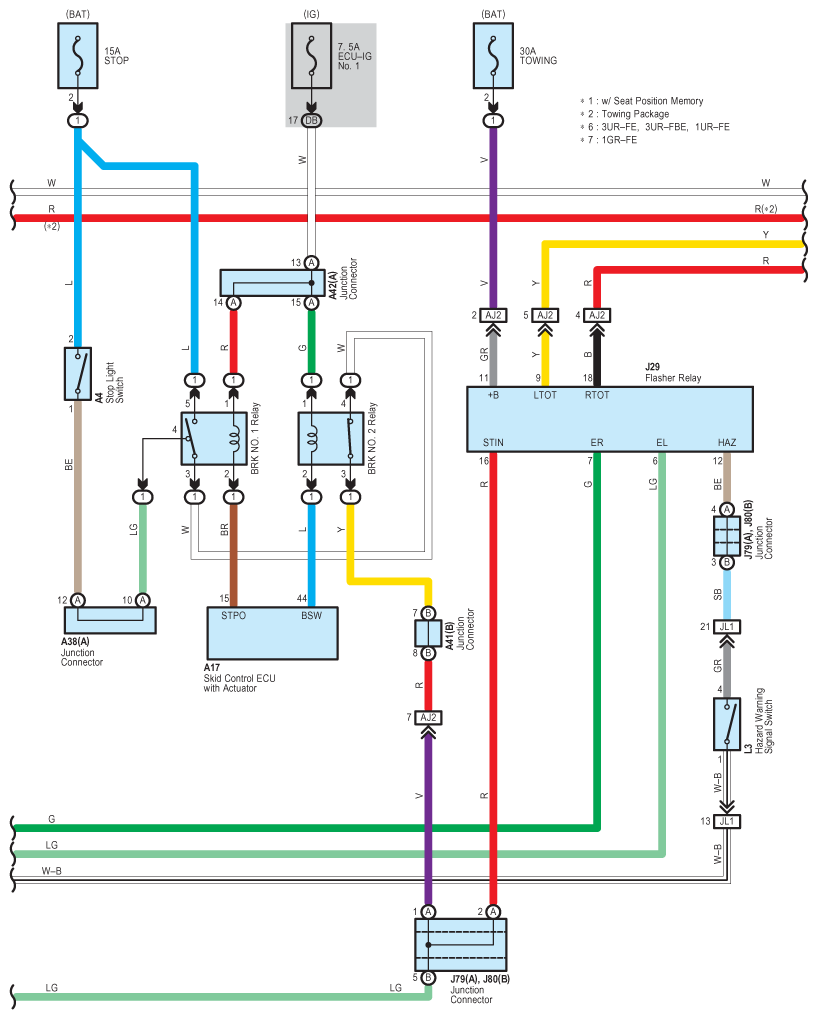

Fig 2: Trailer Towing Wiring Diagram (2 Of 4)
G08861948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

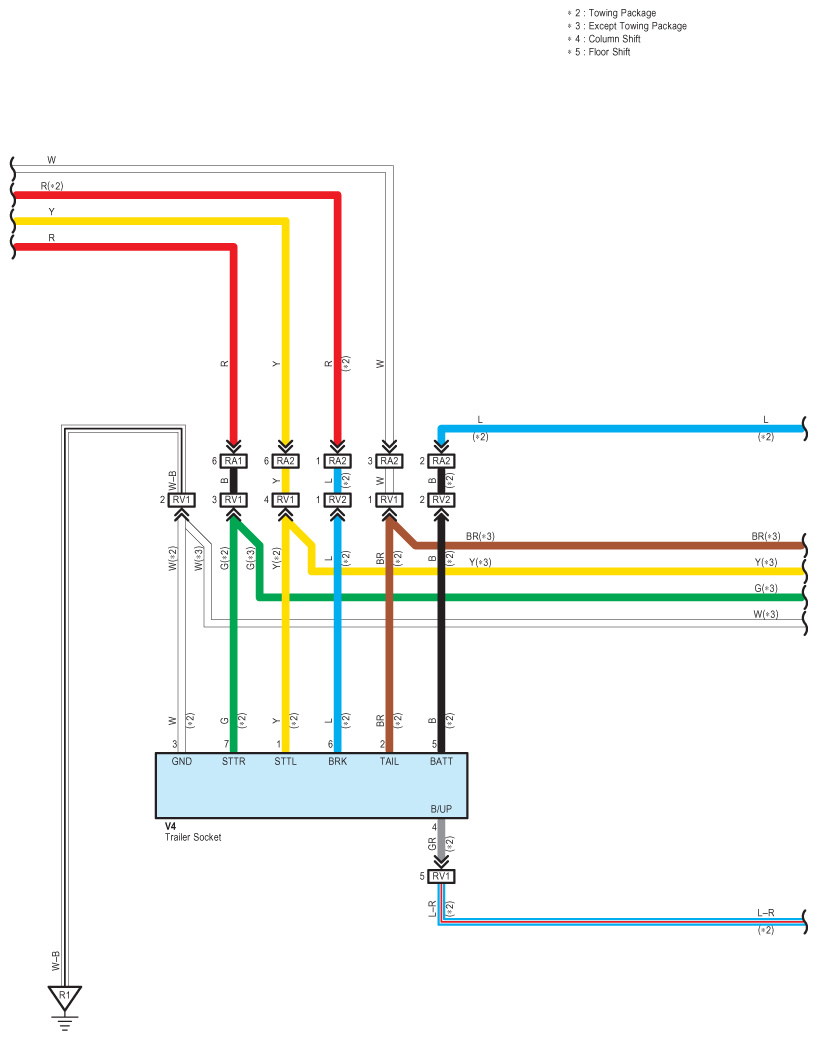

Fig 3: Trailer Towing Wiring Diagram (3 Of 4)
G08861949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

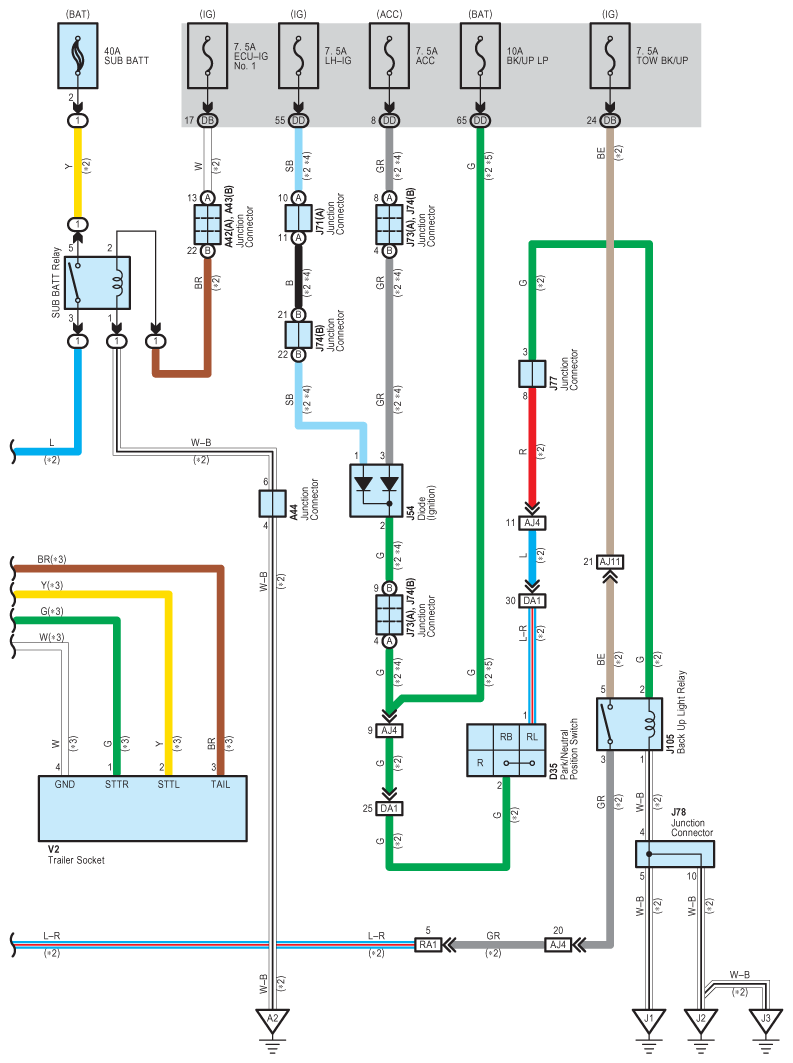

Fig 4: Trailer Towing Wiring Diagram (4 Of 4)
G08861950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
