OEM System Circuits: Taillight: Notes

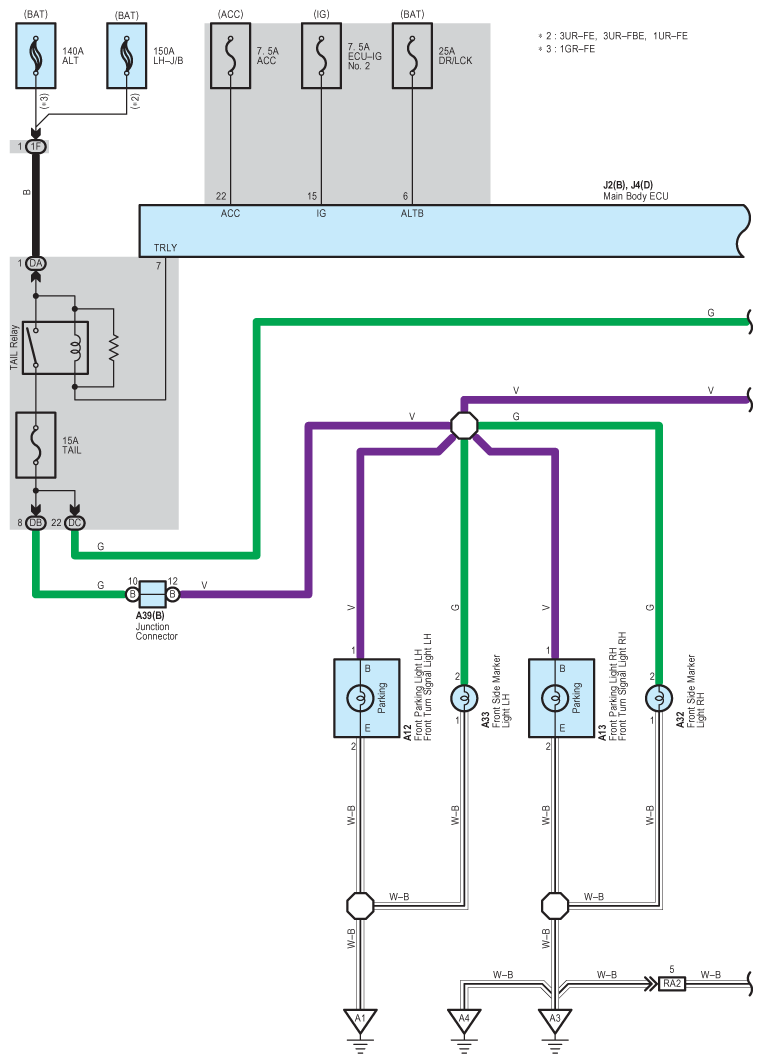

Fig 1: Taillight Wiring Diagram (1 Of 3)
G08861923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

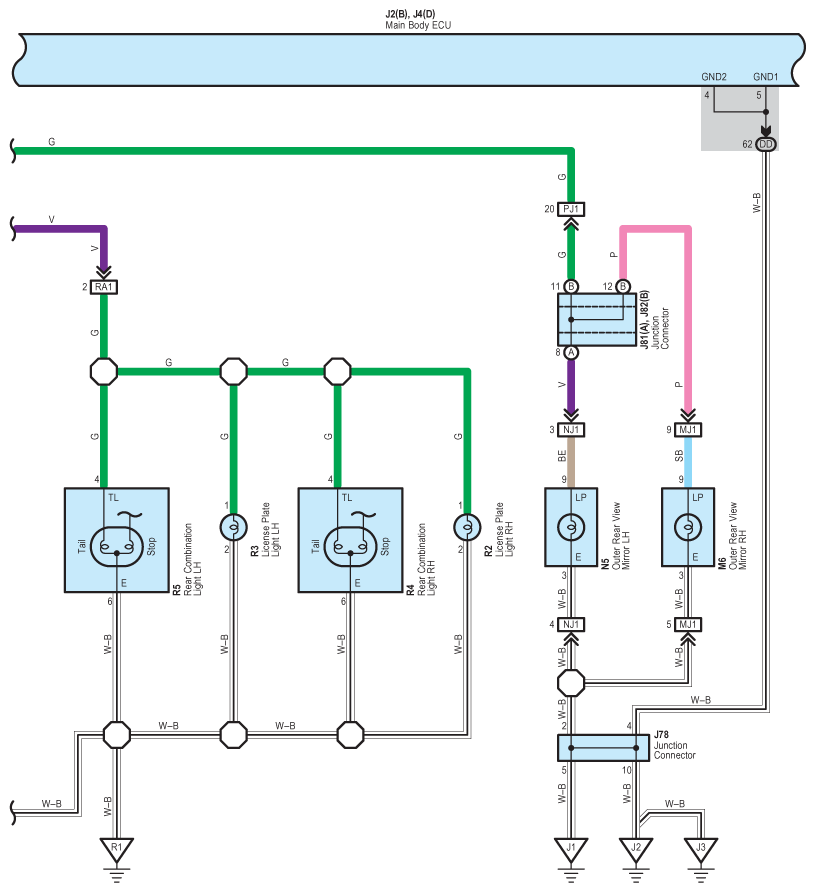

Fig 2: Taillight Wiring Diagram (2 Of 3)
G08861924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

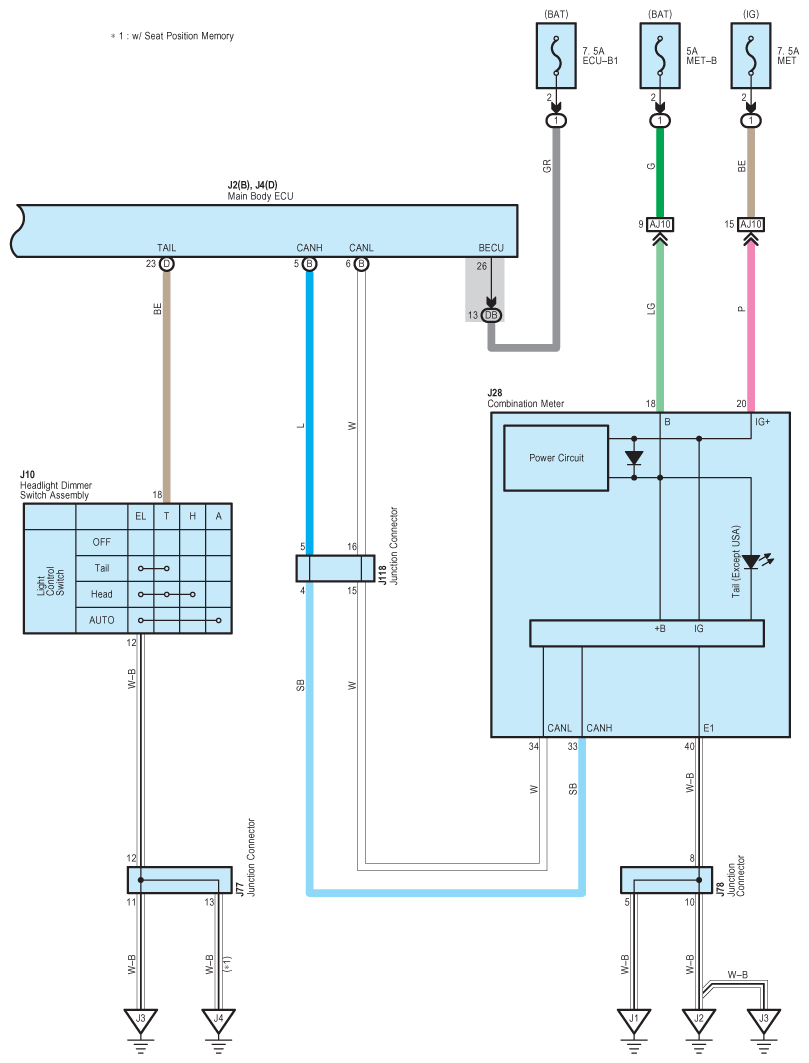

Fig 3: Taillight Wiring Diagram (3 Of 3)
G08861925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
