Sliding Roof: Notes

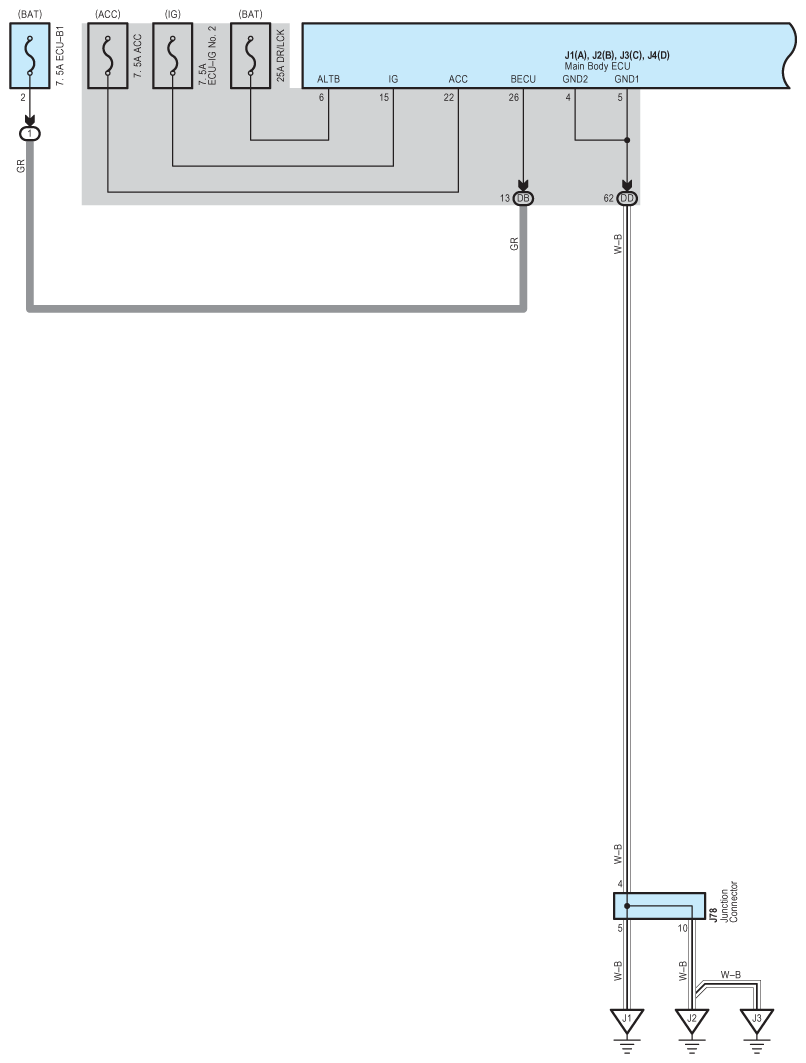

Fig 1: Sliding Roof Wiring Diagram (1 Of 3)
G08862066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

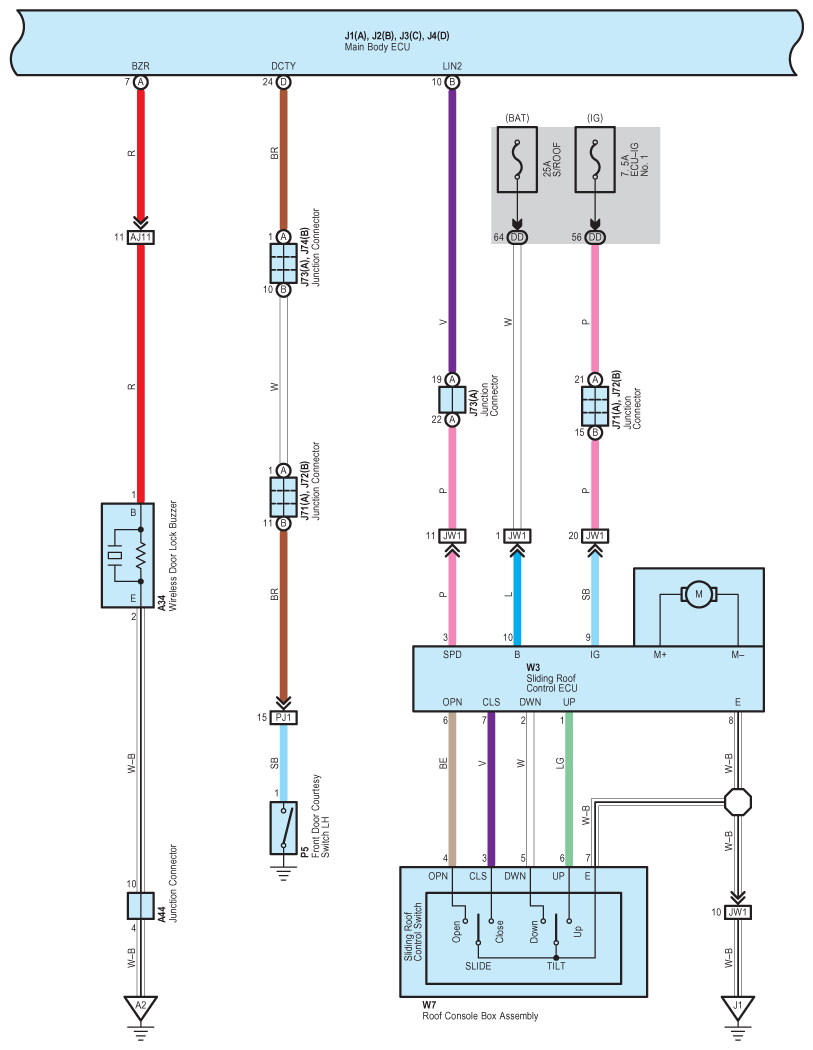

Fig 2: Sliding Roof Wiring Diagram (2 Of 3)
G08862067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

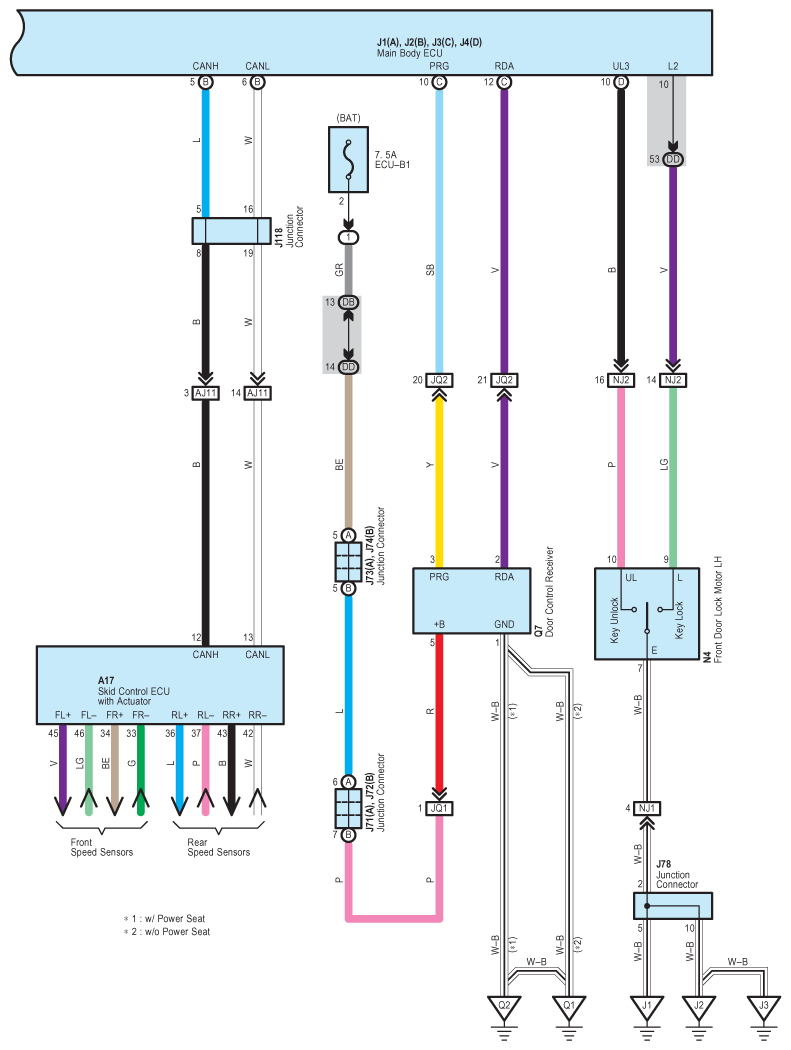

Fig 3: Sliding Roof Wiring Diagram (3 Of 3)
G08862068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
