Remote Control Mirror (w/Seat Position Memory): Notes

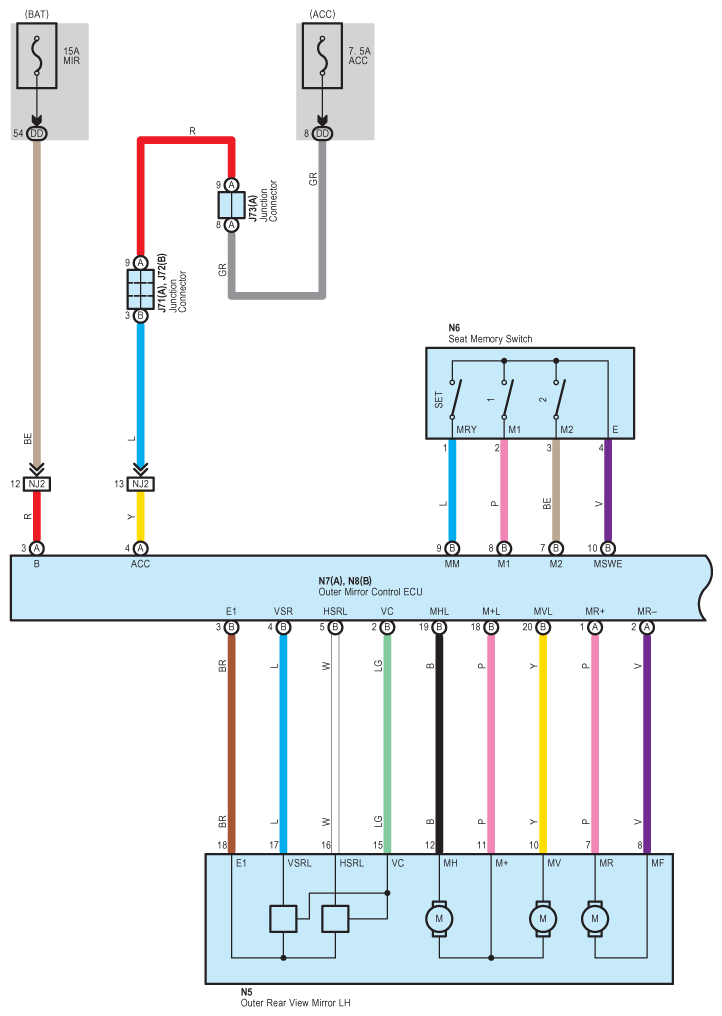

Fig 1: Remote Control Mirror System Wiring Diagram (W/ Seat Position Memory; 1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

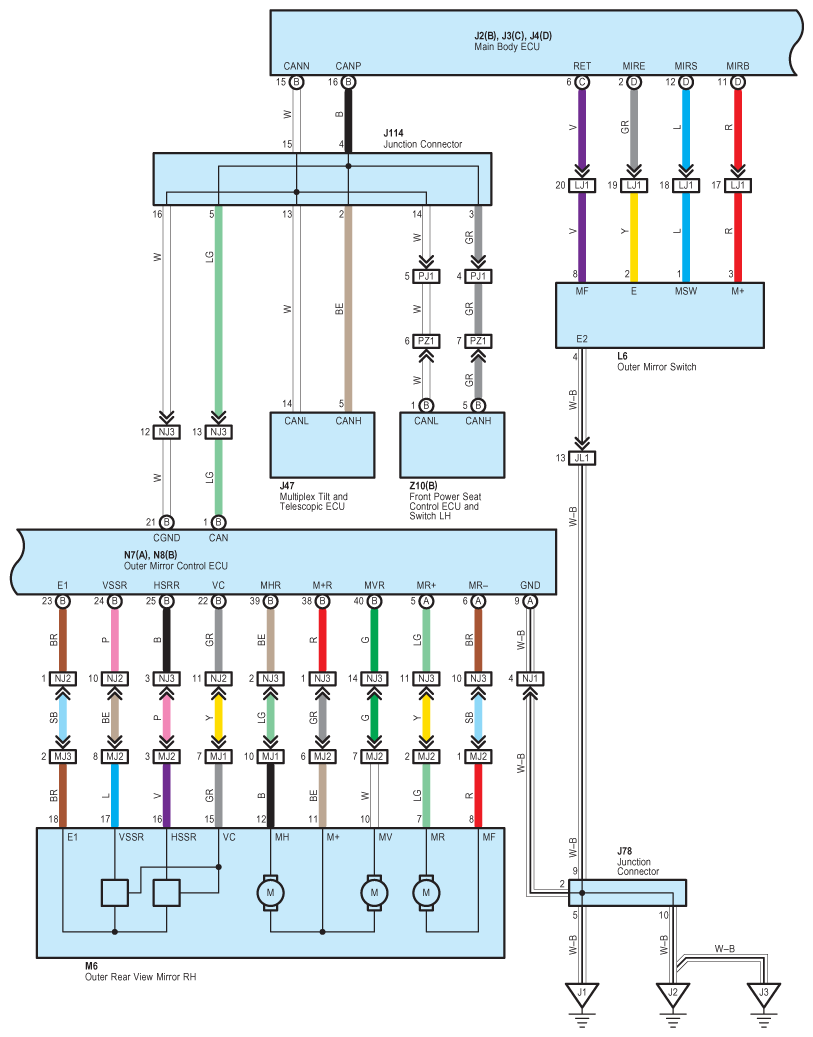

Fig 2: Remote Control Mirror System Wiring Diagram (W/ Seat Position Memory; 2 Of 3)

Fig 3: Remote Control Mirror System Wiring Diagram (W/ Seat Position Memory; 3 Of 3)
