Power Window: Notes — 2012 Toyota Tundra Base, 4.6L Eng VIN M, 4WD Service Manual ~ LEMON Manuals

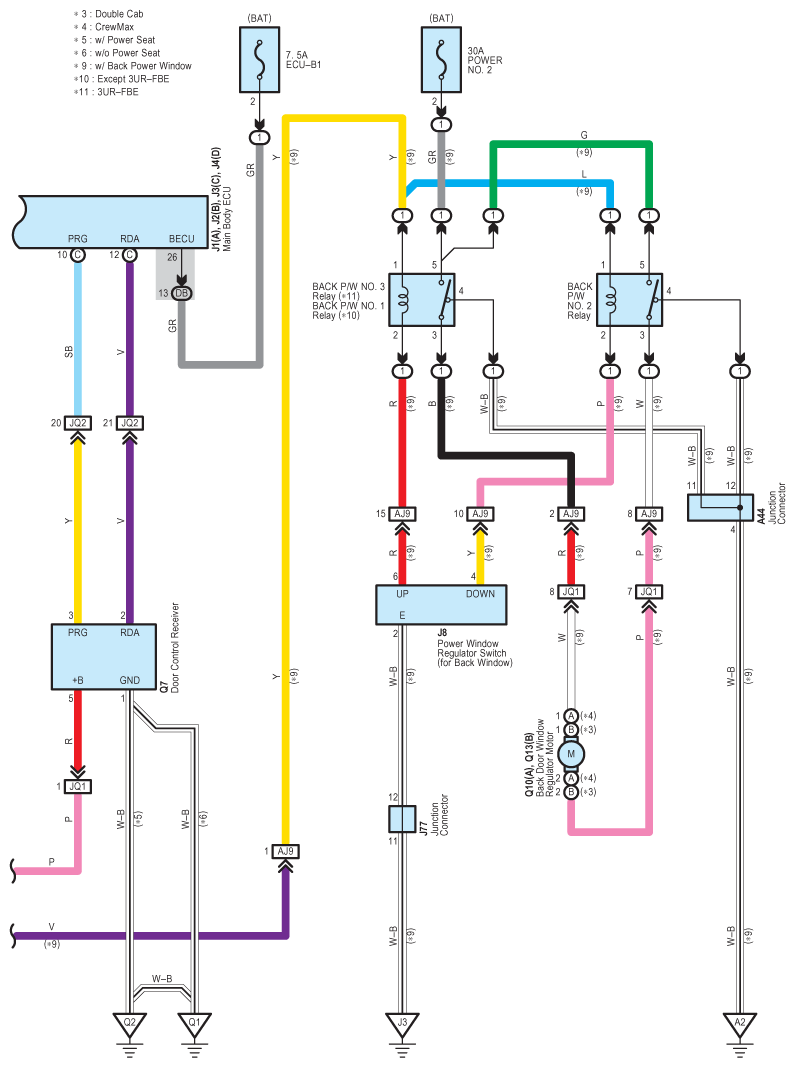

Fig 1: Power Window System Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

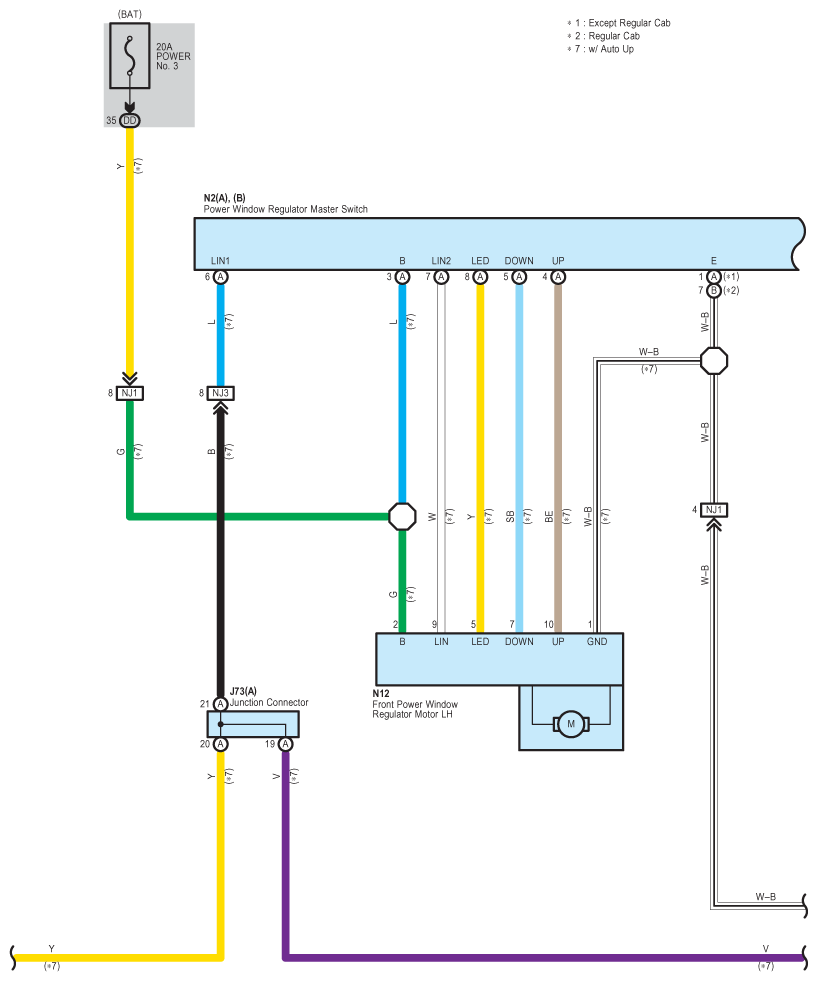

Fig 2: Power Window System Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

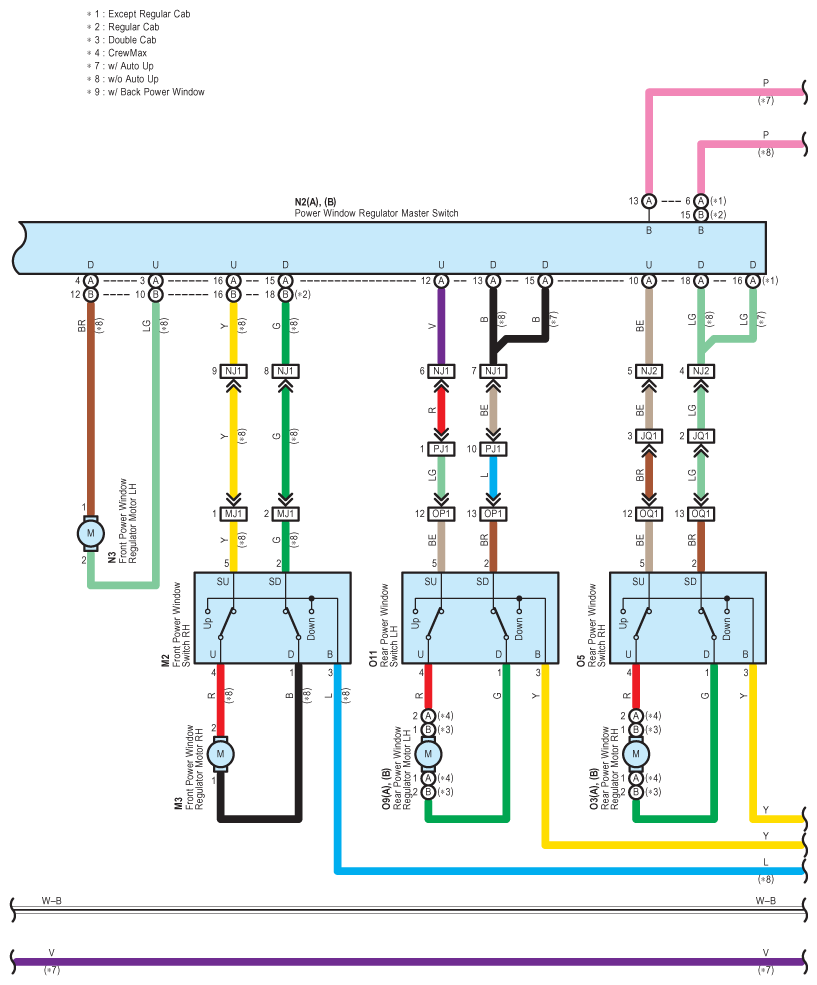

Fig 3: Power Window System Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

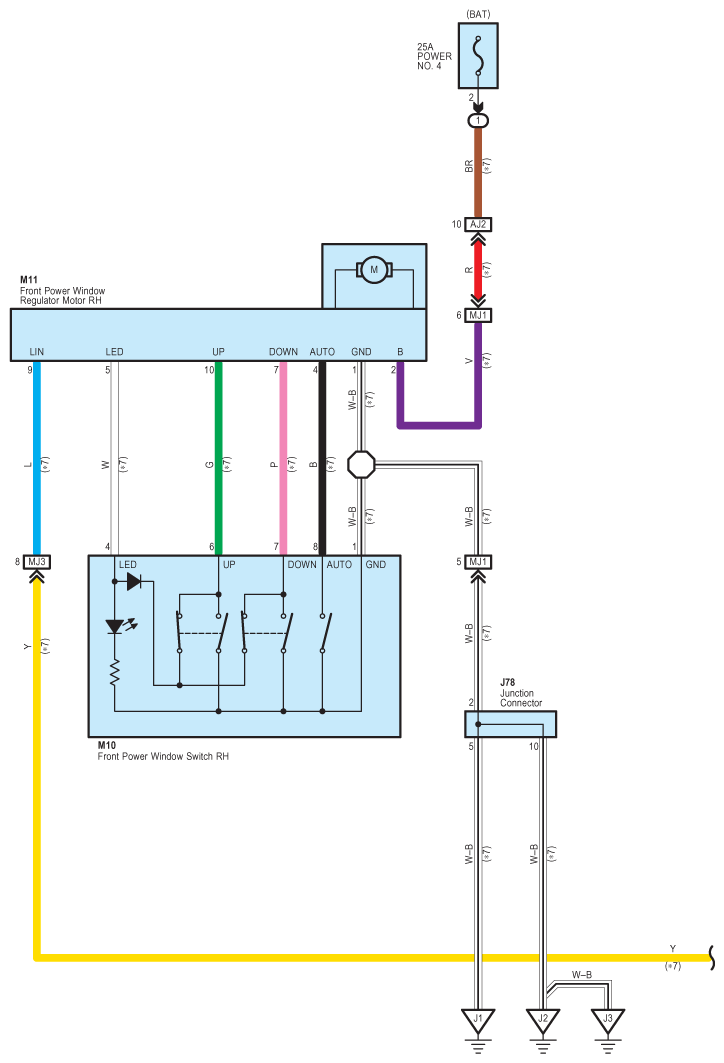

Fig 4: Power Window System Wiring Diagram (4 Of 5)

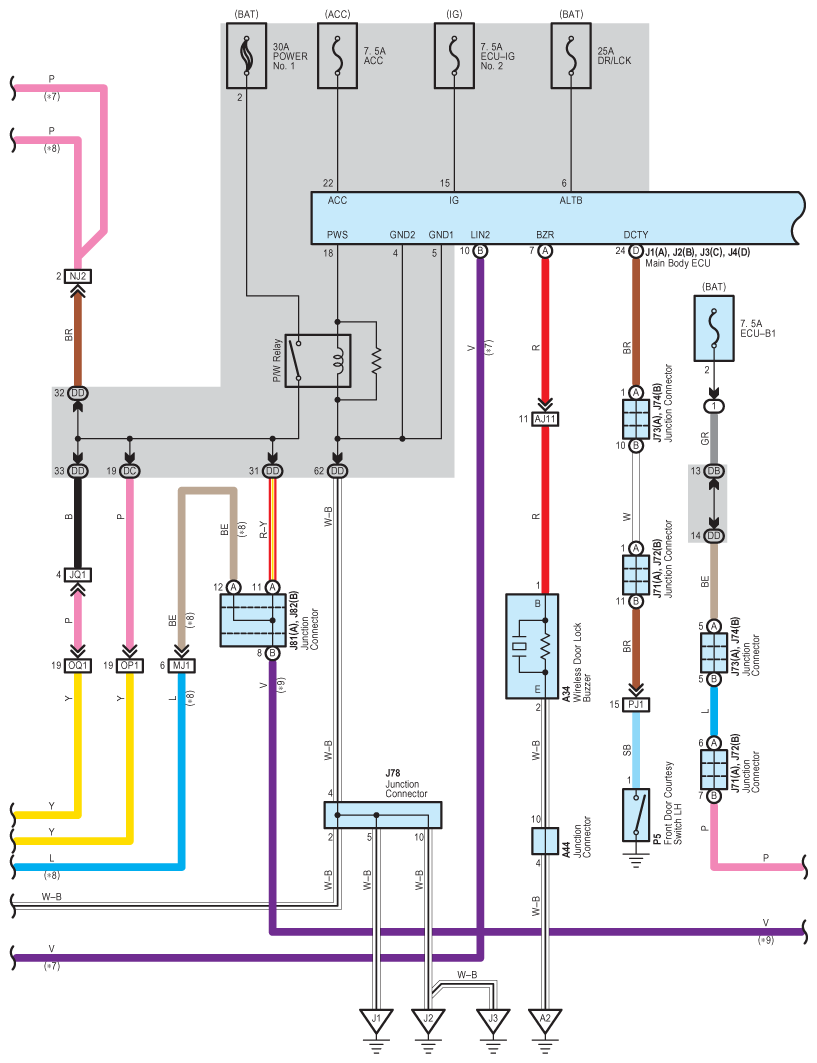

Fig 5: Power Window System Wiring Diagram (5 Of 5)
