Multi Mode 4WD: Notes

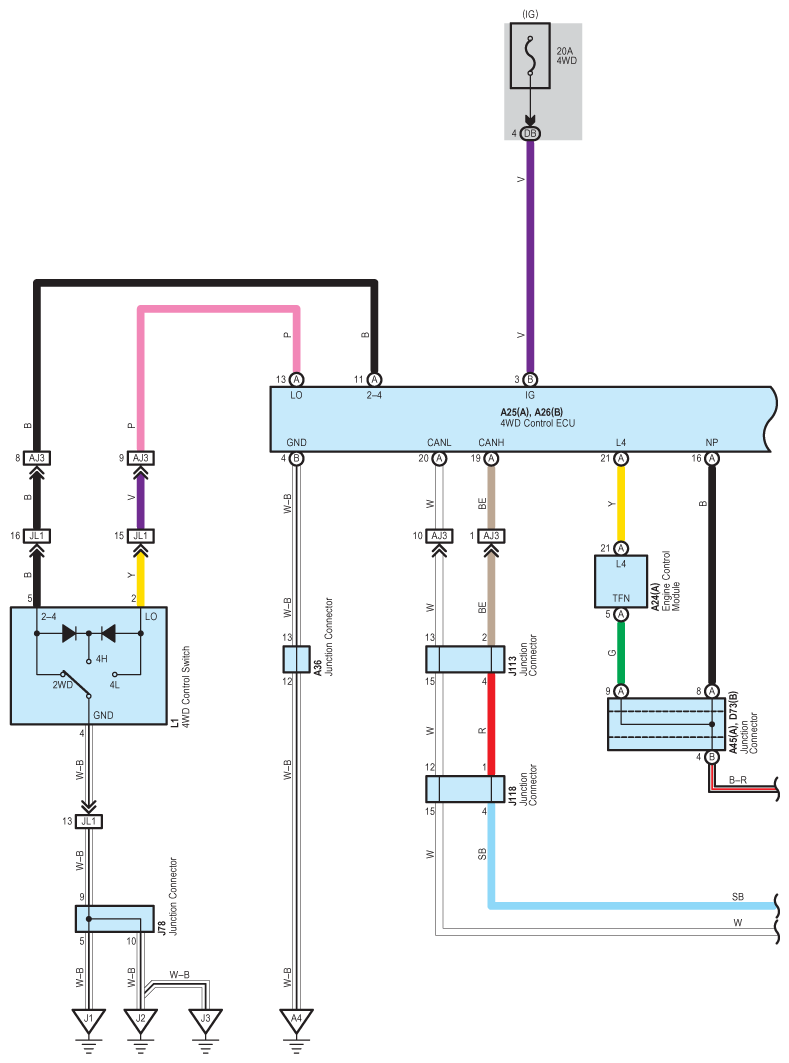

Fig 1: Multi Mode 4WD Wiring Diagram (1 Of 3)
G08862010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

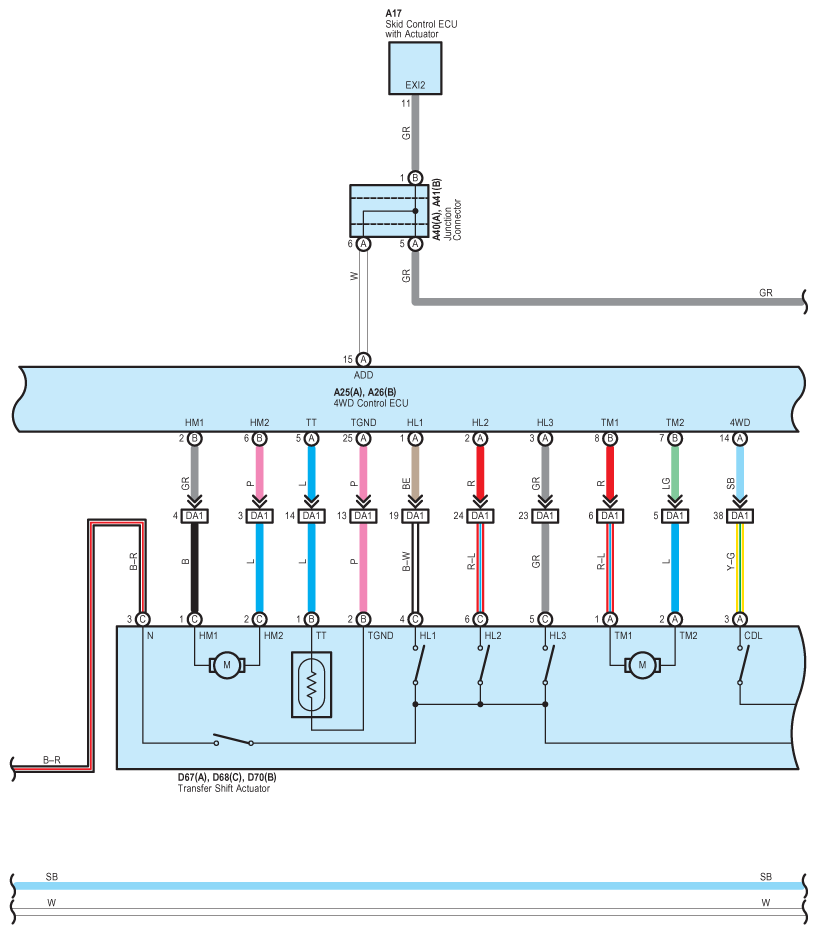

Fig 2: Multi Mode 4WD Wiring Diagram (2 Of 3)
G08862011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

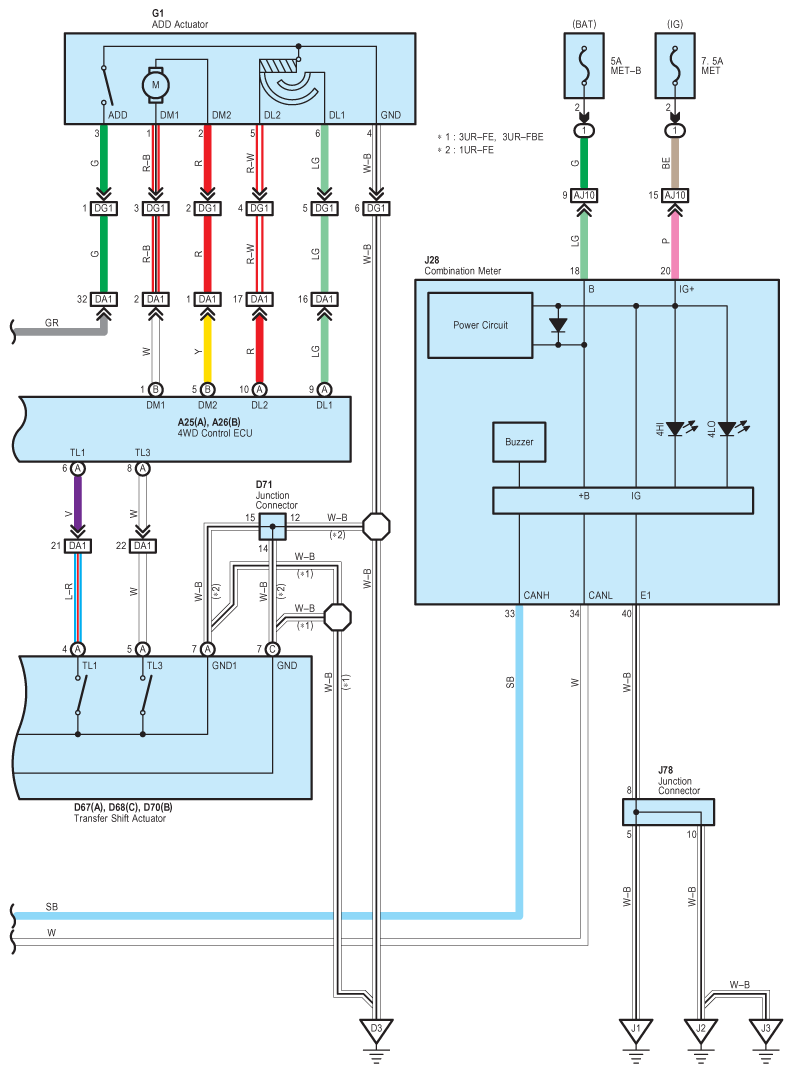

Fig 3: Multi Mode 4WD Wiring Diagram (3 Of 3)
G08862012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
