Mirror Heater: Notes

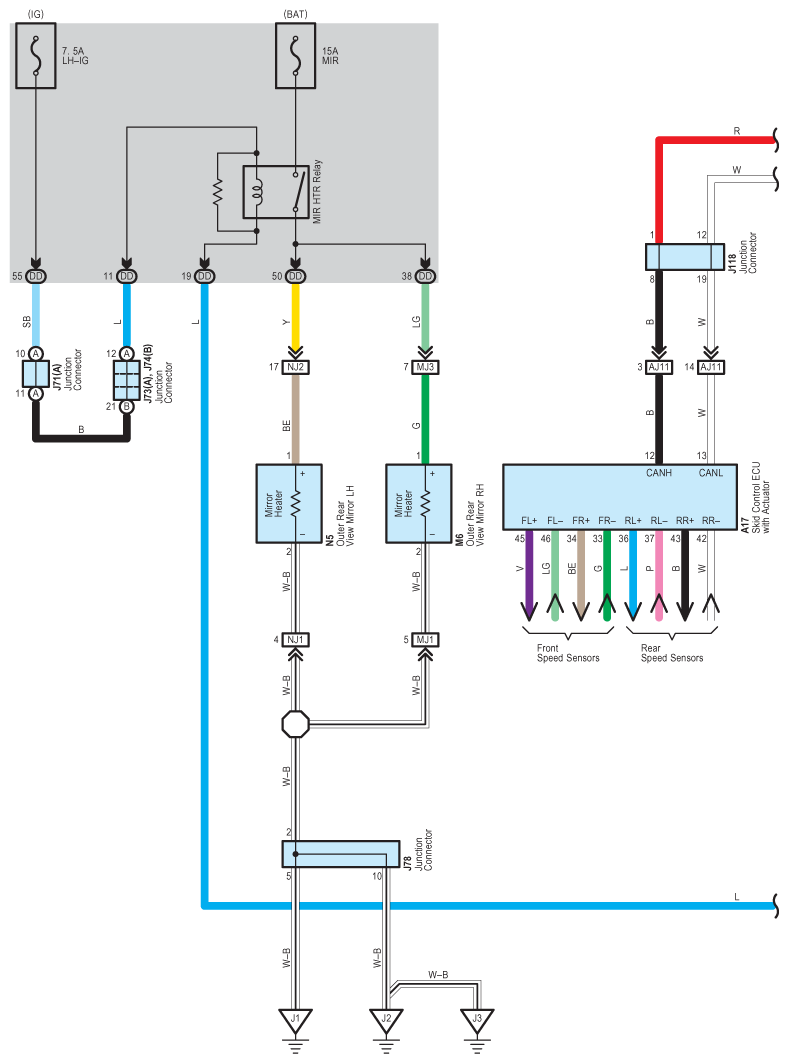

Fig 1: Mirror Heater Wiring Diagram (1 Of 2)
G08862045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

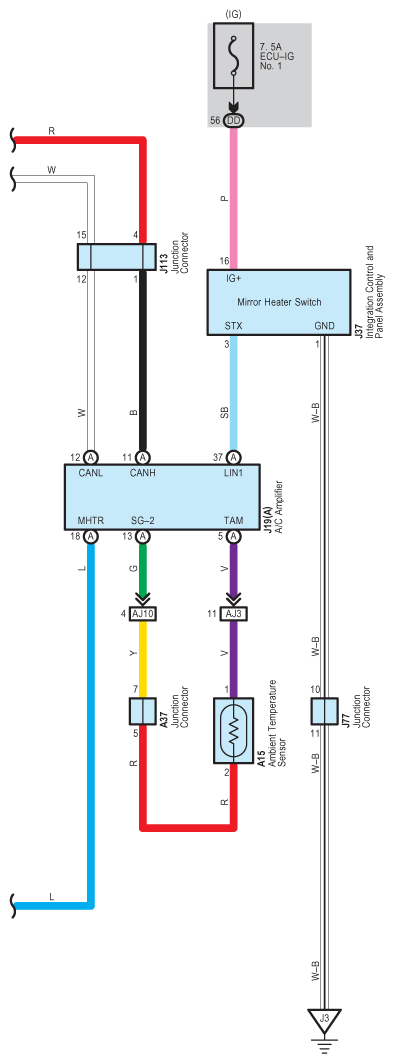

Fig 2: Mirror Heater Wiring Diagram (2 Of 2)
G08862046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
