OEM System Circuits: Illumination: Notes

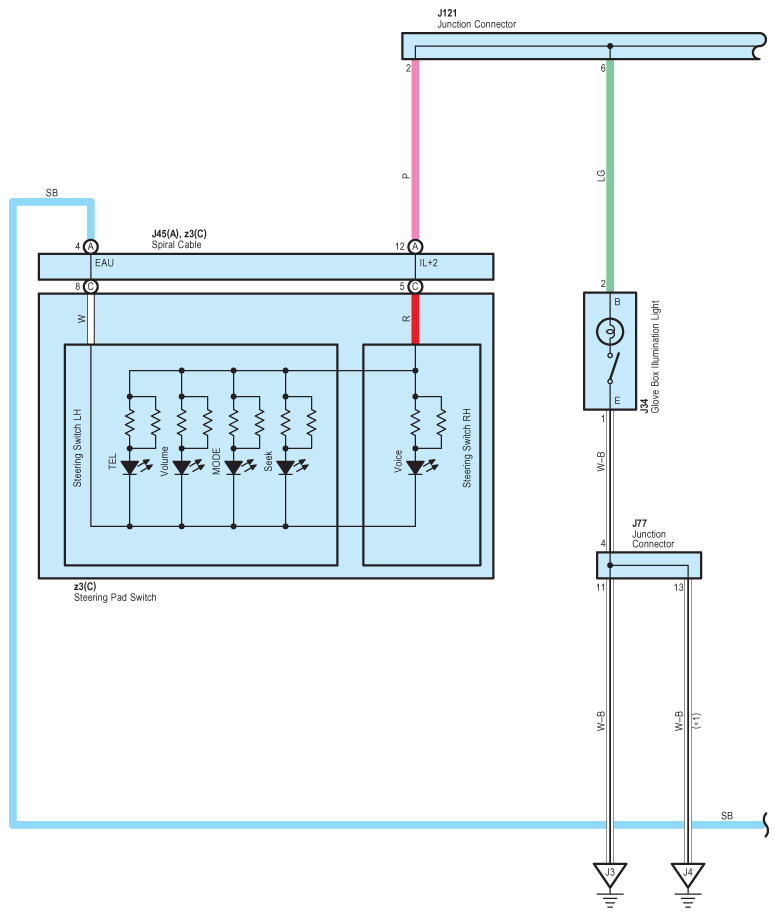

Fig 1: Illumination Wiring Diagram (1 Of 7)

G08861926

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

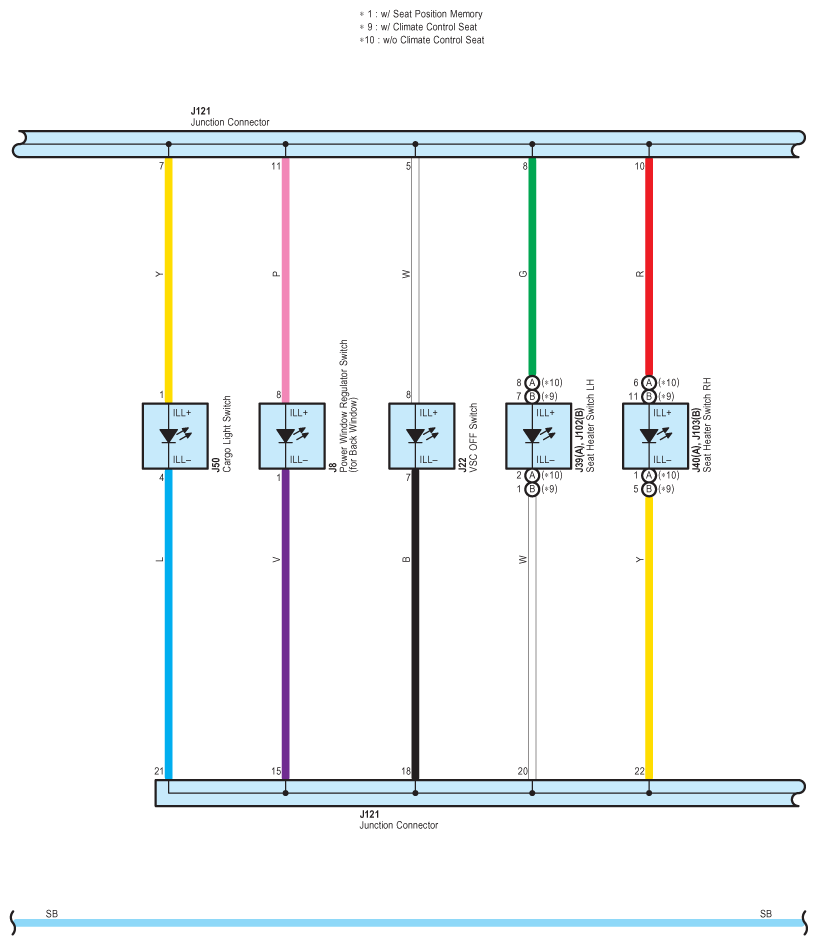

Fig 2: Illumination Wiring Diagram (2 Of 7)

G08861927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

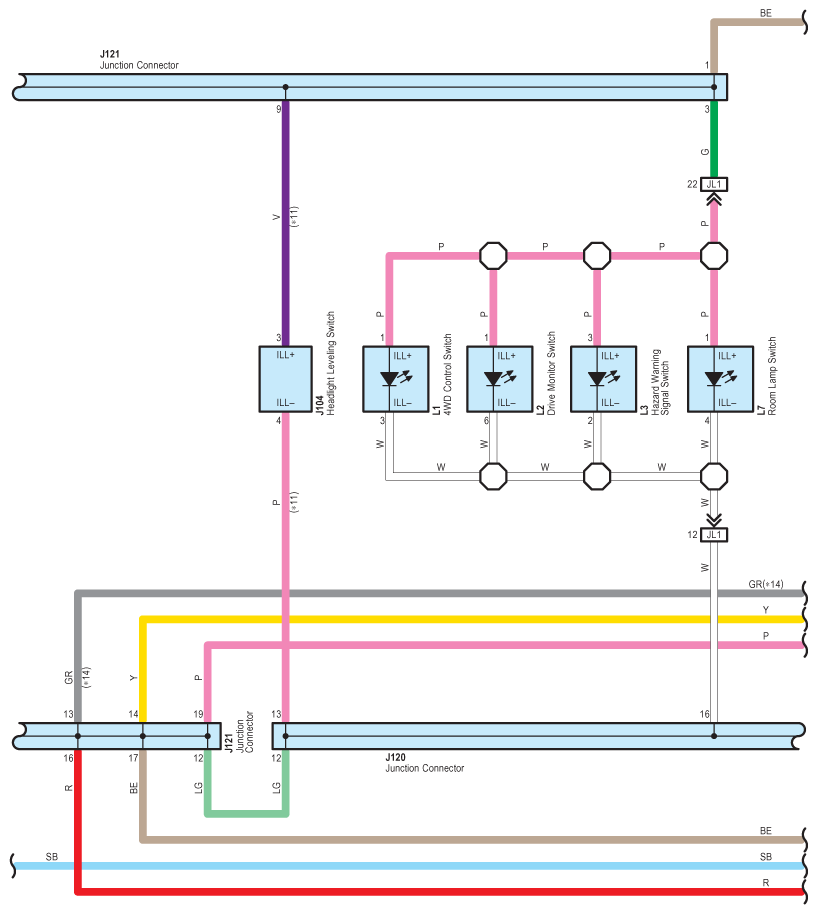

Fig 3: Illumination Wiring Diagram (3 Of 7)

G08861928

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

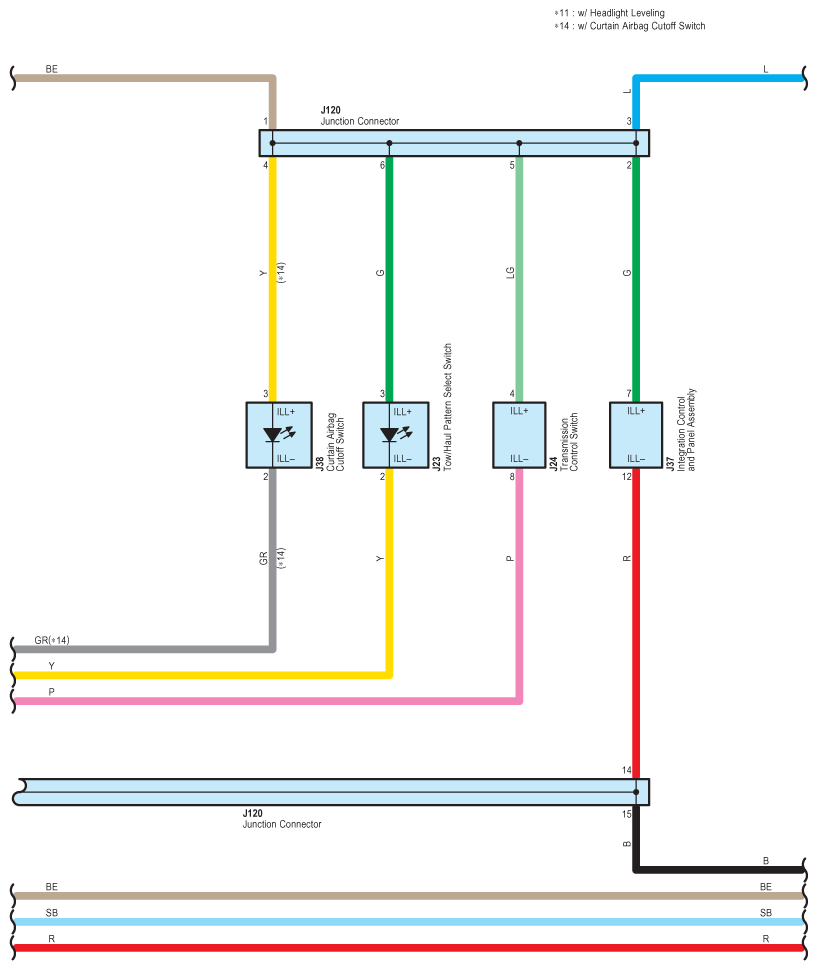

Fig 4: Illumination Wiring Diagram (4 Of 7)

G08861929

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

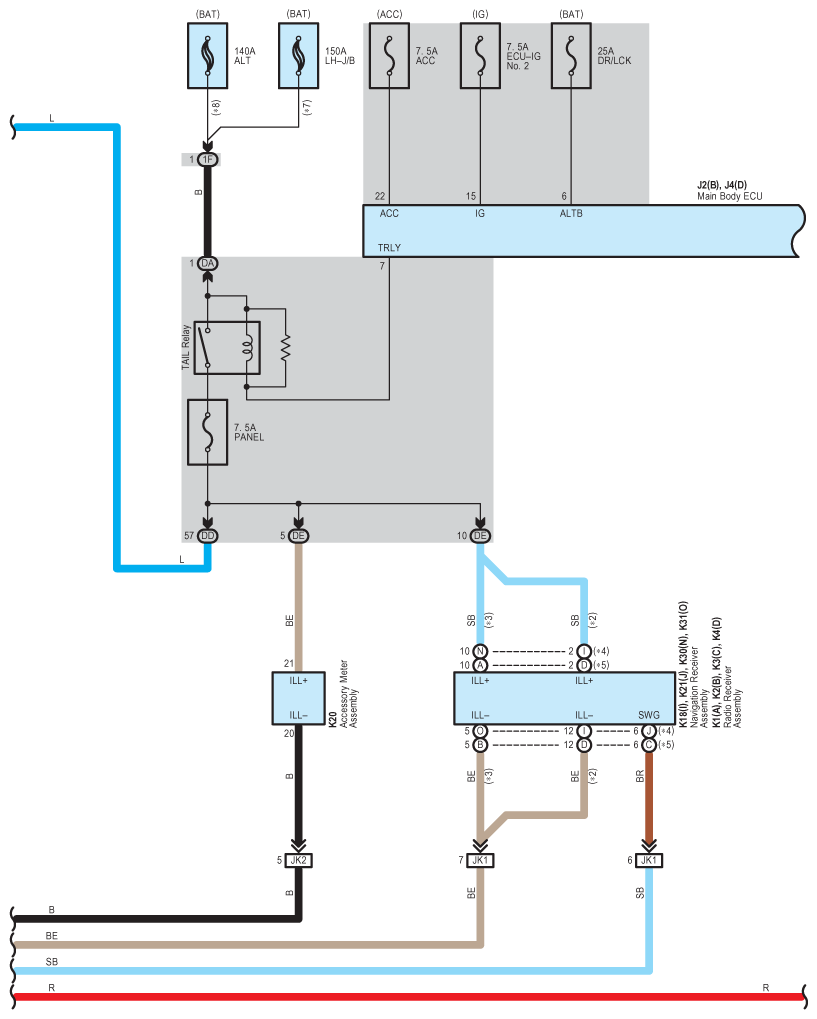

Fig 5: Illumination Wiring Diagram (5 Of 7)

G08861930

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

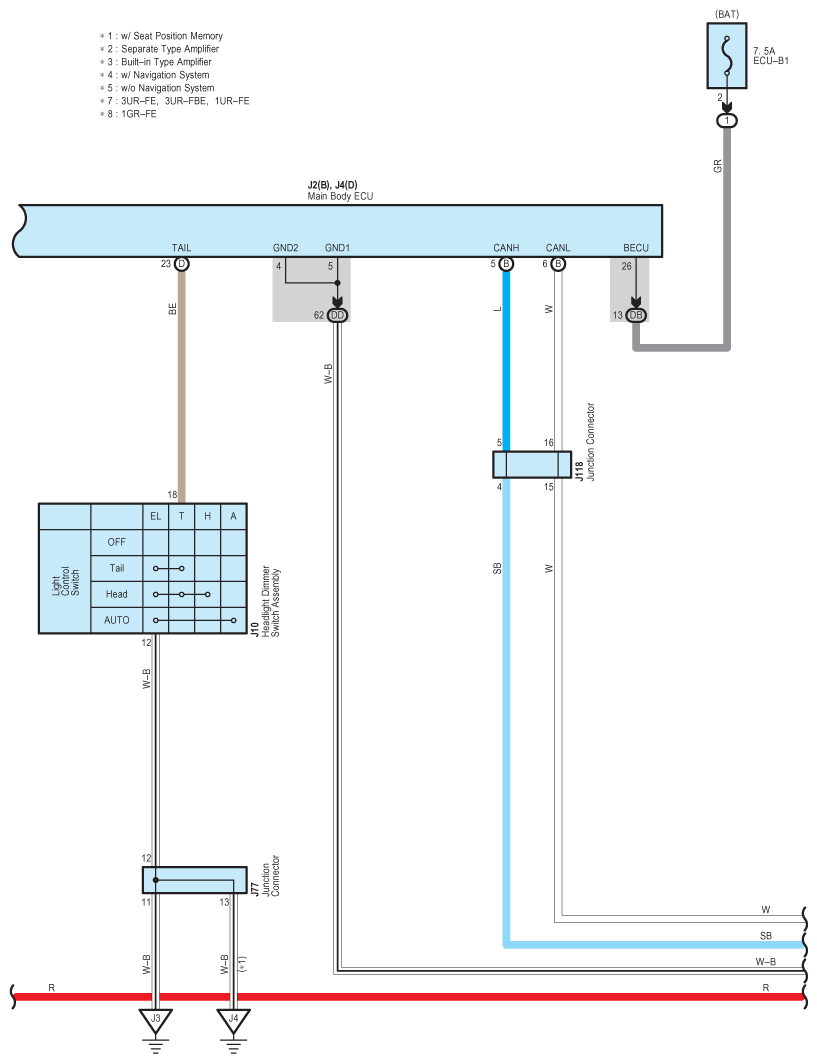

Fig 6: Illumination Wiring Diagram (6 Of 7)

G08861931

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

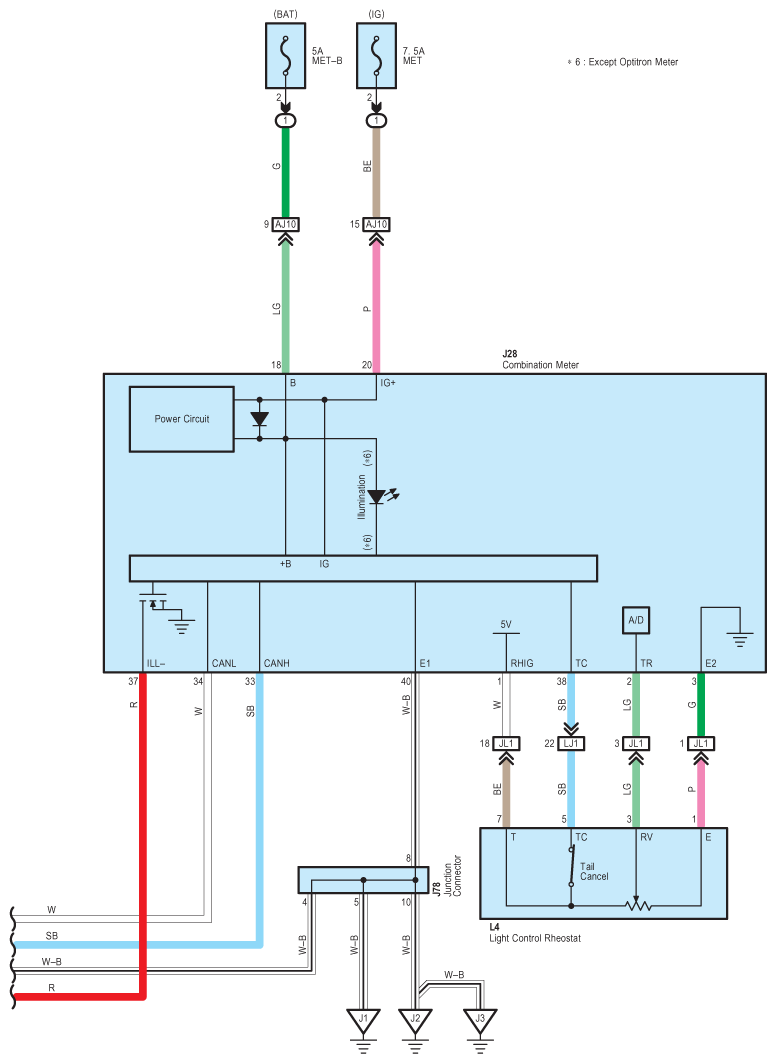

Fig 7: Illumination Wiring Diagram (7 Of 7)

G08861932

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
