OEM System Circuits: Horn: Notes

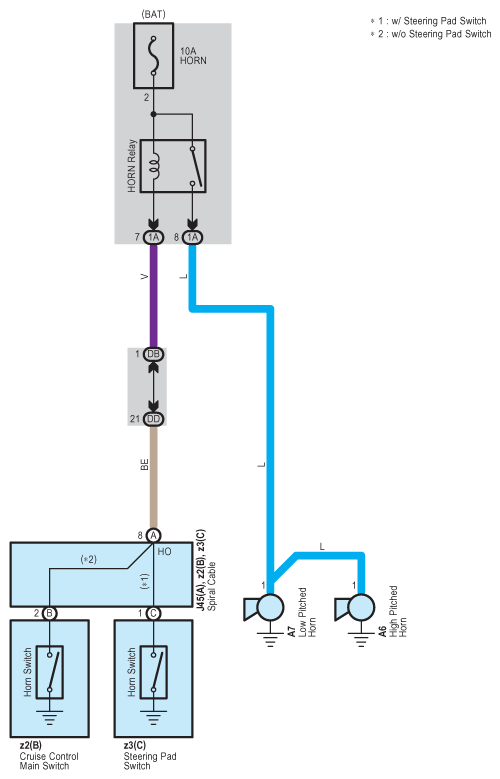

Fig 1: Horn System Wiring Diagram

G08862041

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
