Front Window Deicer: Notes

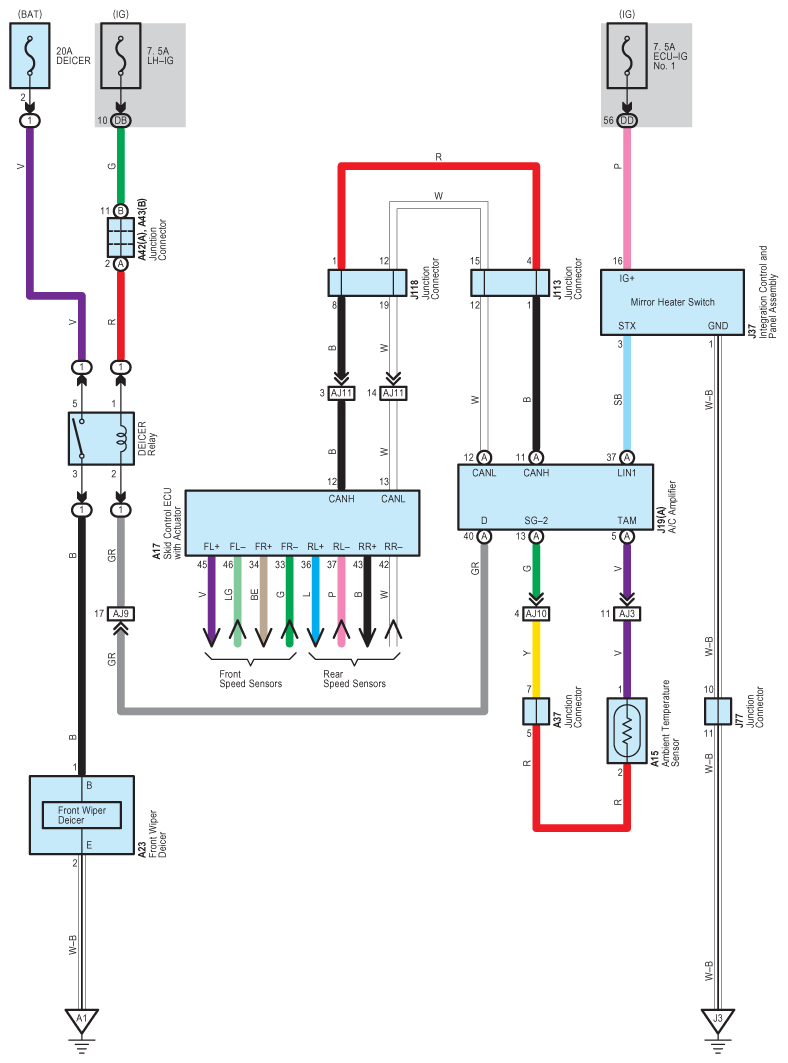

Fig 1: Front Window Deicer Wiring Diagram

G08862044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
