Front Fog Light: Notes

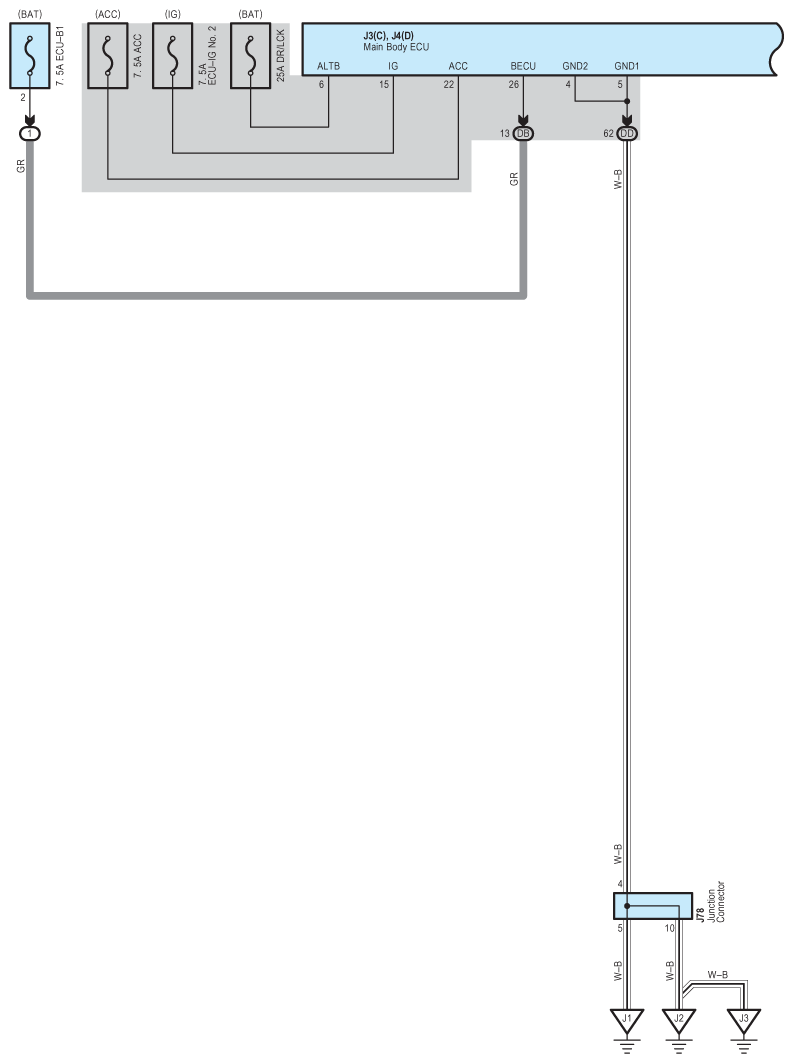

Fig 1: Front Fog Light Wiring Diagram (1 Of 3)
G08861919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

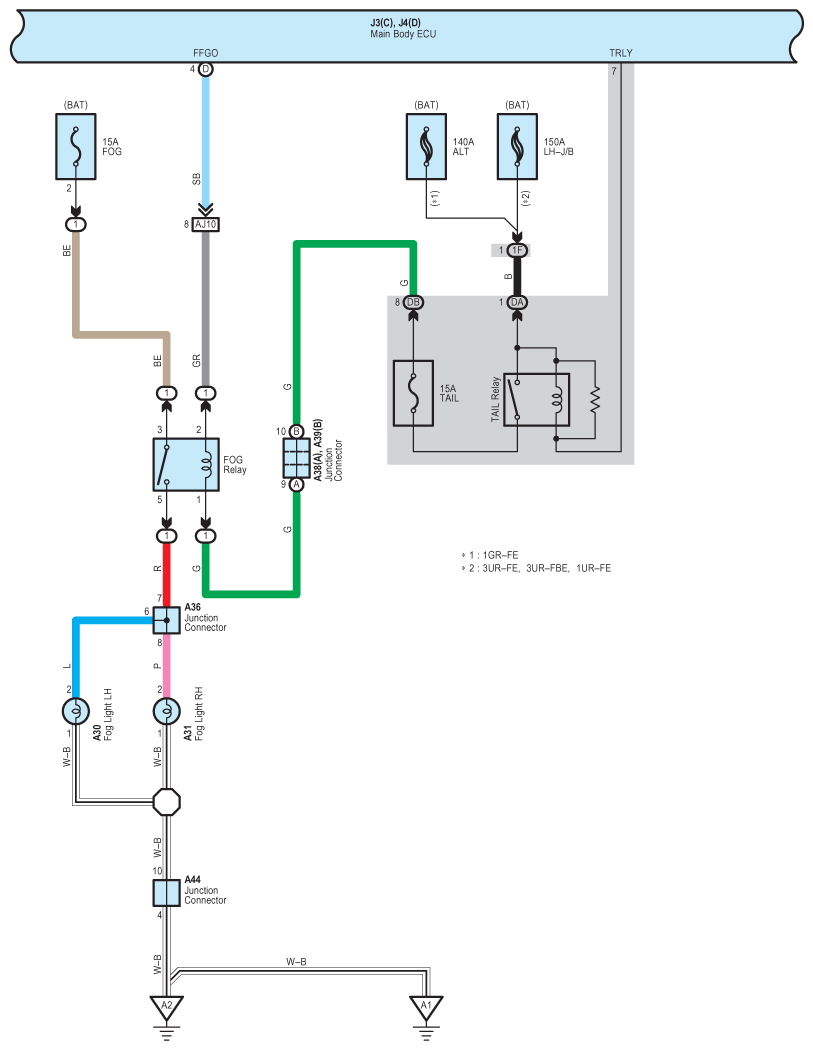

Fig 2: Front Fog Light Wiring Diagram (2 Of 3)
G08861920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

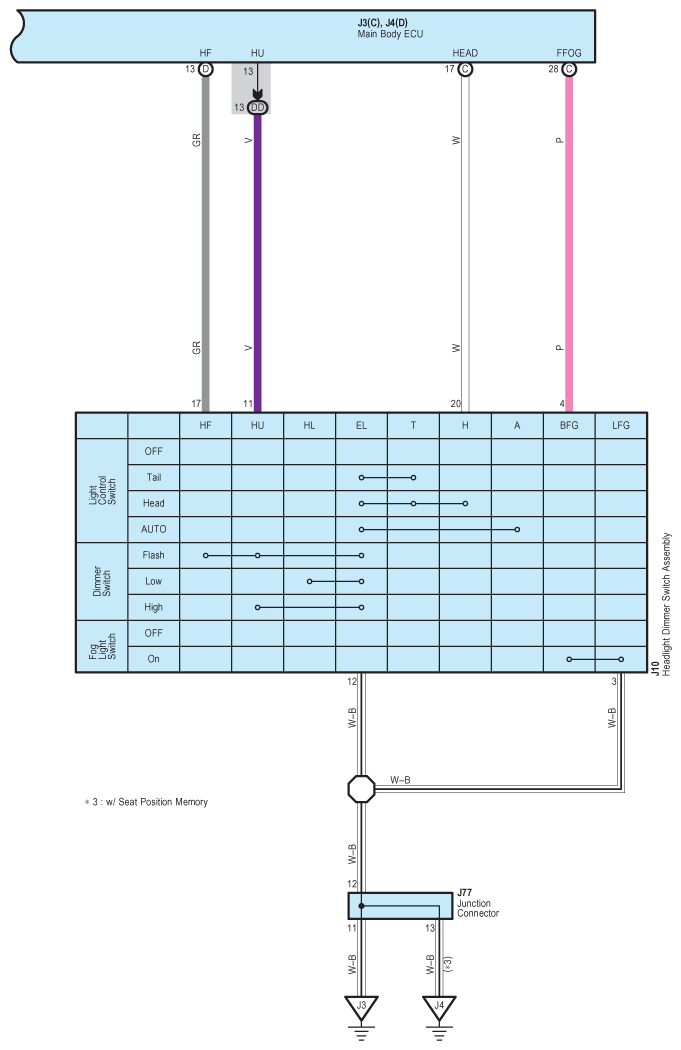

Fig 3: Front Fog Light Wiring Diagram (3 Of 3)
G08861921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
