Accessory Meter: Notes

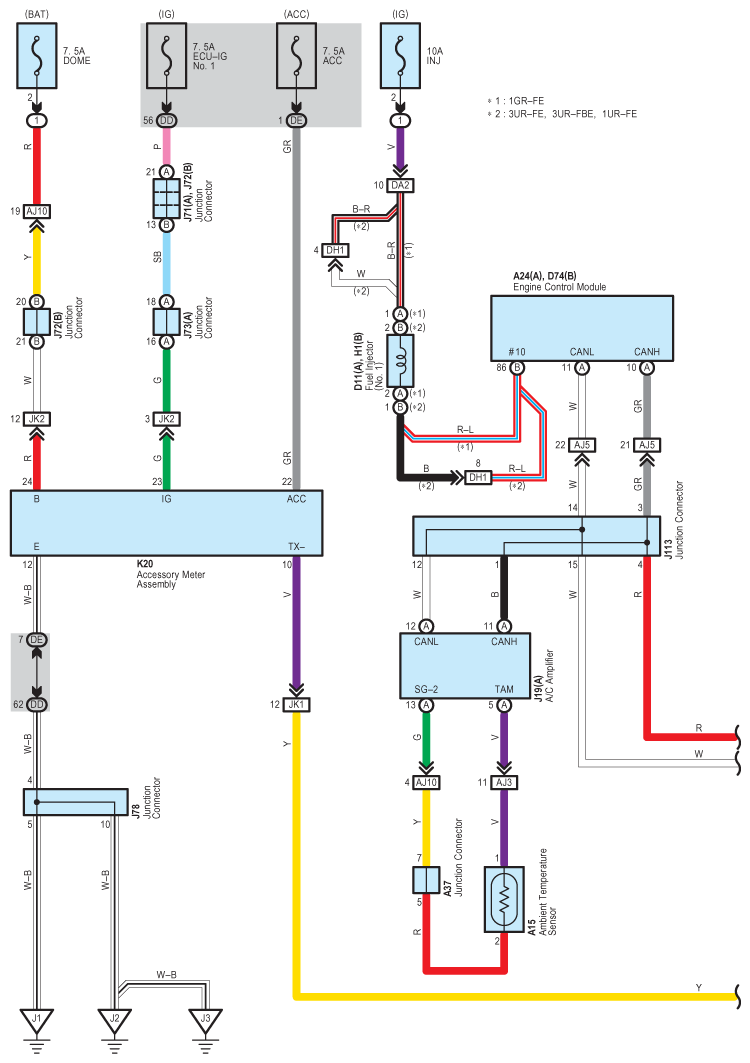

Fig 1: Accessory Meter System Wiring Diagram (1 Of 2)
G08862079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

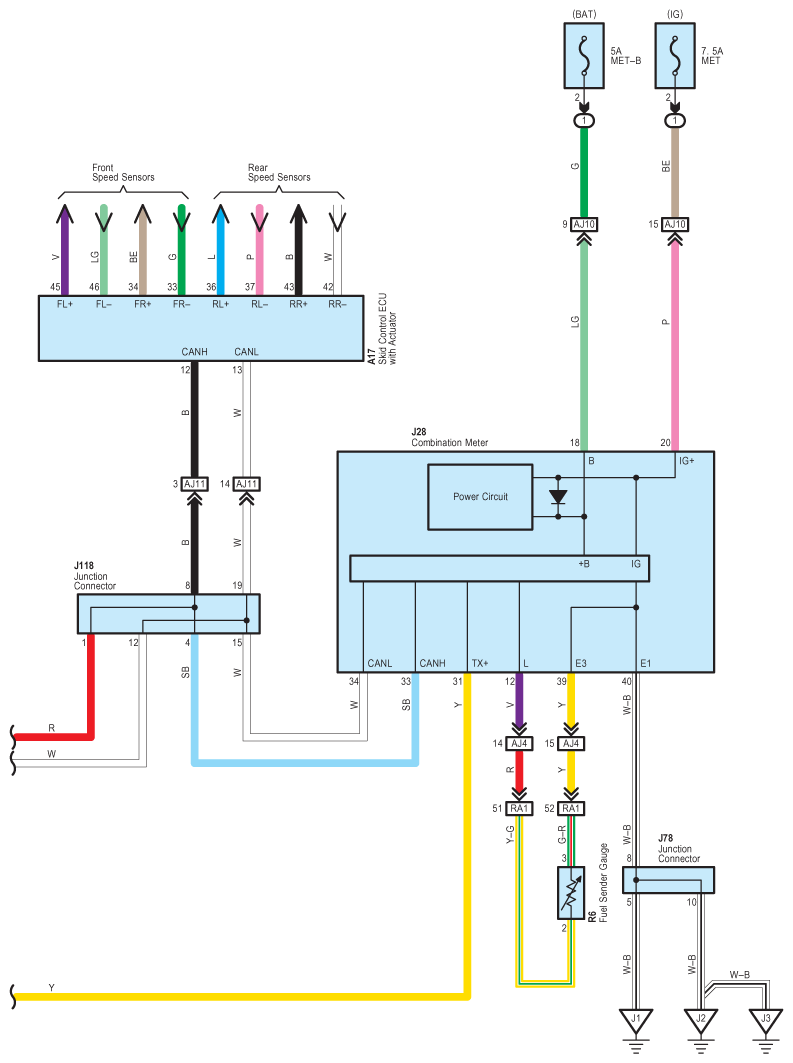

Fig 2: Accessory Meter System Wiring Diagram (2 Of 2)
G08862080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
