Engine Control System (1GR-FE) (Service Information)
>>
Throttle Body
>>
Components
>>
Illustration
Throttle Body: Components: Illustration

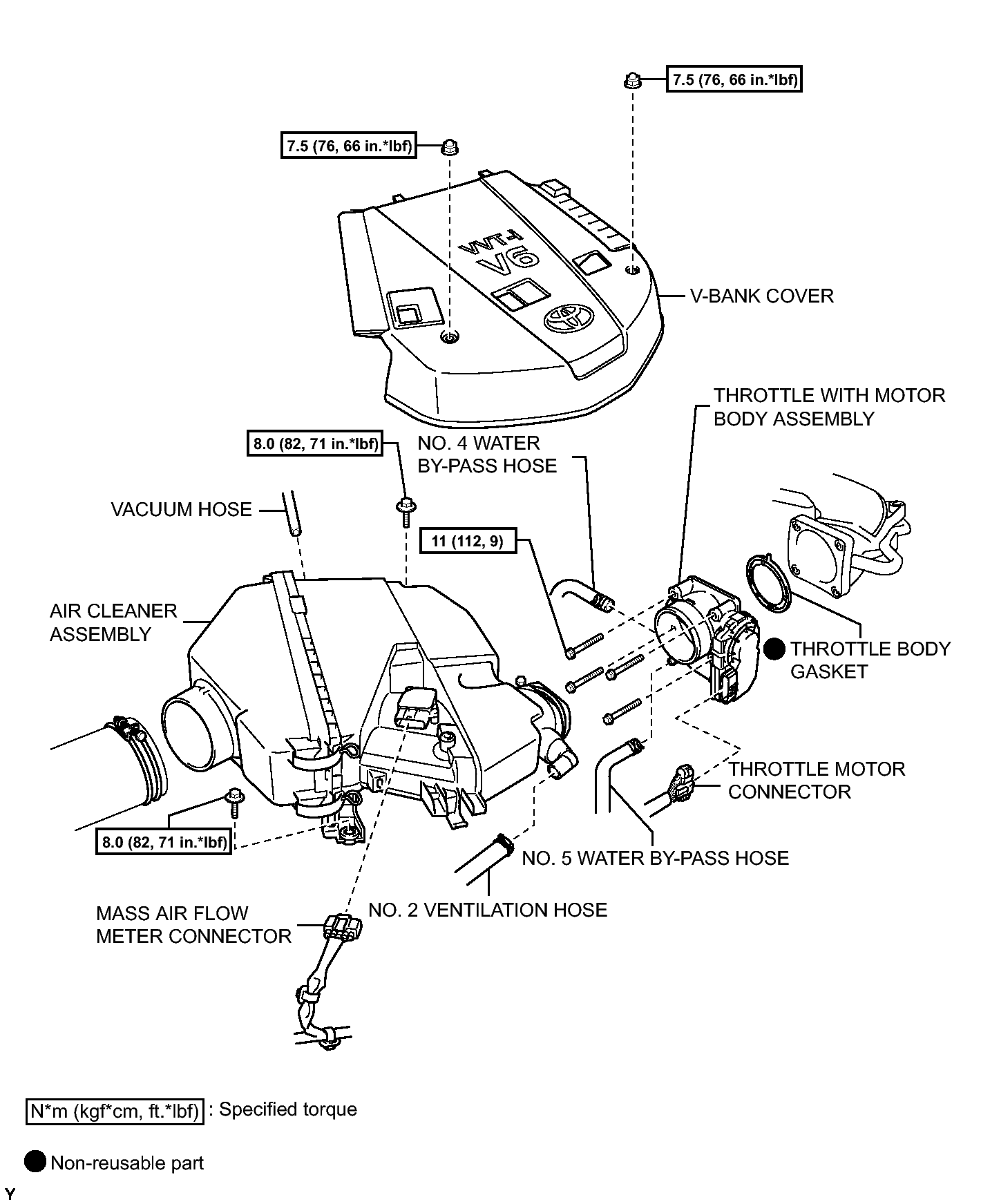

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
